PCI-7031
26Ppi111PP44
26Ppi111PP43

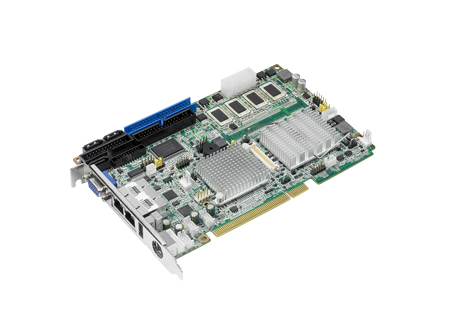

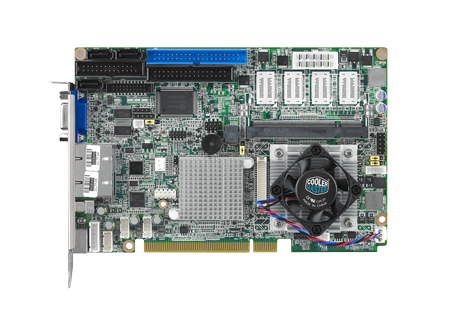

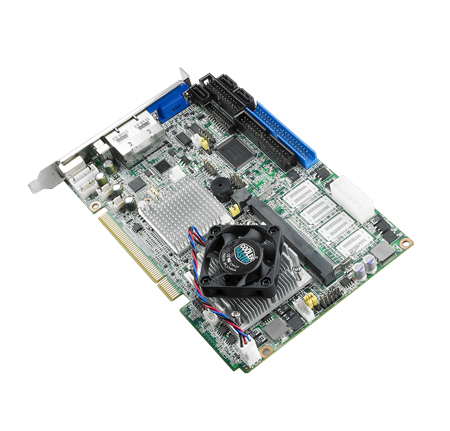

26Ppi811PP43 PCI-7031 is an Atom dual-core D510 / fanless N450 CPU based PCI-interface halfsize PICMG single board computer. With high performance Atom D510 dual-core computing power, it is ideal for intense data or graphic processing applications; with fanless Atom N450 CPU and on-board memory feature, it has ultra high reliability to resist heat, dust, vibration and shock in any application environment.
Features
- Ultra low power, fanless Intel® Atom™ processor N450 CPU and 1 GB onboard DDR2 667 memory (Only for N SKU)
- Dual core high performance D510 CPU and maximum 2 GB DDR2 667 memory socket (Only for D SKU)
- Fanless, 0 ~ 60°C (32 ~ 140°F) operation (PCI-7031N)
- VGA/LVDS dual video outputs
- Optional module for 4 x RS-485 w/auto-flow control
Overview
PCI-7031 is an Atom dual-core D510 / fanless N450 CPU based PCI-interface halfsize PICMG single board computer. With high performance Atom D510 dual-core computing power, it is ideal for intense data or graphic processing applications; with fanless Atom N450 CPU and on-board memory feature, it has ultra high reliability to resist heat, dust, vibration and shock in any application environment.
PCI-7031 is designed with an Intel© Atom™ D510/N450 CPU and ICH8M I/O control hub. The Atom D510 dual core CPU brings new generation computing capability into the half-size SBC application field. Compact size, low power consumption (Total power consumption = 17.796 W) and dual-core parallel computing power and maximum 2 GB of DDR2 667 MHz memory capacity makes the PCI-7031D a powerful small form-factor computer platform for modern industrial applications that require high computing power. The fanless Atom N450 CPU (Total power consumption = 15.264 W) and on-board memory design eliminate moving fan parts and memory socket connections; this makes PCI-7031N ultra reliable to conduct its mission under various kinds of high-temperature, vibrating, shocking and dusty harsh environments.
PCI-7031 has an integrated graphic core of Intel Embedded Gen3.5+ graphic technology with 224 MB shared memory. This feature makes the PCI-7031 is capable of handling complex and intense 2D/3D graphic processing without an add-on graphic card; its VGA and LVDS dual video outputs also makes it suitable for applications requiring dual display or digital panel display capabilities.
PCI-7031 is rich in I/O interfaces: it has three SATA ports (300 MB/sec) for mainstream SSD (solid state disk), HDD, and ODD connections, one legacy IDE port for the ODD connection. It also has a CF socket to support an economical, easy-to maintain SSD device. Additionally, the dual Gigabit Ethernet LANs with teaming functions offer strong networking capability; the two serial ports (COM ports) can be used as reliable legacy device control interfaces.
| Manuals | |
|---|---|
| pci-7031_user_manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PCI-7031_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel Atom N450 |
| Clock Speed | 1.66 GHz |
| Processor Misc. | Chipset: Intel® ICH8M L2 Cache: 512KB BIOS: AMI 16Mb SPI Flash |
| Memory | |
|---|---|
| RAM | 1GB onboard DDR2 667MHz |
| BIOS/ Bootloader | AMI 16Mb SPI Flash |
| Memory Misc. | Socket: No socket for N SKU (uses Onboard); 200-pin SODIMM Socket x 1 for D SKU / Max 2Gb |
| Primary IO | |
|---|---|
| Disk Interface | 1x EIDE supporting 2 IDE devices |
| Audio | Intel High Definition audio interface (requires a audio extension module P/N: PCA-AUDIO- HDA1E) |
| Video Out | Intel ICH8M CRT/LVDS |
| Ethernet | 2x RJ45 10/100/1000 Mbps |
| USB | 7x Ports on the SHB |
| Serial Ports | Two RS-232 onboard pin-headers, plus four four RS-485 ports with auto-flow control by module (Optional P/N: PCA-COM485-00A1E) |
| Primary I/O Misc. | SATA interface: Supports three SATA disk drives
|
| Secondary IO | |
|---|---|
| LPT Port | Yes
|
| PS/2 | Yes
|
| Display | |
|---|---|
| Resolution | VGA: Supports up to SXGA 1400 x 1050 @ 60 Hz for N SKU - LVDS: Supports 18-bit single channel and up to WXGA 1366 x 768 or 1280 x 800 |
| CRT-VGA Interface | 1x 15-pin VGA D-sub connector |
| LVDS Interface | 1x Onboard LVDS pin header (supports single channel 18-bit LVDS) |
| Multi-Display | CRT + LVDS support extended mode and clone mode |
| Expansion | |
|---|---|
| Bus Expansion | Four 32 bit/33 MHz PCI Masters to Backplane |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 7.3" ×4.8" (185mm × 121mm) |
| Weight | 0.5 kg |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCI-7031D | PCI-7031D, ATOM D510 Pineview D slot SBC, SODIMM socket, w/ dual GbE, LVDS | $320.00 |
| PCI-7031N | PCI-7031N, Atom N450 PCI Slot 1GB DDR2 Onboard/VGA/LVDS/ Dual GbE/SATA/COM | $349.00 |
