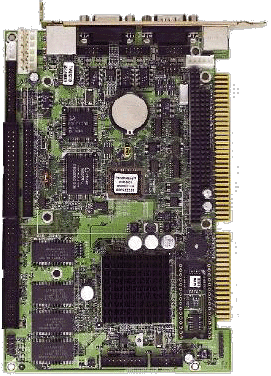

HSB-440I
15hpi811HH23 The HSB-440I is equipped with the multi-functioned SystemOnChip STPC Atlas. This Fanless processor speed runs at a speed of 133MHz and offers integrated display control functions. Its has a display resolution maximum 1024 x 768 high quality for CRT and 800 x 600 for LCD, up to 18-bit TFT LCDs are supported.
Features
- Onboard STPC Fanless Atlas 133 MHz Processor
- 18-bit TTL TFT LCD & CRT Video
- Supports PC/104 Bus Interface
- Supports Type II Compact Flash and DiskOnChip
- 4 COM / 2 USB / Digital I/O
- 64MB RAM Onboard
Overview
The HSB-440I is equipped with the multi-functioned SystemOnChip STPC Atlas. This Fanless processor speed runs at a speed of 133MHz and offers integrated display control functions. Its has a display resolution maximum 1024 x 768 high quality for CRT and 800 x 600 for LCD, up to 18-bit TFT LCDs are supported.
This card supports Watchdog timer protection. In addition it come equipped with 64 MB memory on board, four serial ports, two USB ports and one parallel port This board also supports one CompactFlash™ card to be used in place of or in conjunction with a hard drive. EMAC provides several size options for CompactFlash™ cards up to over a Gigabyte of storage.
Specifications
| Processor | |
|---|---|
| CPU | ST Fanless ATLAS |
| Clock Speed | 133 MHz |
| Memory | |
|---|---|
| RAM | 64 MB SDRAM On-board |
| Primary Flash | 1x CompactFlash™ card Type II |
| BIOS/ Bootloader | AWARD 256KB Flash BIOS |
| Primary IO | |
|---|---|
| Disk Interface | 1x FDD, 1x EIDE (UDMA 33) |
| Video Out | Built-In CRT/LCD Shared |
| Ethernet | 10/100Base-T Ethernet IEEE 802.3u Realtek RTL8139D |
| USB | 2x USB |
| Serial Ports | 3x RS232, 1x RS232/485 |
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Display | |
|---|---|
| Resolution | 800x600 @ 18bpp colors for LCD |
| CRT-VGA Interface | Up to 1024x768 @ 16bpp colors for CRT |
| Multi-Display | Supports CRT and LCD simultaneous display |
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, FreeRTOS |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 7.3" ×4.8" (185mm × 121mm) |
| Weight | 0.7 g (0 lbs) |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Voltage | 5 V |
| Typical Current | 1.6 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| HSB-440I-0 | Half-Size atlas ISA slot CPU card W/ LAN, CF | Call |
| HSB-440I-01 | Half-Size atlas ISA slot CPU card | Call |
