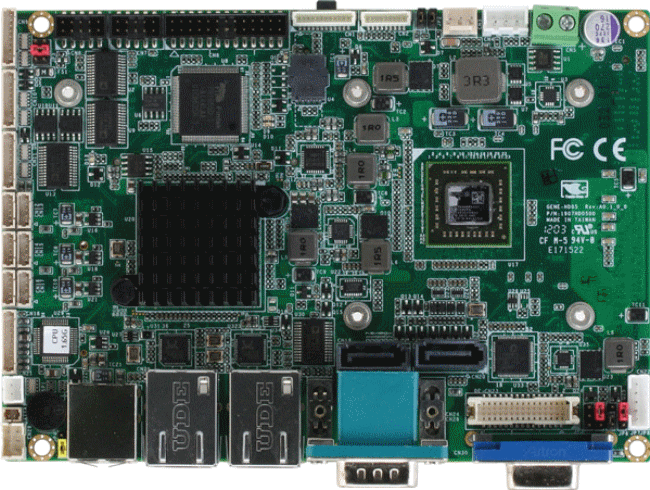

GENE-HD05


  • Onboard AMD® G-Series TM T56N/T40E/T40R Processor
  • Up to 4GB SODIMM DDR3 1066/1333(T56N)
  • USB2.0 x 8, COM x 4, Parallel x 1, 8-bit Digital I/O
  • Gigabit Ethernet x 2

The GENE-HD05 uses an onboard AMD® G-series™ T56N/T40E/T40R Processor and features up to 4GB DDR3 SODIMM 1066/1333 system memory. The GENE-HD05adopts an AMD® A50M chipset to achieve excellent performance. In addition the GENE-HD05 deploys a Realtek® 8111E Ethernet chip to feature two RJ-45 ports. The display chipset on the GENE-HD05 supports 18/24-bit dual/single channel LVDS LCD and HDMI. In addition to the Mini Card expansion, this model has two SATA and one CFast™ for storage. This board has eight USB 2.0 ports, four COM ports, 8-bit Digital I/O for flexible I/O expansion.

Features


  • Onboard AMD® G-Series TM T56N/T40E/T40R Processor
  • AMD A50M
  • SODIMM DDR3 1066/1333(T56N) up to 4GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • CRT, 18/24/36/48-bit LVDS, HDMI
  • 2CH HD Audio
  • SATA 3.0Gb/s x 2, CFastTM x 1, mSATA x 1 (Config. by BIOS)
  • USB2.0 x 8, COM x 4, Parallel x 1, 8-bit Digital I/O
  • Onboard 4/5-wire Resistive Touch Screen Controller
  • Mini Card x 1 (Config. by BIOS)
  • +12V Only Operation



Overview


The GENE-HD05 uses an onboard AMD® G-series™ T56N/T40E/T40R Processor and features up to 4GB DDR3 SODIMM 1066/1333 system memory. The GENE-HD05adopts an AMD® A50M chipset to achieve excellent performance. In addition the GENE-HD05 deploys a Realtek® 8111E Ethernet chip to feature two RJ-45 ports. The display chipset on the GENE-HD05 supports 18/24-bit dual/single channel LVDS LCD and HDMI. In addition to the Mini Card expansion, this model has two SATA and one CFast™ for storage. This board has eight USB 2.0 ports, four COM ports, 8-bit Digital I/O for flexible I/O expansion.

Manuals
GENE-HD05_Manual_Rev.A_2nd_Ed.pdf
Data Sheets
GENE-HD05.pdf

Specifications


Processor
CPU
AMD G-Series T56N/ T40E/ T40R
Processor Misc.
  • Chipset: AMD A50M
  • I/O Chipset: Fintek F81886DG



Memory
RAM
Up to 4GB SODIMM DDR3 1066/1333(T56N)
BIOS/ Bootloader
AMI Plug & Play SPI BIOS - 4MB Flash
Memory Misc.

Memory is UP to 4GB

Primary IO
GPIO
8-bit Digital I/O (Programmable, 4-in & 4-out)
Disk Interface
SATA 3.0Gb/s x 2 CFastTM x 1, mSATA x 1 (co-lay with Mini Card (Config. by BIOS))
Audio
Line-in/Line-out/Mic-in
Video Out
CRT/ LVDS/ HDMI
Ethernet
Realtek 8111E for 10/100/1000Base-TX RJ-45 x 2
USB
USB2.0 x 8
Serial Ports
RS-232 x 3, RS-232/422/485 (auto flow) x 1, SPP/EPP/ECP x 1
Secondary IO
LPT Port
Yes
PS/2
Yes
Display
Chipset
AMD T56N/T40E/T40R processorMemory Shared system memory up to 384MB
Resolution
Up to 2560 x 1600 (T56N) up to 1920 x 1200 (T40E/T40R)
LVDS Interface
18/24/36/48-bit up to 1920 x 1200
HDMI/DVI Interface
HDMI x 1 up to 1920 x 1200
Expansion
Bus Expansion
Mini Card x 1 (Config. by BIOS), LPC bus
Misc
Operating Systems
EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental


Dimensions
Size
5.75" ×4" (146mm × 101mm)
Weight
0.4 kg
Power Requirements
Typical Voltage
12 V
Typical Current
1.63 A
Power Misc.
  • H/W Status Monitoring :  Supports power supply voltages and temperature monitoring
  • Battery: Lithium batter







Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
