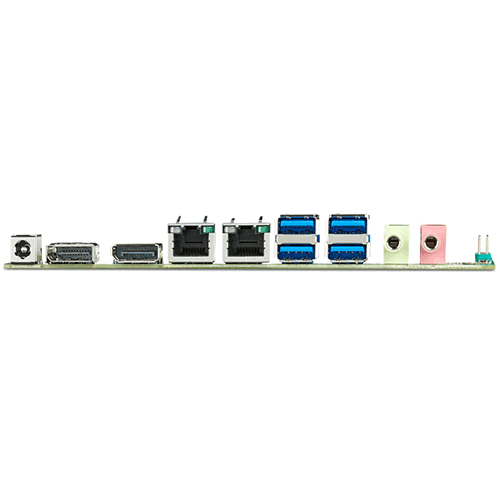

AIMB-230 Mini ITX

  • Intel® Core™ i3, i5, i7 or Celeron Dual core Processor
  • Up to 16 GB in 2x DDR3L SODIMM Sockets
  • 2x RS232/485/422 Serial Ports
  • 3x SATA III, 1x mSATA
  • 2x Gigabit Ethenret
  • eDP, LVDS, DP/HDMI, and DP++

AIMB-230 is designed with the Intel® HASWELL ULT Dual Core for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard supports Intel HASWELL ULT Dual Core i5 1.9 GHz / Celeron 1.6GHz processor up to 3 MB L3 cache and DDR3L SO-DIMM 1600 up to 16GB. A rich I/O connectivity of 2 serial ports, 4 USB 3.0, 2 USB 2.0, dual GbE LAN and 3 SATA III ports.

Features

  • Intel® Core™ i3-4010U,  i5-4300U, i7-4650U or Intel® Celeron 2980U Dual core processor
  • Up to 16 GB DDR3L 1600 MHz SDRAM
  • 2x RS232/485/422 Serial Ports
  • 3x SATA III, 1x mSATA
  • 2x 10/100/1000 Mbps with RJ-45
  • eDP/LVDS, DP/HDMI, and DP++
  • 1x Full-sized Mini-PCIe, 1x Half-sized Mini-PCIe
  • 4x USB 3.0, 2x USB 2.0
  • Controller Intel® HD Graphics 5000 Supports DirectX 11.1, OpenGL 4.0, OpenCL 1.3, Full AVC, VC1, MPEG2 H/W encoder
  • LVDS+Inverter / eDP Supports dual channel 48-bit up to 1920 x 1200, co-lay eDP (by BOM option)
  • DP/HDMI 1, Supports HDMI 1.4 for HD Video playback
  • Max resolution up to 3200 x 2000 at 60 Hz on DisplayPort (GT2), 4096 x 2304 at 24 Hz on HDMI (GT2)
  • DP++ 1, DP++ connector, available with DP-to-DVI (HDMI) cable (no transmitter) to connector to normal LCD monitor
  • Dual Display HDMI+LVDS (eDP), HDMI+DP++, LVDS( eDP)+DP++
  • Tri Display HDMI + HDMI + DP, DP + DP + eDP, HDMI + DP + eDP
  • Dual Display Mode Extended Mode, Clone Mode
  • Watchdog Timer
  • 8-bit GPIO with System Reset
  • 12 V Power Consumption
  • 2.66A/2.53A Current Consumption
  • Operating temperature: 0 ~ 60° C (32 ~ 140° F, Depending on CPU speed and cooler solution)
  • Storage temperature: -40 ~ 85° C (-40 ~ 185° F)
  • Humidity: 5 ~ 95% non-condensing
  • Power supply voltage: +12 V

Overview

AIMB-230 is designed with the Intel® HASWELL ULT Dual Core for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard supports Intel HASWELL ULT Dual Core i5 1.9 GHz / Celeron 1.6GHz processor up to 3 MB L3 cache and DDR3L SO-DIMM 1600 up to 16GB. A rich I/O connectivity of 2 serial ports, 4 USB 3.0, 2 USB 2.0, dual GbE LAN and 3 SATA III ports.

Manuals
AIMB-230_User_Manual.pdf
Download (PDF)
AIMB-230_Startup_Manual.pdf
Download (PDF)
Data Sheets
AIMB-230_DS.pdf
Download (PDF)

Specifications

Processor
CPU
Intel® Core™ i3/i5/i7/Celeron 2980U processor (Dual core) 15W TDP / BGA 1168 (MCP) 22nm
Clock Speed
3.3 GHz
Memory
RAM
up to 16 GB DDR3L 1600 MHz SDRAM
BIOS/ Bootloader
AMI EFI 128 Mbit SPI BIOS
Primary IO
GPIO
8-bit GPIO
Disk Interface
3x SATA III / 1x mSATA
Audio
2x Single Audio Jack for Line-Out (Green)
Video Out
LVDS Through Chrontel CH7511 to support LVDS Support single channel 24- bit/ dual channel 48-bit LVDS, Max 1920 x 1200 @ 60 Hz
Ethernet
2x 10/100/1000 Mbps Ethernet Ports via PCI Express
USB
4x USB 3.0 / 2x USB 2.0 Ports
Serial Ports
2x RS232/485/422
Secondary IO
PS/2
Yes
Display
Chipset
4th Generation Intel® Core™ ULT processors + Lynx Point-LP
LVDS Interface
Through Chrontel CH7511 to support LVDS Support single channel 24- bit + dual channel 48-bit LVDS + Max 1920 x 1200 @ 60 Hz
HDMI/DVI Interface
Supports HDMI 1.4 for HD Video playback Max resolution up to 4096 x 2304 at 24 Hz on HDMI
Multi-Display
DP+LVDS+HDMI / HDMI+HDMI+DP / DP+DP+eDP / HDMI+DP+eDP
Expansion
Bus Expansion
1 Full-sized Mini-PCIe, 1 Half-sized Mini-PCIe
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental

Dimensions
Size
6.69" ×6.69" (169mm × 169mm)
Weight
0.365 kg
Dimensions Misc.
170 mm x 170 mm (6.69" x 6.69")
Power Requirements
Voltage
12 V
Typical Current
2.66 A
Power Misc.

i5-4300, 3.5" SATA HDD x 1+ 8G RAM x 1 12V 2.66A

Celeron-2980U, 3.5" SATA HDD x 1+ 8G RAM x 1 12V 2.53A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%
