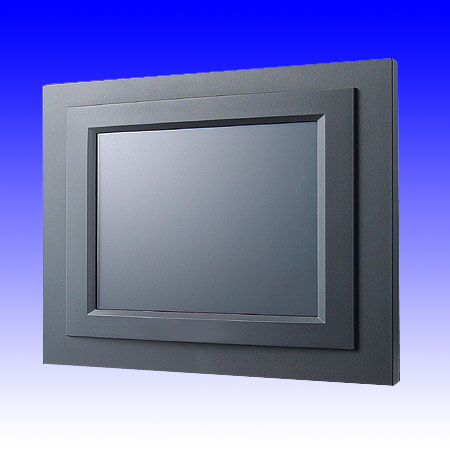

PPC-L127T

This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The PPC-L127T is a 12" fanless panel computer which is the ideal solution for low noise operating environments and clean room applications. PPC-L127T has two power sources; an optional battery pack and AC power supply. The battery charges when the PPC-L127T is connected to the AC power adapter. The optional rechargeable battery pack has more than 60 minutes battery life and can be used as an UPS during expected loss of power. The PPC-L127T meets the VESA standard for mounting holes so it can be used in many different kinds of installations.

Features

  • 12" TFT XGA LCD
  • Embedded Intel ULV Celeron M 1GHz
  • System memory 512 MB expandable up to 1 GB of DDR
  • Compact Flash ® Type I II socket
  • 10/100Base-T or Gigabit Ethernet with boot on LAN
  • Fanless and ultra-low power consumption
  • Mini PCI Socket and optional PCI expansion kit
  • Removable front bezel
  • Automatic data flow control over RS-485
  • Optional Rechargeable Battery Pack

Overview

The PPC-L127T is a 12" fanless panel computer which is the ideal solution for low noise operating environments and clean room applications. PPC-L127T has two power sources; an optional battery pack and AC power supply. The battery charges when the PPC-L127T is connected to the AC power adapter. The optional rechargeable battery pack has more than 60 minutes battery life and can be used as an UPS during expected loss of power. The PPC-L127T meets the VESA standard for mounting holes so it can be used in many different kinds of installations. The front bezel can be removed to make maintenance of the LCD and touchscreen easier and quicker.

Specifications

Processor
CPU
Embedded Intel® ULV Celeron® M
Clock Speed
1 GHz
Memory
Memory Misc.
  • Memory: One 184 pin DIMM socket up to 1GB DDR
  • HDD: One internal 2.5" IDE Interface
  • SSD: Supports internal Type I/II CompactFlash™ socket
Primary IO
Audio
Built-in Mic-in. Line-out and Line-in jacks
Video Out
12
Ethernet
10/100 Base-T Ethernet interface
USB
6x USB 2.0 (2 internal, 4 external)
Serial Ports
3x RS-232, 1x RS-232/422/485
Primary I/O Misc.

Additional I/O: 1 parallel port, external VGA port, 2x Type II PCMICIA ports

Touchscreen

(Optional)

  • Type: Analog resistive, continuous resolution
  • Light Transmission: 80%
  • Controller: RS-232 interface (COM 4)
  • Software Driver: Supports Windows XP, CE
  • Lifetime: 35 million touches
Secondary IO
PS/2
Yes
Display
Display Type
12" Color TFT LCD
Resolution
800 × 600 mm
Pixel Pitch
0.3075 × 0.3075 mm
LCD Colors
262K
Viewing Angle
70° (horizontal), 60°(up), 50 °(down)
Luminance
400 cd/m2
LCD Misc.
  • Simultaneous Mode: Yes
  • Backlight MBTF: 50,000 hrs.

Mechanical and Environmental

Dimensions
Size
340.5mm ×269.3mm ×70.5mm
Weight
3.25 kg
Power Requirements
Power Misc.
  • Output Rating : 60 Watts (typical)
  • Input Voltage: 12-25VDC 4.5A Max
  • Optional AC/DC Power Supply
    • Input Voltage: 100-240VAC
    • Output Voltage: +19V @ 3.16A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Environmental Misc.
  • Relative Humidity: 10 ~ 95% @ 40° C (non-condensing)
  • Shock (Operating): 10 G peak acceleration (11 ms. duration)
  • EMC: CE, FCC, BSMI. Safety: UL 60950, CB, CCC, BSMI
  • Front Panel Protection: Front panel meets NEMA 4 / IP 65

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-L127T-080-XE 1.0GHZ CELRON M PANEL PC W/ GLASS $1144.00
PPC-L127T-R80-XE 1.0GHZ CELRON M PANEL PC W/ RESISTIVE T/S $1248.00

Peripheral Options

Product # Description Price
Peripherals
PPC-S15X-STAND-BLK Stand Kit $77.00
PPC-ARM-A01 Swing Arm Kit $145.00
PPC-174-Wl-MT Wall Mount Kit $58.00
PPC-EXP-L127E PCI/ISA (PISA) Expansion kit $103.00
