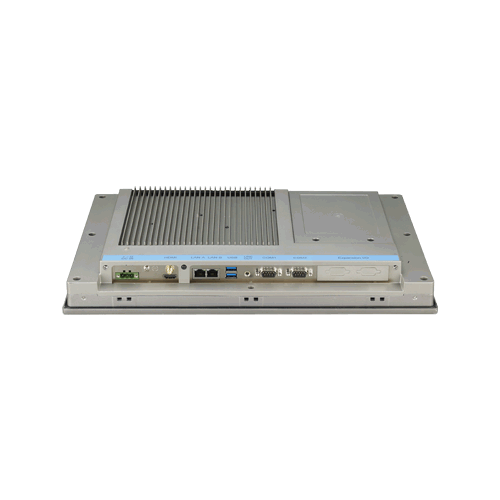

PPC-1581 WXGA 15.6" TFT LED LCD Touch
- Industrial 15.6 HD TFT LCD with 50K Lifetime LED Backlight
- Intel 4th Generation Core i3-4010U 1.7GHz
- 4GB DDR3L 1600MHz SO-DIMM SDRAM
- 1x RS-232/422/485, 1x RS-232
- 2x USB 3.0 Ports
- 2x Gigabit Ethernet
22Ppi611PP55
22Ppi211PP55 With growing up in Multi-Touch technology, the PPC-1581 features Intel 4th Generation Core i3-4010U 1.7GHz processor with 4GB DDR3L SDRAM provides the high computing performance. To enhance reliability and durability, built-in 7H hardness anti-scratch surface on high resolution 15.6" HD display with Multi-Touch in 16:9 format. Through the Mini-PCIe slot, The Manufacturer's iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.
Features
- Industrial 15.6 HD TFT LCD with 50K Lifetime LED Backlight
- Intel 4th Generation Core i3-4010U 1.7GHz
- 4GB DDR3L 1600MHz SO-DIMM SDRAM
- 1x RS-232/422/485, 1x RS-232
- 2x USB 3.0 Ports
- 1x HDMI 1.4
- 2x 0/100/1000 Base-T
- 2.5 Inch SATA SSD Slot, 1x CFast Slot, 1x mSATA (via Mini PCIe slot, can't be used simultaneously with iDoor)
- LCD Display Type: WXGA TFT LED LCD
- Display Size: 15.6
- Max. Resolution: 1366 x 768
- Max. Colors: 16.7M
- Luminance: 300 cd/m2
- Viewing Angle: (H/V°) 170/160
- Backlight Life: 50,000 hrs
- Contrast Ratio: 500:1
- Touch Screen Light Transmission: ≥88%
- Resolution: 2048 x 2048 dot
- Type: Projected capacitive
- 1x Audio Line out, 1x USB 2.0 (optional) 1x Audio MIC (optional)
- 1x Full-size Mini PCI-E
- AMI UEFI
- Watchdog Timer 1 ~ 255 sec (system)
- Power Consumption 18W Typical, 60W Max. (Without Add-on card)
- Power Input 24VDC +/- 20%
- Operating Temperature: 0 ~ 55°C (32 ~ 131°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Vibration Protection With HDD: 1 Grms (5 ~ 500 Hz) Operating, random vibration)
- Humidity: 10 ~ 95% RH @ 40°C, non-condensing
- Ingress Protection Front panel: IP66
- Weight (Net) 6 kg (13.22 lbs)
- Dimensions (W x H x D) 419.7 x 269 x 56.7 mm (16.52" x 10.59" 2.23")
Overview
With growing up in Multi-Touch technology, the PPC-1581 features Intel 4th Generation Core i3-4010U 1.7GHz processor with 4GB DDR3L SDRAM provides the high computing performance. To enhance reliability and durability, built-in 7H hardness anti-scratch surface on high resolution 15.6" HD display with Multi-Touch in 16:9 format. Through the Mini-PCIe slot, The Manufacturer's iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.
| Manuals | |
|---|---|
| TPC-1581WP manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| TPC-1581WP_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel 4th Generation Core i3-4010U 1.7GHz |
| Clock Speed | 1.7 GHz |
| Memory | |
|---|---|
| RAM | Up to 4GB DDR3L 1600MHz SO-DIMM SDRAM |
| Primary Flash | CFAST or mSATA |
| Secondary Flash | 1x 2.5 inch SATA HDD/SSD or DOM |
| BIOS/ Bootloader | AMI uEFI |
| Primary IO | |
|---|---|
| Disk Interface | 2.5 Inch SATA SSD Slot, 1x CFast Slot, 1x mSATA (via Mini PCIe slot, can't be used simultaneously with iDoor) |
| Audio | 1x Audio Line out |
| Video Out | 1x HDMI 1.4 |
| Ethernet | 2x 0/100/1000 Base-T |
| USB | 2x USB 3.0 Ports |
| Serial Ports | 1x RS-232/422/485, 1x RS-232 |
| Secondary IO | |
|---|---|
| Touch | Industrial 15.6 HD TFT LCD with 50K Lifetime LED Backlight |
| Display | |
|---|---|
| Display Type | 15.6" WXGA TFT LED LCD |
| Pixel Pitch | 1366 × 768 in |
| LCD Colors | 16.7M |
| Viewing Angle | (H/V°) 170/160 |
| Luminance | 300 cd/m2 |
| LCD Misc. |
|
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 16.52" ×10.59" ×2.23" (419mm × 268mm × 56mm) |
| Weight | 13.22 lb |
| Dimensions Misc. | Dimensions (W x H x D): 419.7 x 269 x 56.7 mm (16.52" x 10.59" 2.23") |
| Power Requirements | |
|---|---|
| Voltage | 24 V |
| Typical Voltage | 24 V |
| Typical Current | 750 mA |
| Constant Busy Loop Current | 2.5 A |
| Power Misc. |
|
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 55 C (131 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. |
|
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PPC-1581WP-433AE | COMPUTER SYSTEM 15.6" Widescreen PCT with Core i3 CPU and 4G RAM | $2245.00 |
