PPC-E7+ [9G45]

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

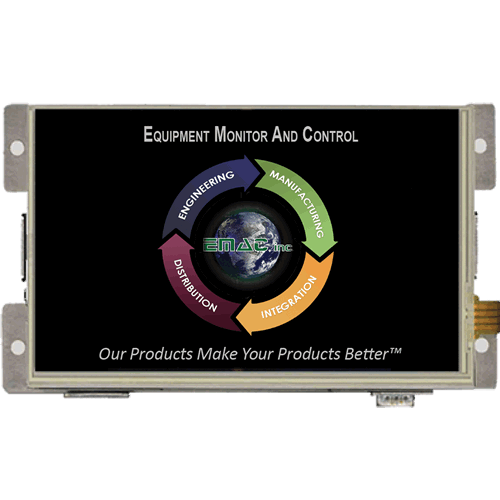

Setting up a Panel PC can be a Puzzling experience. However, the PPC-E7+ Compact Panel PC comes ready to run with the Operating System installed on flash disk. Apply power and watch the Linux X Windows User Interface appear on the vivid color LCD. Interact with the PPC-E7+ using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

Features

  • ARM9 400Mhz Fanless Low Power Processor
  • Inexpensive Open-Frame Design
  • 10/100BaseT Ethernet with on-board PHY
  • 3 RS232 & 1 RS232/422/485 Port
  • 1 USB 2.0 (High Speed) Host port
  • 1 USB 2.0 (High Speed) OTG port
  • Up to 256MB of SDRAM
  • Up to 1GB of NAND Flash
  • Up to 4MB of Serial Flash
  • Battery backed Real Time Clock
  • 2 SD/MMC Flash Card Sockets
  • 1 I2S Audio port with Line-In/Line-Out
  • Timer/Counters and Pulse Width Modulation (PWM) ports
  • 4 Channel 10-bit Analog-to-Digital converter
  • Operating Voltage of 12 to 26 Vdc.
  • Graphic LCD Interface with optional 2D acceleration & hardware CODECs
  • WVGA (800 x 480) Resolution with LED Backlight
  • Touchscreen Interface and Software Controlled Backlight On/Off & Brightness
  • JTAG for debug, including real-time trace
  • FREE Eclipse IDE with GCC & GDB development tools
  • Android Available

Overview

Setting up a Panel PC can be a Puzzling experience. However, the PPC-E7+ Compact Panel PC comes ready to run with the Operating System installed on flash disk. Apply power and watch the Linux X Windows User Interface appear on the vivid color LCD. Interact with the PPC-E7+ using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

Manuals
PPC-E7+_User_Manual.pdf
Download (PDF)
Dimensions-Mounting-bracket_PER-ENC00030-3.pdf
Download (PDF)
Dimensions-Bezel_PER-ENC-00031-0,3.pdf
Download (PDF)
Data Sheets
SoM-3354_Datasheet.pdf
Download (PDF)
SoM-250ES_Datasheet.pdf
Download (PDF)

Specifications

Processor
CPU
Fanless ARM9
Clock Speed
400 MHz
Memory
RAM Type
external DDR2/ SDRAM
Primary Flash
256MB of NAND Flash
Secondary Flash
4MB of serial data flash
Memory Misc.
  • Flash Option: 1GB NAND Flash w/ SoM-9M10
  • RAM Option: 256 MB w/ SoM-9M10
  • Flash Disk: 2 MicroSD card sockets.
  • System Reset: Supervisor with external Reset Button provision.
  • SSD:SDIO SDHC/MMC interface up to 32+ GB Flash Disk
Primary IO
GPIO
16x programmable 3.3V I/O lines
Audio
I2S Synchronous Serial Controller with Line In/Out
Video Out
2D Accelerated Video Interface (optional w/ 9M10)
Ethernet
1 x 10/100 BaseT Ethernet Port with on-board PHY
USB
1x USB 2.0 Host, 1x USB 2.0 OTG Host/Device
Serial Ports
3x RS-232 with handshaking, 1x RS-232/422/485 with Auto RS485, high-speed SPI with chip selects, I2C
Primary I/O Misc.

Touchscreen

  • Type: 4 Wire Analog Resistive
  • Resolution: Continuous
  • Controller: Built-In
  • Driver: Linux
  • Durability: Over one million touches
Secondary IO
Timers/ Counters/ PWM
6x general purpose 16-bit Timers, & Counter/PWM
Touch
10-Bit, 4 wire analog resistive Touchscreen
Display
Display Type
7" TFT Color LCD
Resolution
800 × 480 mm
LCD Colors
256K
Viewing Angle
55°
Luminance
330 (cd/m²)
LCD Misc.
  • Resolution type: WVGA
  • Dot pitch: 0.19mm x 0.19mm
  • Brightness: Software controlled
  • Backlight: White LED (33 LEDS)
Analog
A/D Channels
4
A/D Resolution
10-bit
Misc
Operating Systems Compatibility
  • Bootloader: Resident Flash Bootloader (U-Boot)
  • Operating System: Linux
  • Programming Languages: GNU GCC C compiler GDB Debugger
  • Networking: Full resident TCP/IP protocol stack
  • Integrated Development Environment: Eclipse 3.3 or higher
  • Drivers: Serial RS232/422/485, Ethernet, USB, Hardware SPI, Audio, Video, Touchscreen, Multi-Media Card/Secure Digital (MMC/SD), A/D, PWM, and GPIO.
  • Applications: Bash shell , Telnet Server, FTP Server, Web Server, and Test Programs

Mechanical and Environmental

Dimensions
Size
7.55" ×4.15" ×1.5" (191mm × 105mm × 38mm)
Weight
1.06 lb
Power Requirements
Typical Voltage
12 V
Typical Current
500 mA
Power Misc.
  • Power Supply Voltage: +12 to +28 VDC.
  • APM Sleep: ~130mA @ 12V
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products
PPC-07-3354

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-E7+0100 COMPACT PPC W/TOUCHSCREEN & SOM-9G45 256MB FLASH 128MB RAM $550.00
PPC-E7+0200 COMPACT PPC W/TOUCHSCREEN & SOM-9M10 1GB FLASH 256MB RAM (NCNR) Call

Peripheral Options

Product # Description Price
Peripherals
PER-PWR-00035 12 v @ 2.1A Wall PS (110 V @ 60 HZ US) $25.00
PER-PWR-00075 12V 2.1A power supply, 90-264V input, 47-63Hz, universal power prongs for worldwide use, 2.1mm Barrel Jack $45.00
PER-PWR-00090 24 1.25A Desktop Power Supply, standard IEC 320-C14 input connector, 2.1mm barrel jack output, requires 3 prong AC power cord (US power cord CAB-80-001) $44.00
PER-ENC-00031 Beige Aluminum Bezel $40.00
CAB-40-004 DUAL USB Bracket w/ 6" cable $10.00
CAB-35-003 6' DB9 to DB9 Null Modem extension cable $10.00
Operating Systems
SL05x-AON-xx EMAC OE Linux 5.x for ARM (Free installation at time of purchase of SBC & media) Free

Additional Options
