PPC-6152 Fanless 15" Panel


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

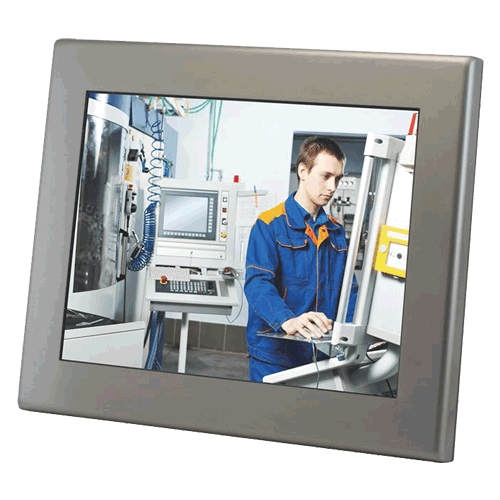

PPC-6152 Full IP66 Stainless Panel PC is a high-performance computing and completely fan-less solution for applications in the Food industry, because PPC-6152 has the full IP-66 protection, 316L stainless and 7H Hardness surface. PPC-6152 comes with Intel® AtomTM D525 processor, 15” TFT LCD Display with LED Backlight 316L Stainless, 7H hardness surface, Sealing enclosure (IP66 certificated) and Water proof I/O connectors for Ethernet , multi-COM port, audio and USB interfaces.

Features


  • 15” XGA (1024 x 768) TFT LCD 5-wire Analog Resistive Touch Screen

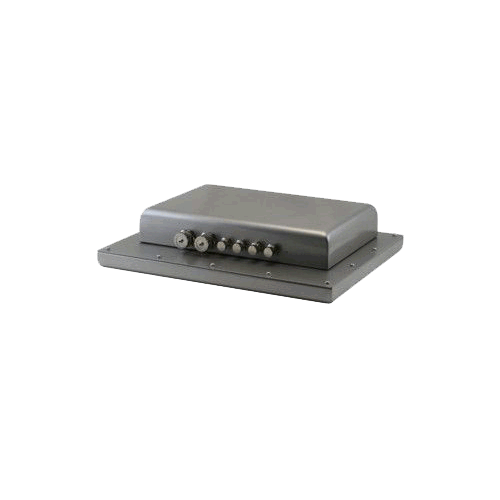

  • IP66/NEMA4x-Compliant Stainless chassis with waterproof cable connections
  • Intel® Atom™ D525 Dual Core Onboard 1.8 GHz
  • UP to 4GB DDR3 SODIMM
  • 1x RS-232, 1x RS-232/422/485
  • 2x USB 2.0 Ports
  • 1x 10/100/1000Base-TX
  • 1x 2.5 Inch SATA Hard Disk Drive / 1x CompactFlash™ Slot x 1 (Internal)
  • 1x Mini-Card
  • LCD Display type: 15" TFT-LCD
  • Max. Resolution: 1024 x 768
  • Max. Colors: 262K colors
  • Luminance: 400 nits
  • Viewing Angle: 160°(H)/140°(V)
  • Back Light: LED
  • Back Light MTBF Hours: 50,000
  • Touchscreen Type: 5-wire Analog Resistive
  • Light Transmission: 80%
  • Lifetime: 10 million Activations
  • AMI BIOS
  • Power Requirement: 9~30V DC input
  • Operating Temperature:
  • -4°F ~ 122°F (-20°C ~ 50°C) Ambient without Airflow & -4°F ~ 130°F (-20°C ~ 55°C) Ambient with Airflow
  • Gross Weight 16.1 lb (7.5Kg)
  • Dimension: 15.75” (W) x 12.76” (H) x 3.32” (D) (390 mm x 324mm x 84.5mm)

Overview


PPC-6152 Full IP66 Stainless Panel PC is a high-performance computing and completely fan-less solution for applications in the Food industry, because PPC-6152 has the full IP-66 protection, 316L stainless and 7H Hardness surface. PPC-6152 comes with Intel® AtomTM D525 processor, 15” TFT LCD Display with LED Backlight 316L Stainless, 7H hardness surface, Sealing enclosure (IP66 certificated) and Water proof I/O connectors for Ethernet , multi-COM port, audio and USB interfaces.

Besides, for system integrators, a simple, complete, compact and highly integrated system helps you smoothly build an industrial grade solution into your applications. By this concept, PPC-6152 is design with valuable features (listed in next section) to serve various field of markets such as Factory and Outdoor, especially Food industry.

Manuals
AFP-6152 Manual 2nd Ed.pdf
Data Sheets
AFP-6152.pdf

Specifications


Processor
CPU
Intel® Atom™ D525 Dual Core Onboard
Clock Speed
1.8 GHz
Memory
RAM
Up to 4GB DDR3 SODIMM
BIOS/ Bootloader
AMI BIOS
Primary IO
Disk Interface
1x 2.5 Inch SATA Hard Disk Drive / 1x CompactFlash™ Slot x 1 (Internal)
Video Out
5-wire Analog Resistive Touch Screen
Ethernet
1x 10/100/1000Base-TX
USB
2x USB 2.0 Ports
Serial Ports
1x RS-232, 1x RS-232/422/485
Secondary IO
Touch
5-wire Analog Resistive Touch Screen
Display
Display Type
15" TFT-LCD 1024 x 768 5-wire Analog Resistive Touch Screen
LCD Colors
262K colors
Viewing Angle
160°(H)/140°(V)
Luminance
400 nits
LCD Misc.

LCD

  • Max. Resolution 1024 x 768
  • Back Light: LED
  • Back Light MTBF Hours: 50,000

Touchscreen

  • Type: 5-wire Analog Resistive
  • Light Transmission: 80%
  • Lifetime Times: 10 Million Activations

Mechanical and Environmental


Dimensions
Size
15.75" ×12.76" ×3.32" (400mm × 324mm × 84mm)
Weight
16.1 lb
Dimensions Misc.

Dimension: 15.75” (W) x 12.76” (H) x 3.32” (D) (390 mm x 324mm x 84.5mm)

Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature50 C (122 F)
Upper Operating Humidity
90%
Environmental Misc.
Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C) Ambient without Airflow & -4°F ~ 130°F (-20°C ~ 55°C) Ambient with Airflow
Storage Humidity: 8%~90% @40°C, non-condensing

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-6152HTT-A1-1010 15" XGA TFT LCD Stainless, Fanless, PPC.D525, 2G RAM 400 nits, 9-30V in.GFG Touch Call
