PPC-1154 XGA HMI 15" Touch Panel

  • 15” XGA HMI Touch Panel PC
  • Intel® Celeron® J1900 or N2807
  • Up to 8GB DDR3L SODIMM, Default 2GB RAM Inside
  • 4x Serial ports
  • 1x USB 3.0 Port, 3x USB 2.0 Ports
  • 2x Gigabit Ethernet

Powered by Intel® Celeron® J1900 2GHz and N2807 1.58GHz processors, the PPC-1154 is a operator panel computer designed to serve as a human machine interface (HMI). It is a PC-based system with a 15" color TFT LCD display, onboard Ethernet controller, and multi-COM port interfaces. With a built-in CFast socket, the PPC-1154 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be VESA 75/100 wall mounted.

Features

  • 15” XGA HMI Touch Panel PC
  • Intel® Celeron® J1900 ,2 GHz / N2807, 1.58 GHz
  • Up to 8GB DDR3L 1333MHz (J1900), Up to 4GB DDR3L 1333MHZ (N2807), Default 2GB RAM Inside
  • 2x RS-485/422/232, 2x RS-232
  • 1x SATA 2.5 Inch HDD Bay / CFast Socket
  • 1x USB 3.0 Port, 3x USB 2.0 Ports
  • 2x 10/100/1000Base-TX with RJ-45
  • 2x Mini card (Full Size / Half Size)
  • 1x VGA
  • Plastic IP 65 Front Bezel Design
  • LCD Display type: 15.1" TFT-LCD, LED backlight
  • Max Resolution: 1024 x 768
  • Max. Colors: 16.7M colors (8-bit for R,G,B)
  • Luminance: 450 cd/m2
  • Viewing Angle: 160°(H), 140°(V)
  • Back Light MTBF Hour: 100,000
  • Touchscreen Type: 5-wire Resistive Touch
  • Operating Temperature: -10°C ~ 60°C with 0.5 m/s airflow (N2807) & -10°C ~ 50°C with 0.5 m/s airflow (J1900)
  • Storage Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Humidity: 90% @40°C; non-condensing
  • 1x Power button
  • AMI BIOS
  • Power Requirements: DC 12V; DC 9 ~ 30 V
  • Gross Weight 6.8 kg
  • Dimension (mm) 407 x 310.5 x 58.3

Overview

Powered by Intel® Celeron® J1900 2GHz and N2807 1.58GHz processors, the PPC-1154 is a operator panel computer designed to serve as a human machine interface (HMI). It is a PC-based system with a 15" color TFT LCD display, onboard Ethernet controller, and multi-COM port interfaces. With a built-in CFast socket, the PPC-1154 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be VESA 75/100 wall mounted.

For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application’s processing requirements.

Manuals
AHP-1154 manual 1st Ed.pdf
Download (PDF)
Data Sheets
AHP-1154.pdf
Download (PDF)

Specifications

Processor
CPU
Intel® Celeron® J1900 (2 GHz) / N2807 (1.58 GHZ)
Clock Speed
2 GHz
Memory
RAM Type
Up to 8GB DDR3L (J1900) / Up to 4GB DDR3L (N2807) / Default 2GB RAM Inside
Primary Flash
CFAST
Secondary Flash
1x 2.5 inch SATA HDD/SSD or DOM
BIOS/ Bootloader
AMI BIOS

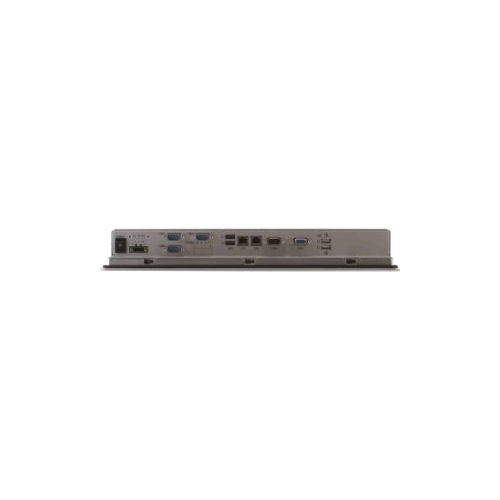

Primary IO
Disk Interface
1x SATA 2.5 Inch HDD Bay / CFast Socket
Video Out
15.1 Inch TFT-LCD, LED
Ethernet
2x 10/100/1000Base-TX with RJ-45
USB
1x USB 3.0 Port, 3x USB 2.0 Ports
Serial Ports
2x RS-485/422/232, 2x RS-232
Secondary IO
Touch
5-wire Analog Resistive Touch
Display
Display Type
15.1 Inch TFT-LCD, LED backlight
Resolution
1024 × 768 px
LCD Colors
16.7M colors (8-bit for R,G,B)
Viewing Angle
160°(H), 140°(V)
Luminance
450 cd/m2
LCD Misc.
  • LCD Display type: 15.1" TFT-LCD, LED backlight
  • Max Resolution: 1024 x 768
  • Back Light MTBF Hour: 100,000
  • Touchscreen Type: 5-wire Resistive Touch
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental

Dimensions
Size
16.02" ×12.22" ×2.3" (406mm × 310mm × 58mm)
Weight
6.8 kg
Dimensions Misc.

Dimension (mm) 407 x 310.5 x 58.3
Power Requirements
Power Misc.
Power Requirements: DC 12V; DC 9 ~ 30 V
Environmental
Low Operating Temperature-10 C (14 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Environmental Misc.
  • Operating Temperature: -10°C ~ 60°C with 0.5 m/s airflow (N2807) & -10°C ~ 50°C with 0.5 m/s airflow (J1900)
  • Storage Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Humidity: 90% @40°C; non-condensing

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-1154HTT-A1-1010 15" LED Backlight, J1900 2.0GHz, 2GB RAM, 3 pin 9~30V DC R-TS $1042.17
PPC-1154HTT-A2-1010 15" LED Backlight, J1900 2.0GHz, 2GB RAM, 3 pin 12V DC R-TS $1003.61
PPC-1154HTT-A3-1010 15" LED Backlight, N2807 1.58GHz, 2GB RAM, 3 pin 9~30V D. R-TS $1010.84
PPC-1154HTT-A4-1010 15" LED Backlight, N2807 1.58GHz, 2GB RAM, 3 pin 12V DC R-TS $971.08
