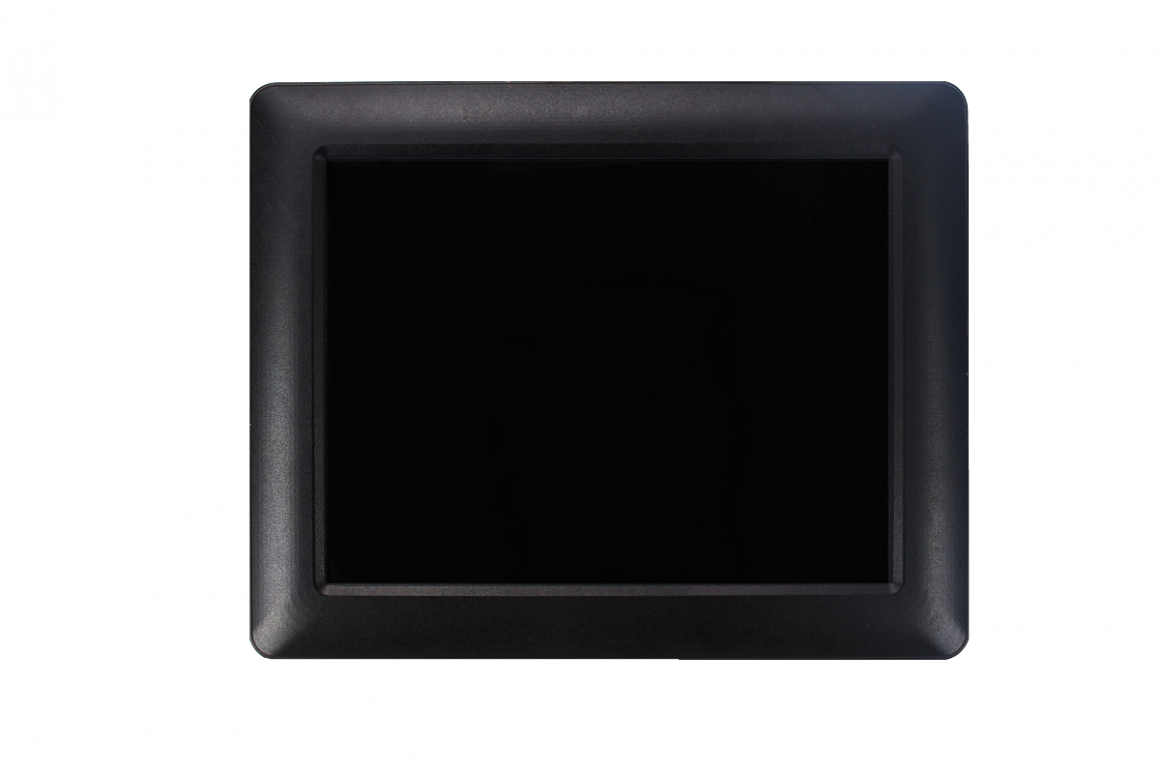

PPC-104T
- High quality, sturdy aluminum housing
- Out of the box working X86 architecture
- 10.4" TFT LCD with Resistive touchscreen
- Fanless and Low Power
- IP65 front panel
321pi41117
321pi21117
321pi41117
321pi11118 The PPC-104T is a Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-104T is powered by DMP’s latest Vortex86DX2 or DX3 SoCs, the 3rd generation SoCs of Vortex86 family, and dual-channel 1GB / 2GB DDRII (DDRIII) chipset that handles processing more efficiently and provides faster performance. The resistive touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications.
Features
- CPU: DM&P Vortex86 DX2 933 MHz or Vortex86 DX3 1GHz Processor
- Audio: Realtek ALC262 high definition audio codec,
- Memory: 512 MB / 1GB / 2GB DDR2 or DDR3 onboard memory
- Compact flash internal
- SATA Slim SSD option
- Supports Linux, Windows CE, Windows XP, Windows 7, Windows Embedded Standard 2009, Windows Embedded Standard 7
- 2x Serial
- 3x USB 2.0
- 10/100 Ethernet (2x LAN optional, 10/100 LAN and 10/100/1000 BASE-T GigaBit LAN)
- POE (Optional)
- High-quality black aluminum housing
- Internal WLAN (Optional)
- VESA 100 bracket for mounting (Optional)
Overview
The PPC-104T is a Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-104T is powered by DMP’s latest Vortex86DX2 or DX3 SoCs, the 3rd generation SoCs of Vortex86 family, and dual-channel 1GB / 2GB DDRII (DDRIII) chipset that handles processing more efficiently and provides faster performance. The resistive touch panel with LED backlight TFT LCD increases operation convenience and visibility in outdoor environments. The ultra-compact and thin exterior design is perfect for the present demanding embedded and productive applications.
The new PPC-104T inherited PDX/PMX-series’ smooth appearance and ultra-texture aluminum exterior design to make your industrial applications look more stylish. The versatile I/O ports, IP65 front panel, 10/100Mps Ethernet, GIGA high-speed Ethernet, WLAN, etc. can fulfill fundamental functions. Our consistent advantages feature stable performance, extended working temperature support, low power consumption and fanless design. The expandable customize I/O ports can be accommodated connectivity requirements to industrial machine platforms and industrial automation equipment’s needs.
The PPC-104T supports Windows Embedded CE 6.0, Windows Embedded Compact 7, Windows Embedded Standard 2009, Windows Embedded Standard 7 and Linux to meet ready-to-market demand and provide competitive advantages for customers.
| Manuals |
|---|
| Data Sheets | |
|---|---|
| PPC-104T-D2-D3_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | DM&P Vortex86 DX2 or DX3 |
| Clock Speed | 1 GHz |
| Processor Misc. | DM&P Vortex86DX2 933MHz / Vortex86DX3 1GHz |
| Memory | |
|---|---|
| RAM | Up to 2GB DDR3 Onboard |
| RAM Type | DDR |
| Primary Flash | Compact Flash or SATA DOM |
| Secondary Flash | SD Slot (Optional) |

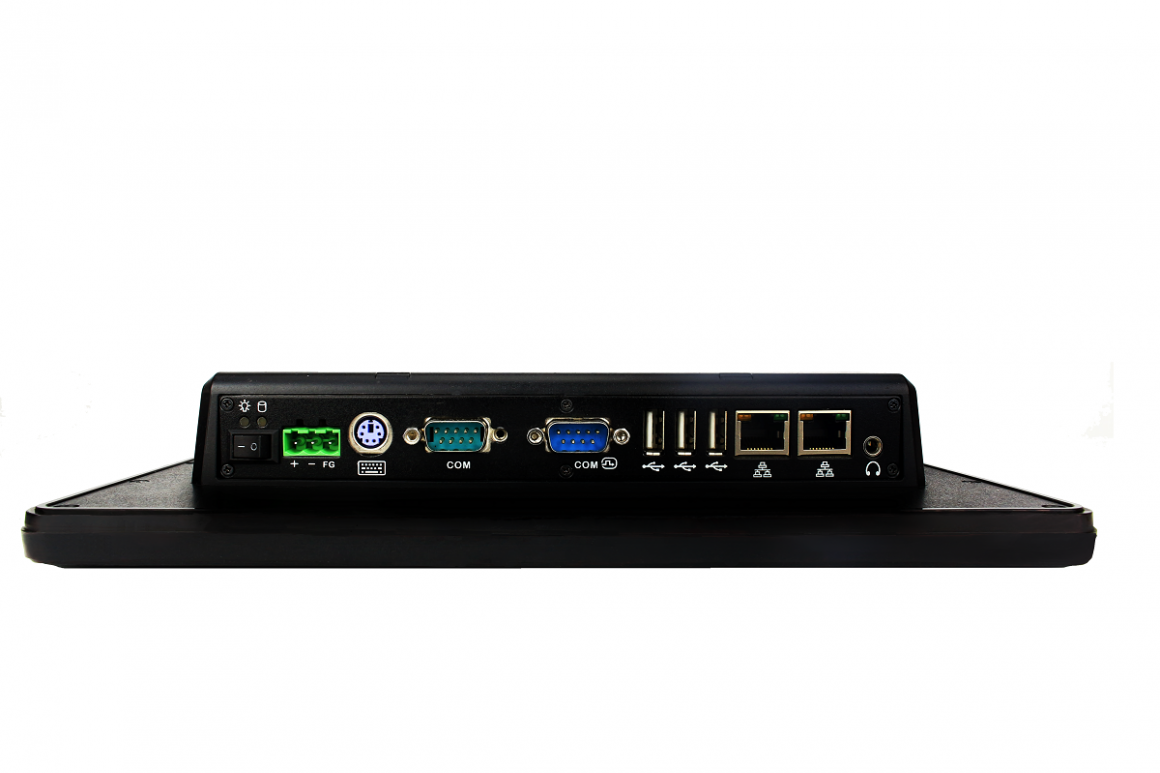

| Primary IO | |
|---|---|
| GPIO | 16x GPIO (Optional) |
| Disk Interface | Compact flash or SATA |
| Audio | HD Audio Realtek ALC262 CODEC |
| Ethernet | Integrated 10/100 Mbps Ethernet (POE optional) / 10/100/1000 BaseT Giga Ethernet (optional) |
| Wireless | internal WLAN (Optional) |
| USB | 3x USB 2.0 Ports |
| Serial Ports | 2x COM (RS232/422/485 switchable) |

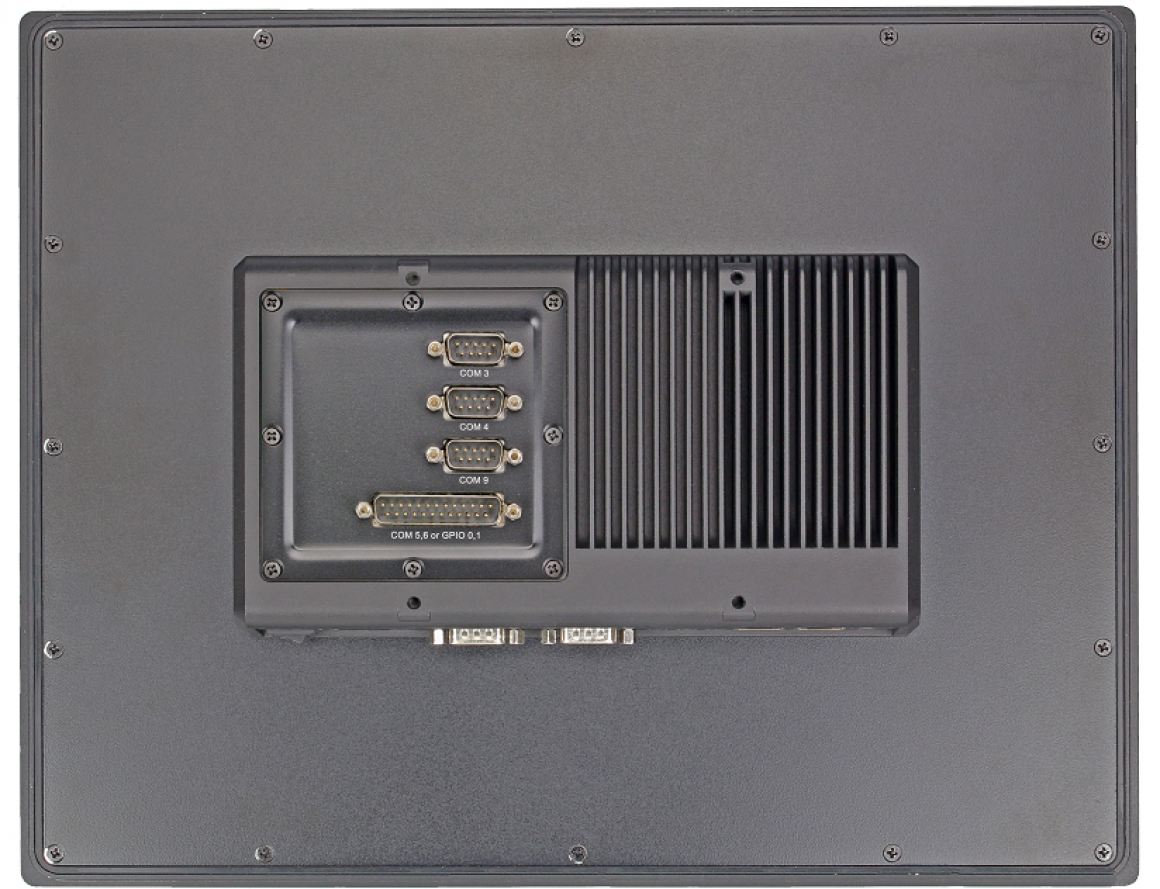

| Primary I/O Misc. | Optional IO configurations:
|
| Secondary IO | |
|---|---|
| Touch | 4-wire resistive touch panel monitor |
| Secondary I/O Misc. | Capacitive touch optional |
| Display | |
|---|---|
| Display Type | SVGA TFT LCD |
| Resolution | 800 × 600 px |
| LCD Colors | 16.7M |
| Luminance | 500 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) , WES 7 - Windows Embedded Standard 7 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 10.76" ×8.65" ×1.93" (273mm × 219mm × 49mm) |
| Weight | 1.75 kg |
| Power Requirements | |
|---|---|
| Power Misc. | Power Indicator: Green LED |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 50 C (122 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Operating Temperature (°C): -0°C to 50°C (-20°C to 60°C) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|
