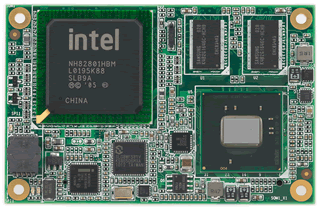

SoM-7562


  • Intel® Atom™ N455 1.66 GHz Processor
  • Onboard DDR3 1GB Max
  • 1 or 2 GB on-board Flash
  • Supports 8 USB 2.0 ports

Receive consultation or quotes about this product from our sales staff.

Request a quote

SOM-7562 is an embedded COM-Ultra Type 1 CPU module that fully complies with the PCI Industrial Computer Manufactures PICMG COM Express standard. The SOM-7562 supports the Intel N455 processor with ICH8M chipset. The chipsets’s graphic and memory controller are all on the same die as the CPU. The graphic engine integrates Intel Embedded Gen3.5 + GFX Core, MPEG2 Decode in HW, PCI Express and SATA interfaces.

Features


  • Intel® Atom™ N455 1.66 GHz Processor
  • Onboard DDR3 1GB Max
  • 1 or 2 GB on-board Flash
  • Supports 8 USB 2.0 ports
  • Gigabit Ethernet
  • High Definition Audio Interface
  • Supports 5 PCIe x1,
  • Nano Module Size, 84mm x 55mm

Overview


SOM-7562 is an embedded COM-Ultra Type 1 CPU module that fully complies with the PCI Industrial Computer Manufactures PICMG COM Express standard. The SOM-7562 supports the Intel N455 processor with ICH8M chipset. The chipsets’s graphic and memory controller are all on the same die as the CPU. The graphic engine integrates Intel Embedded Gen3.5 + GFX Core, MPEG2 Decode in HW, PCI Express and SATA interfaces. In a basic form factor of 84mm x 55mm, the SOM- 7562 provides a scalable high performance and easy to integrate solution for customers’ applications by utilizing a plug-in CPU module on an application-specific customer solution board. The SOM-7562 with advanced I/O capacity incorporates serial differential signaling technologies such as PCI Express, Serial ATA, USB 2.0, LVDS and HD Audio interfaces. SOM-7562 offers design partners more choices for their own applications needing higher computing speeds while maintaining a compact form factor.

SOM-7562 complies with the "Green Function" standard and supports Doze, Standby and Suspend modes. The small size (84 mm x 55 mm) and use of one high capacity connector based on the proven COM-Ultra form factor, allow COM-Ultra modules to be easily and securely mounted onto a customized solution board or our standard SOM-DB5700 development board.

The SOM-7562 is a highly integrated multimedia COM module that combines audio, video, and network functions. It provides excellent calculated ability by Intel® latest Pineview-M processor, single channel LVDS interface for middle size TFT LCD display, on board DDR3 memory up to 1GB, high definition audio interface (Azalia).

Manuals
SOM-7562_user_manual_ed.2-FINAL.PDF
SOM-7562_user_manual_ed.1-FINAL.pdf
SOM-7562_B1_user_manual_ed.2-FINAL.PDF
SOM-7562 B1_user_manual.pdf
Data Sheets
SOM-7562_DS.pdf
SOM-7562_B1_DS.pdf

Specifications


Processor
CPU
Intel Atom Processor N455
Clock Speed
1.66 GHz
Memory
RAM
1 GB
RAM Type
DDR3
BIOS/ Bootloader
AMI 16 Mbit Flash BIOS
Memory Misc.
  • System Memory: Onboard DDR3 667 MHz memory chip, Max. 1GB
  • System Chipset: ICH8M
Primary IO
GPIO
1x 8-bit GPIO
Disk Interface
3x SATAII
Audio
High definition audio interface
Video Out
Dual display supports of CRT and LVDS
Ethernet
Intel 82567V 10/100/1000Base-TX Ethernet
USB
8x USB 2.0 Ports
Primary I/O Misc.

Display

  • Chipset: Embedded Gen3.5+ GFX Core
  • Memory Size: Share system memory up to 384MB
  • Display type: Dual display supports of CRT and LVDS.
    Supports 18-bit single channel LVDS interface
  • Display mode:
    CRT Mode: Support up to 1400 x 1050
    LCD Mode: Support up to 1366 x 768
Secondary IO
Expansion
Bus Expansion
COM Express Type 1
Misc
SOM Type
COM Express Modules

Mechanical and Environmental


Dimensions
Size
3.31" ×2.17" (84mm × 55mm)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SoM-7562F1 AtomN455, DDR3 1GB, GbE, SATA, USB2.0 $336.00
SoM-7562F2 AtomN455, DDR3 2GB, GbE, SATA, USB2.0 $361.00
SoM-7562SZ Atom N455, DDR3 1GB, GbE, SATA, USB2.0, WIDE TEMP(-20~80) Call

Carrier Board Options


Product #VariationPrice
SoM-DB5700-0 COM express development carrier board $315.00
