SoM-536EM


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The SoM-536EM is Based on the Analog Devices Blackfin ADSP-BF536 processor. This embedded processor has an Ethernet MAC built-in along with 3 serial ports. The BF536 combines a 32-bit RISC-like instruction set and dual 16-bit multiply accumulate (MAC) signal processing functionality with the ease-of-use attributes found in general-purpose microcontrollers. This combination of processing attributes enables Blackfin Processors to perform equally well in both signal processing and control processing applications.

Features


  • Small, 144 pin SODIMM form factor (2.66" x 1.5")
  • Blackfin hybrid RISC/DSP high performance core running at up 600 MHz
  • Low Power Consumption with Dynamic Power Management.
  • 10/100BaseT Ethernet with on-board PHY
  • 2 serial ports with handshake
  • 1 CAN 2.0B port
  • 1-Wire® Network provision
  • Up to 64 MB of SDRAM
  • Up to 4 MB of Flash
  • 128K Bytes of Serial Flash
  • Battery backed Real Time Clock
  • SPI, I2S & I2C
  • Timer/Counters and Pulse Width Modulation (PWMs) port
  • Typical power requirement less than 1 Watt
  • JTAG for debug, including real-time trace
  • FREE Eclipse IDE with GCC & GDB development tools

Overview


The SoM-536EM is Based on the Analog Devices Blackfin ADSP-BF536 processor. This embedded processor has an Ethernet MAC built-in along with 3 serial ports. The BF536 combines a 32-bit RISC-like instruction set and dual 16-bit multiply accumulate (MAC) signal processing functionality with the ease-of-use attributes found in general-purpose microcontrollers. This combination of processing attributes enables Blackfin Processors to perform equally well in both signal processing and control processing applications. It is equipped with an MMU and can utilize uClinux Operating System with Real Time extensions.

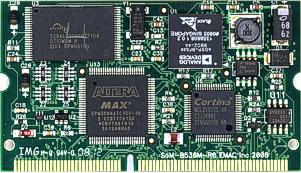

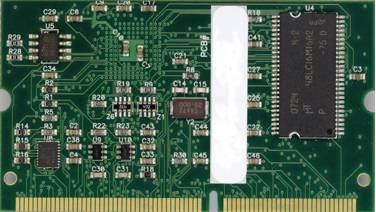

A SoM (System on Module) is a small embedded module that contains the core of a microprocessor system. Using the same small SoM SODIMM form-factor utilized by other EMAC SoM modules, the SoM-536EM is the ideal processor engine for your next design. All of the Blackfin’s processor core is included on this tiny board including: Flash, Memory, Serial Ports, Ethernet, CAN, PWMs, Timer/Counters, A/D, digital I/O lines, Clock/Calendar, and more.

The SoM-536EM is designed to plug into a carrier board that contains all the connectors and any custom I/O required for the application. This approach allows the customer or EMAC to design a Custom Carrier Board, that meets the customer's I/O, dimensional, and connector requirements without having to worry about the processor, memory, and standard I/O functionality. With this System on Module approach, a semi-custom hardware platform can be developed in as little as a month.

In addition to the option of the developing a Carrier board, one can be purchased off-the-shelf from EMAC. EMAC provides off-the-shelf Carrier boards that feature A/D, D/A, MMC/SD card, keypad, LCD, and Modem interfaces. The off-the-shelf Carrier Board (SoM-100ES) allows the user to immediately start coding their application using the powerful uClinux Operating System and Tools.

The System On Module approach provides the flexibility of a fully customized product at a greatly reduced cost.

Manuals
SoM-536EM_User_Manual.pdf
Data Sheets

Specifications


Processor
CPU
Embedded Blackfin BF536 processor
Clock Speed
400 MHz
Memory
RAM
64 MB
RAM Type
SDRAM
Primary Flash
2 MB External Flash (4 MB Optional)
Secondary Flash
512Kb of Internal Flash
BIOS/ Bootloader
Resident Flash Bootloader (Das Uboot)
Memory Misc.
  • System Reset: Supervisor with external Reset Button provision
  • Battery Backed RAM: 64K
Primary IO
GPIO
24 General Purpose I/Os with 25 ma. drive when used as an output
Serial Ports
2 serial TTL level serial ports with a max. baud rate of 115K baud (each UART requires external RS level shifting)
Secondary IO
CAN
Full CAN 2.0B
SPI
High-Speed SPI port with DMA
Timers/ Counters/ PWM
8x 32-bit timers/counters with capture, compare, and DMA capability
I2C
Bus Controller
Secondary I/O Misc.

I2S: Dual Channel High-Speed SPORTS supporting up to 8 I2S channels

Expansion
Bus
Local Blackfin BF536 Bus accessible through SODIMM provides 22 address lines, 16 data bus lines, and control lines
Bus Misc.

1-Wire®: 1-Wire® Bus Master capability

Misc
Operating Systems Compatibility

Operating System: uClinux with Optional RTAI extensions

SOM Type
Microcontroller SODIMM Modules

Mechanical and Environmental


Dimensions
Size
2.66" ×1.5" (67mm × 38mm)
Power Requirements
Voltage
3.3 V
Typical Voltage
3.3 V
Typical Current
300 mA
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature70 C (158 F)
Upper Operating Humidity
90%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price

Non-stock Minimum Order: 50, NCNR

Carrier Board Options


Product #VariationPrice
SoM-100ES-000 Standard Carrier Board $150.00
SoM-100ES-030 Standard Carrier Board with A/D, D/A $250.00
SoM-100ES-007 Bare Bones Carrier Board $95.00

Peripheral Options


Product # Description Price
Operating Systems
SL010-B024-000D Xenomai Real-Time Extensions (one-time charge) $150.00
