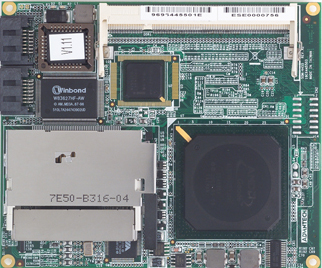

SoM-4455
- Embedded AMD Geode™ LX800 CPU+ AMD CS5536 Chipset
- AMD LX800 Integrated 2D engine supports 24-bit LVDS or 18-bit TTL
- Supports one DDR-400 memory SODIMM socket up to 1GB
- Supports up to 4 PCI Master, ISA, 2 IDE, 2 SATA, 4 USB 2.0, 1 10/100 Ethernet, 2 COM, 1 LPT/FDD, onboard Type II CF socket, Line-in/out, MIC
Receive consultation or quotes about this product from our sales staff.
Request a quoteSoM-4455 is low power consumption but high performance embedded ETX CPU module that enables customers to extend their system to ever more applications. This CPU module adopts the AMD generation Geode LX 800 series processor which offers a faster and more flexible display solution. The integrated graphic accelerator provides multiple display options: (CRT, LCD or CRT+LCD) without extra charge. For I/O, there is high speed USB 2.0 and two serial ports. Low power consumption makes it possible to save energy and make the system more reliable; all in a fanless design.
Features
- Embedded Fanless AMD Geode LX800 processor
- 10/100 Mbps Ethernet
- 18-bit LCD/1 channel LVDS interface
- AC’97 V 2.3 Audio
- Less than 8 watts of power consumption
Optional:
Extended Temp. Version available -20 ~ 80° (call)
1960012091T00S Semi-Heatsink 114 x 96 x 15 mm
Overview
SoM-4455 is low power consumption but high performance embedded ETX CPU module that enables customers to extend their system to ever more applications. This CPU module adopts the AMD generation Geode LX 800 series processor which offers a faster and more flexible display solution. The integrated graphic accelerator provides multiple display options: (CRT, LCD or CRT+LCD) without extra charge. For I/O, there is high speed USB 2.0 and two serial ports. Low power consumption makes it possible to save energy and make the system more reliable; all in a fanless design. All of these features make SoM-4455 the best choice for outdoor and highly reliable applications.
SoM-4455 complies with the "Green Function" standard and supports doze, standby and suspend modes. The small size board (95 mm x 114 mm) uses four high capacity connectors based on the proven SoM-ETX form factor, allowing SoM-ETX modules to be easily and securely mounted onto a customized solution board or our standard SOM-DB4400 development board.
SoM-ETX is a standard CPU module with all the main components on board and connects to the customer’s own carrier board with 4 connectors. The customer can make the necessary designs on their own carrier board base. SoM-ETX not only significantly reduces development time but also keeps maximum design flexibility for satisfying different market demands.
| Manuals | |
|---|---|
| SOM-4455.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| SOM-4455_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | AMD Geode LX800 |
| Clock Speed | 500 MHz |
| Memory | |
|---|---|
| RAM | 1 GB |
| RAM Type | DDR |
| BIOS/ Bootloader | AWARD 4 Mbit Flash BIOS |
| Memory Misc. |
|
| Primary IO | |
|---|---|
| GPIO | 1-bit GPIO, 2-bit GPE |
| Disk Interface | 1x EIDE Channels SATA Interface. 2x SATA-100 Channels for two SATA devices. 1x Floppy channel (shared with LPT) |
| Audio | AC’97 audio codec for Line out |
| Video Out | AMD Geode LX800 integrated 2D graphic controller. Share system memory up to 32 MB. CRT/LCD/LVDS. |
| Ethernet | IEEE 802.3u 100Base-T Standard |
| USB | 4x USB 2.0 compliant ports |
| Serial Ports | 2x TTL Level Serial ports |
| Secondary IO | |
|---|---|
| LPT Port | Yes
|
| Expansion | |
|---|---|
| Bus Expansion | PCI/ISA |
| Misc | |
|---|---|
| SOM Type | PC-Comaptible ETX Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.7" ×4.5" (93mm × 114mm) |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Voltage | 5 V |
| Typical Current | 1.5 A |
| Max Boot Current | 2.2 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
Pricing
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SoM-4455R | AMD LX800 500 MHz SOM-ETX MODULE w/ TFT LCD | $206.00 |
| SoM-4455Rl | AMD LX800 500 MHZ SOM-ETX MODULE w/ LVDS LCD | $209.00 |
Carrier Board Options
| Product # | Variation | Price |
|---|---|---|
| SoM-DB4400-0 | ETX development carrier board | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FAN-00015-R | HS NO FAN 114x96x15mm (required) | $18.00 |
