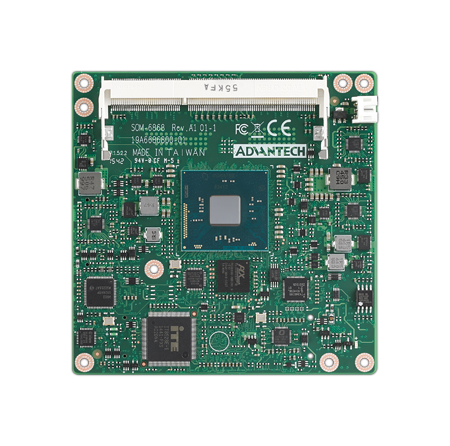

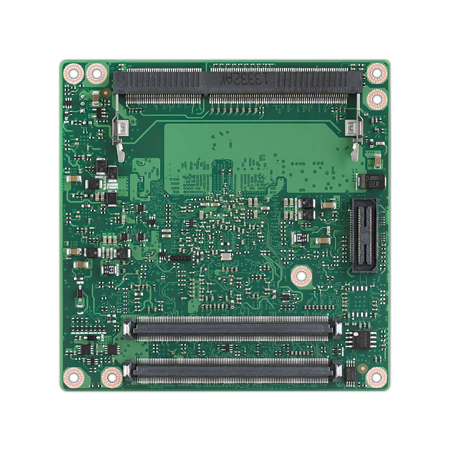

SOM-6868


  • Intel® Pentium®/Celeron® and Atom™ SoC
  • PICMG COM Express R2.1 Compact Module Type 6 pin out
  • Supports 5x PCIex1
  • 4x USB3.0 ,8x USB2.0
  • Up to 3 independent display
  • Supports Wide Range Power input support from 4.75~20V

Receive consultation or quotes about this product from our sales staff.

Request a quote

SOM-6868 is equipped with the new Intel® Pentium® N3710, Celeron® N3160/ N3060/N3010, and AtomTM X5-E8000 single-chip processors, which are built with the latest Intel® 14-nm process technology, providing better performance with lower power consumption. The integrated, new graphics core boasts displays resolutions up to 4K2K and supports state-of-the-art hardware accelerators that perform well beyond previous platforms. So the SOM-6868 is suitable for low-power, yet graphic intense application fields such as medical, digital signage, and portable instruments.

Features


  • ntel® Pentium®/Celeron® N3000 Series and Atom™ SoC
  • PICMG COM Express R2.1 Compact Module Type 6 pin out
  • Supports 5x PCIe x1
  • 4x USB 3.0
  • 8x USB 2.0
  • 2x SATA III
  • 1x 10/100/1000
  • Rich display interface : LVDS/eDP, HDMI/DP
  • Up to 3 independent display
  • Supports Wide Range Power input support from 4.75~20V

Overview


SOM-6868 is equipped with the new Intel® Pentium® N3710, Celeron® N3160/ N3060/N3010, and AtomTM X5-E8000 single-chip processors, which are built with the latest Intel® 14-nm process technology, providing better performance with lower power consumption. The integrated, new graphics core boasts displays resolutions up to 4K2K and supports state-of-the-art hardware accelerators that perform well beyond previous platforms. So the SOM-6868 is suitable for low-power, yet graphic intense application fields such as medical, digital signage, and portable instruments. Intel® gen 8 graphics are integrated with up to 16 EUs (execution units) delivering 2x the graphics performance compared with the previous platform. With the new graphics core, this Compact Module provides rich display interfaces such as LVDS, eDP, HDMI, and DisplayPort, and can support three simultaneous and independent display outputs. Up to 3840 x 2160 (4K) resolution satisfies high-quality display requirements. It’s also the first low-power platform that supports an H.265/HEVC hardware decoder that accelerates 4K playback. The SOM-6868 provides advanced features that can satisfy a wide range of applications. This product is designed to support wide-range voltage inputs from 4.75 to 20V; this provides flexible options to fulfill various application user scenarios. SOM- 6868 also incorporates a rich array of I/O interfaces including 5 PCIe x1 links that optionally support x4 and x2 configurations, and offers one Intel® i211AT Gigabit Ethernet controller, 2 SATA Gen3, 8 USB 2.0, 4 USB 3.0, 2 COM ports, SMBus, I2C, and HD audio interface functions.

Manuals
Data Sheets
SOM-6868_DS.pdf

Specifications


Processor
CPU
Intel® Pentium® N3710/Celeron® N3160/Atom® E8000
Clock Speed
1.6 GHz
Processor Misc.

N3710: Quad core 1.6-2.56 Ghz/ 6W
N3160: Quad core 1.6-2.24 Ghz/ 6W
N3060: Dual core 1.6-2.48 Ghz/ 6W
N3010: Dual core 1.04-2.24 Ghz/ 4W
X5-E8000: Quad core 1.04-2 Ghz/ 5W

Memory
RAM
0 GB
RAM Type
2x DDR3L SODIMM Modules up to 8GB
Primary Flash
SATA
BIOS/ Bootloader
AMI UEFI BIOS @ 64 Mb
Memory Misc.

Up to 8GB dual channel DDR3L in 2x memory sockets

Primary IO
GPIO
8-bit GPIO
Disk Interface
2x SATA III
Audio
HD audio interface
Video Out
LVDS & 2x DDI ports support configurable HDMI/DVI/DP
Ethernet
2x 10/100/1000 Mbps Intel I211
USB
4x USB 3.0 & 8x USB 2.0
Serial Ports
2x COM ports
Secondary IO
Expansion
Bus Expansion
COM Express R2.1 Type 6 pin out
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT
SOM Type
COM Express Modules

Mechanical and Environmental


Dimensions
Size
3.74" ×3.74" (94mm × 94mm)
Power Requirements
Power Misc.

Vin: 4.75 V (5-5%) ~ 20 V (19+5%), VSB: 5 V ±5%, RTC Battery: 2.0-3.3 V

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SOM-6868AC-S0 SOM-6868AC-S0A1E, X5-E8000 4x1.04GHz, SODIMM, 2xSATA, 2xCOM, 4x USB3, 8x USB2, GbE, 2x DDI, LVDS $235.00
SOM-6868PC-S6 SOM-6868PC-S6A1E, N3160 4x1.6GHz, SODIMM, 2xSATA, 2xCOM, 4x USB3, 8x USB2, GbE, 2x DDI, LVDS $270.00
SOM-6868RC-S0 SOM-6868RC-S0A1E, N3010 2x1.04GHz, SODIMM, 2xSATA, 2xCOM, 4x USB3, 8x USB2, GbE, 2x DDI, LVDS $235.00
SOM-6868RC-S5 SOM-6868RC-S5A1E, N3060 2x1.6GHz, SODIMM, 2xSATA, 2xCOM, 4x USB3, 8x USB2, GbE, 2x DDI, LVDS $235.00
SOM-6868RC-S6 SOM-6868RC-S6A1E, N3160 4x1.6GHz, SODIMM, 2xSATA, 2xCOM, 4x USB3, 8x USB2, GbE, 2x DDI, LVDS $250.00
