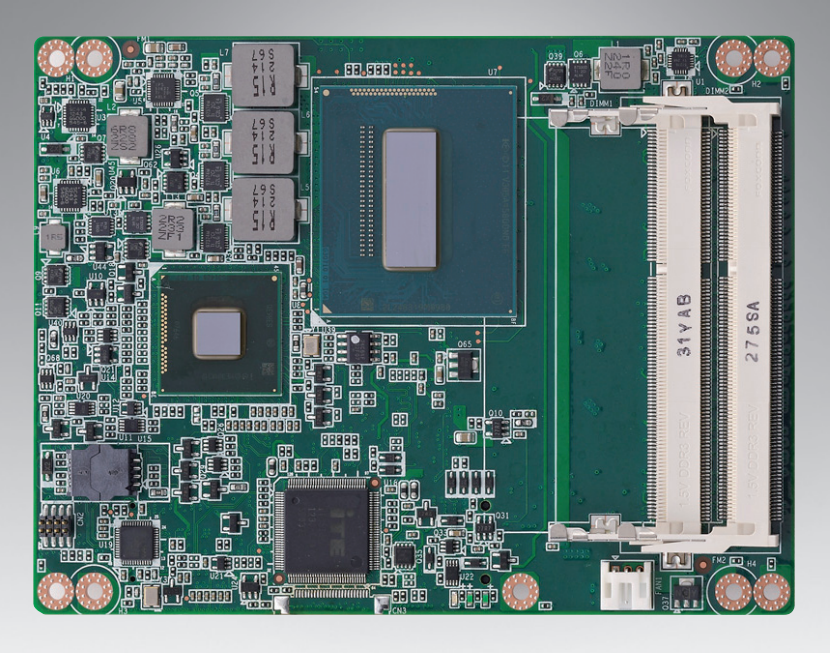

SOM-5894


  • 4th Generation Intel® Core™ Processors H-series + QM87
  • up to 16 GB DDR3L two SODIMM sockets
  • ƒTriple displays with outstanding graphics performance
  • ƒMultiple high speed interface, SATA III, USB3.0 and PCIe Gen3

Receive consultation or quotes about this product from our sales staff.

Request a quote

SOM-5894 is a COM-Express Basic module with pin-out Type 6 that fully complies with the PICMG (PCI Industrial Computer Manufactures Group) COM.0 R2.1 specification. The CPU module incorporates an Intel 4th Generation Core i processor, PCH QM87, and other peripheral chips. The latest Intel processor uses 22nm and 3D Trigate transistor technologies that brings 13% performance improvement over previous versions, and integrates a powerful Intel HD Graphic 4600 as well as DX11.1, OpenCL1.2, OpenGL4.0 API enabling better display configurations with no bandwidth limitations.

Features


  • 4th Generation Intel® Core™ Processors H-series + QM87
  • up to 16 GB DDR3L two SODIMM sockets
  • ƒTriple displays with outstanding graphics performance
  • ƒMultiple high speed interface, SATA III, USB3.0 and PCIe Gen3

Board Information

  • Pin Definition: PICMG COM.0 R2.1 Type 6 pin-out definition
  • Form Factor: PICMG COM.0 R2.1 Basic Module 125 x 95 mm

System Information

  • CPU: 4th Generation Intel® Core Processor
  • Chipset: Intel® QM87 Express Chipset
  • Memory: 2 SODIMM Socket for DDR3L-1600/1333, up to 16GB
  • BIOS: AMI UEFI 128Mbit SPI BIOS
  • Power management: Supports power saving modes including Normal / Standby / Suspend modes. ACPI 2.0 compliant

Display

  • Graphic Core: Intel® HD Graphic 4600 supports DX11.1, OGL4.0, OCL1.2, and MPEG2, AVC/H.264, VC-1 HW decode/encode/transcode acceleration
  • VGA: Resolution up to 1920 x 1200
  • LVDS: Supports single/dual channel 18/24-bit, resolution up to 1920 x 1200 @
  • 60 Hz
  • HDMI/DVI/DP: Supports 3 ports HDMI (default), DVI, or DP multiplexed
  • Resolution:
  • – HDMI up to 4096 x 2160 @24 Hz
  • – DVI up to 1920 x 1080 @ 60 Hz
  • – DP up to 4096 x 2160 @ 24 Hz
  • Dual Display:
  • – VGA + LVDS,
  • – VGA + HDMI/DVI/DP
  • – LVDS + HDMI/DVI/DP
  • – HDMI/DVI/DP + HDMI/DVI/DP
  • Triple Display:
  • – LVDS + DP + DP/HDMI
  • – LVDS + DP + VGA
  • – LVDS + HDMI + HDMI
  • – DP + DP + DP
  • – DP + HDMI +HDMI
  • – DVI + DP + HDMI
  • – VGA + DP + HDMI

Expansion Interface

  • PCI Express x16: Supports default 1 port PCIe x16 compliant to PCIe Gen3* (8.0 GT/s) specification, several configurable combinations may need BOM modifies.
  • PCI Express x1: Support default 7 ports PCIe x1 compliant to PCIe Gen2* (5.0 GT/s) specification, several configurable combinations may need BIOS modifies.
  • Audio Interface: Intel HD Audio interface
  • LPC Bus
  • SMBus
  • I2C Bus: 100 KHz (up to 400 KHz with BIOS modification. Please contact
  • Advantech sales or FAE for more details)
  • SPI: Supports SPI BIOS only

I/O

  • Ethernet: Intel I217LM Gigabit LAN supports 10/100/1000 Mbps Speed
  • SATA: Supports 4 ports SATA Gen3 (6 Gb/s)
  • USB Interface: Supports 4 ports USB3.0, 8 ports USB 2.0
  • Serial Port: Supports 2 ports 2-wire serial port
  • Express Card: 2 ports
  • Panel Control: Supports panel backlight on/off control, brightness control
  • Thermal Protection: Supports thermal shutdown or CPU throttling
  • Watchdog Timer: 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer
  • Smart Fan: 1 port on Module, 1 port down to carrier board
  • GPIO: 8-bit GPIO
  • Hardware Monitor: Vin, 5 VSB, CMOS
  • TPM: BOM option, default not available

Overview


SOM-5894 is a COM-Express Basic module with pin-out Type 6 that fully complies with the PICMG (PCI Industrial Computer Manufactures Group) COM.0 R2.1 specification. The CPU module incorporates an Intel 4th Generation Core i processor, PCH QM87, and other peripheral chips. The latest Intel processor uses 22nm and 3D Trigate transistor technologies that brings 13% performance improvement over previous versions, and integrates a powerful Intel HD Graphic 4600 as well as DX11.1, OpenCL1.2, OpenGL4.0 API enabling better display configurations with no bandwidth limitations. With Intel PCH QM87, SOM-5894 provides advanced interfaces such as PCI Express Gen 3, SATA Gen 3, and USB3.0. Moreover, PCIe x16 can be used in combination of x4 or x8 to make it more flexible.

With top performance and lower power consumption, various extensions and I/O interfaces, SOM-5894 is suitable for computing intensive design, thermal sensitive design, graphics/media insensitive design, and I/O demanding applications.

Manuals
SOM-5894_User_Manual_Ed.2.PDF
Data Sheets
SOM-5894_DS.pdf

Specifications


Processor
CPU
4th Generation Intel® Core™ Processors H-series
Clock Speed
2.7 GHz
Processor Misc.

4th Generation Intel® Core™ Processors H-series

  • i7-4700EQ, Quad Core 2.4 GHz/47W
  • i5-4400E, Dual Core 2.7 GHz/37W
  • i5-4402E, Dual Core 1.6 GHz/25W
  • i3-4100E, Dual Core 2.4 GHz/37W
  • i3-4102E, Dual Core 1.6 GHz/25W
  • 2000E, Dual Core 2.2 GHz/37W
  • 2002E, Dual Core 1.5 GHz/25
Memory
RAM
16 GB
RAM Type
2x DDR3L SODIMM Modules 1333/1600
BIOS/ Bootloader
AMI EFI
Memory Misc.

DDR3L, 1.35V, 1333/1600 MHz

Dual 204P SODIMM 16 GB max

Primary IO
GPIO
8x GPIO
Disk Interface
4x SATA III supports RAID 0/1/5/10
Audio
Intel HD Audio
Video Out
VGA, LVDS and 3x DDI (HDMI/DVI/DP)
Ethernet
Intel i217 Gigabit
USB
4x USB 3.0 & 8x USB 2.0
Serial Ports
2x COM (2-Wire)
Secondary IO
Expansion
Bus Expansion
COM Express Type 6
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7
SOM Type
COM Express Modules

Mechanical and Environmental


Dimensions
Size
4.92" ×3.74" (124mm × 94mm)
Dimensions Misc.
Dimensions 125 x 95 mm (4.92" x 3.74")
Power Requirements
Power Misc.
  • Type ATX: Vin, VSB, AT: Vin
  • Supply Voltage Vin: 8.5(9-5%)~20V(19+5%), VSB: 5V±5%, RTC Battery: 2.0-3.3V
  • Power Consumption (Max.) (8G DDR3L 1600) i7-4700EQ: +12V @ 42.12W
  • Power Consumption (Idle) (8G DDR3L 1600) i7-4700EQ: +12V @ 8.52W
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%
Environmental Misc.
Optional operating Temperature range- -40 ~ 85° C

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SOM-5894C3-S7A SOM-5894C3-S7A1E, COMe-T6, i3-4102E 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $665.00
SOM-5894C3-U5A SOM-5894C3-U5A1E, COMe-T6, i3-4100E 2x2.4GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $665.00
SOM-5894C3-U5B SOM-5894C3-U5B1E, COMe-T6, i3-4100E 2x2.4GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $665.00
SOM-5894C3Z-S7A SOM-5894C3Z-S7A1E, COMe-T6, i3-4102E 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS (-20~80C) $925.00
SOM-5894C3Z2-S7A SOM-5894C3Z2-S7A1E, COMe-T6, i3-4102E 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS (-40~85C) $1035.00
SOM-5894C5-S6A SOM-5894C5-S6A1E, COMe-T6, i5-4402E 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $825.00
SOM-5894C5-S6B SOM-5894C5-S6B1E, COMe-T6, i5-4402E 2x1.6GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $825.00
SOM-5894C5-U7A SOM-5894C5-U7A1E, COMe-T6, i5-4400E 2x2.7GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $825.00
SOM-5894C5Z-S6A SOM-5894C5Z-S6A1E, COMe-T6, i5-4402E 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS (-20~80C) $1150.00
SOM-5894C5Z-S6B SOM-5894C5Z-S6B1E, COMe-T6, i5-4402E 2x1.6GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS (-20~80C) $1150.00
SOM-5894C5Z2-S6A SOM-5894C5Z2-S6A1E, COMe-T6, i5-4402E 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS (-40~85C) $1260.00
SOM-5894C5Z2-S6B SOM-5894C5Z2-S6B1E, COMe-T6, i5-4402E 2x1.6GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS (-40~85C) $1260.00
SOM-5894C7-U4A SOM-5894C7-U4A1E, COMe-T6, i7-4700EQ 4x2.4GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $990.00
SOM-5894C7-U4B SOM-5894C7-U4B1E, COMe-T6, i7-4700EQ 4x2.4GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $990.00
SOM-5894CR-S5A SOM-5894CR-S5A1E, COMe-T6, Celeron 2002E 2x1.5GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $485.00
SOM-5894CR-U2A SOM-5894CR-U2A1E, COMe-T6, Celeron 2000E 2x2.2GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDDI, VGA, 2xLVDS $485.00

Peripheral Options


Product # Description Price
Peripherals
PER-FAN-00014-R COM-Express Basic Semi-cooler 125x95x33.5 mm with 12v fan $40.00
