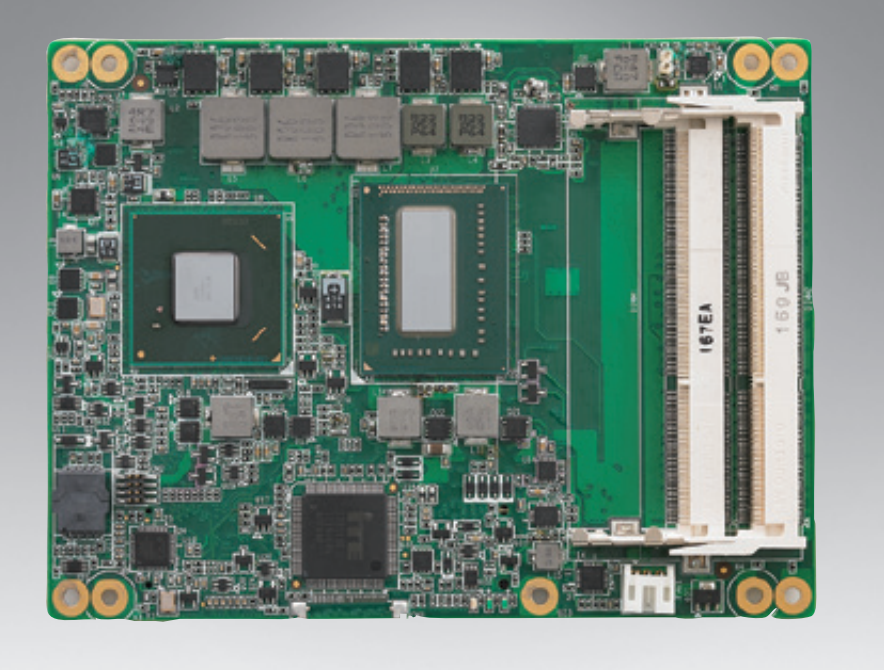

SOM-5892


  • Intel® Core™ i7/i5/i3/Celeron® processor
  • ƒup to 16 GB DDR3L memory
  • 2x SATAIII & 2x SATAII
  • 8x USB 2.0, 4x USB 3.0
  • Gigabit Ethernet
  • Supports 3 independent displays

Receive consultation or quotes about this product from our sales staff.

Request a quote

SOM-5892 is a COM-Express Basic module with pin-out Type 6 that fully complies with the PICMG (PCI Industrial Computer Manufactures Group) COM.0 R2.0 specification. The CPU module builds Intel 3rd Generation Core i processor Ivy Bridge, PCH QM77, and other peripheral chips to fulfill COM specified functionalities. Intel Ivy Bridge uses 22nm and 3D Tri-gate Transistor technologies that brings 15% performance improvement than previous, and integrates powerful Intel HD Graphic 4000 that supports AVC/H.264, VC-1, and MPEG2 hardware encode/decode/transcode.

Features


  • Embedded Intel® Core™ i7/i5/i3/Celeron® processor + QM77
  • ƒSupports up to 16 GB Dual Channel DDR3-1600/DDR3L-1333 SODIMM memory in two sockets
  • ƒSupports PCIe x16, 7x PCIe x1
  • SATA drive ports: 2x SATAIII, 2x SATAII
  • USB ports: 8x USB 2.0, 4x USB 3.0
  • Gigabit ethernet
  • Supports 3 independent displays: VGA, LVDS, DVI, HDMI, DisplayPort

Board Information-

  • Pin Definition: PICMG COM.0 R2.0 Type 6 pin-out definition
  • Form Factor: PICMG COM.0 R2.0 Basic Module 125 x 95 mm
  • CPU: 3rd Generation Intel® Core Processor
  • Chipset: Intel® QM77 Express Chipset
  • Memory: 2 SODIMM Socket for DDR3-1600 or DDR3L-1333, up to 16GB
  • BIOS: AMI UEFI 64Mbit SPI BIOS
  • Power management: Supports power saving modes including Normal /
  • Standby / Suspend modes. ACPI 2.0 compliant

Display-

  • Graphic Core: Intel® HD Graphic 4000 supports DX11, OGL3.1, OCL1.1, and MPEG2, AVC/H.264, VC-1 HW decode/encode/transcode acceleration
  • VGA: Resolution up to 2048 x 1536
  • LVDS: Supports single/dual channel 18/24-bit, resolution up to 1920 x 1200 @
  • 60 Hz
  • HDMI/DVI/DP: Supports 3 ports HDMI (default), DVI, or DP multiplexed (BIOS
  • modification needed).
  • Resolution: HDMI/DVI up to 1920 x 1200 @ 60 Hz
  • DP up to 2560 x 1600 @ 60 Hz
  • Dual Display: VGA + LVDS, VGA + HDMI/DVI/DP, LVDS + HDMI/DVI/DP,
  • HDMI/DVI/DP + HDMI/DVI/DP
  • Triple Display: LVDS + DP + DP

Expansion Interface -

  • PCI Express x16: Supports default 1 port PCIe x16 compliant to PCIe Gen2* (5.0 GT/s) specification, several configurable combinations may need BOM reworks.
  • PCI Express x1: Supports default 7 ports PCIe x1 compliant to PCIe Gen2* (5.0 GT/s) specification, several configurable combinations may need BIOS modification.
  • Audio Interface: Intel HD Audio interface
  • LPC Bus
  • SMBus
  • I2C Bus: Up to 400 KHz
  • SPI: Supports SPI BIOS only

I/O-

  • Ethernet: Intel 82579LM Gigabit LAN supports 10/100/1000 Mbps Speed
  • SATA: Supports 2 ports SATA Gen3 (600 Gb/s), 2 ports SATA Gen2 (300 Gb/s)
  • USB Interface: Supports 4 USB 3.0 ports, 8 USB 2.0 ports
  • Serial Port: Supports 2 x 2-wire serial ports
  • Express Card: 2 ports
  • Panel Control: Supports panel backlight on/off control, brightness control
  • Thermal Protection: Supports thermal shutdown or CPU throttling
  • Watchdog Timer: 65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer
  • Smart Fan: 1 port on Module, 1 port down to carrier board
  • GPIO: 8 GPIO
  • Hardware Monitor: Vin, 5VSB, CMOS
  • TPM: BOM option, default not support

Mechanical and Environmental Specification-

  • Dimensions: 125 x 95 mm (4.92" x 3.74")
  • Power Type and Supply Voltage:
  • – ATX: +12 V and +5 VSB (standby power)
  • – AT: +12 V
  • – CMOS Battery: +3.3 V
  • Power Requirement:
  • – Test condition: SOM-5892FG-U1A1E (i7-3612QE), DDR3-1333 4GB, WIN7
  • 32-bit, under 12 V and 5VSB input power supply.
  • – Idle: 6.6 W
  • – Max: 36 W (Burn-in V6.0 Pro)
  • Temperature Specification:
  • – Operating: 0 ~ 60° C (32 ~ 140 ° F)
  • – Storage: -40 ~ 85° C (-40 ~ 185° F)
  • Humidity Specification:
  • – Operating: 40° C @ 95% relative humidity, non-condensing
  • – Storage: 60° C @ 95% relative humidity, non-condensing

Overview


SOM-5892 is a COM-Express Basic module with pin-out Type 6 that fully complies with the PICMG (PCI Industrial Computer Manufactures Group) COM.0 R2.0 specification. The CPU module builds Intel 3rd Generation Core i processor Ivy Bridge, PCH QM77, and other peripheral chips to fulfill COM specified functionalities. Intel Ivy Bridge uses 22nm and 3D Tri-gate Transistor technologies that brings 15% performance improvement than previous, and integrates powerful Intel HD Graphic 4000 that supports AVC/H.264, VC-1, and MPEG2 hardware encode/decode/transcode.
With Intel PCH QM77, SOM-5892 provides advance interfaces such as PCI Express Gen 3rd, SATA Gen 3rd, and USB3.0. Moreover, it is the first embedded chipset which can support 3 display contents simultaneously.

SOM-5892 is suitable for computing intensive, thermal sensitive, graphics/media insensitive, and I/O demanding applications.

Manuals
SOM-5892_user_manual_ed.1.PDF
Data Sheets
SOM-5892_DS.pdf

Specifications


Processor
CPU
Intel® Core™ i7/i5/i3/Celeron® processor
Clock Speed
2.5 GHz
Processor Misc.

Embedded Intel® Core™ i7/i5/i3/Celeron® processor

  • i7-3615QE, Quad Core 2.3 GHz/ 45W
  • i7-3612QE, Quad Core 2.1 GHz/ 35W
  • i7-3555LE, Dual Core 2.5 GHz/ 25W
  • i7-3517UE, Dual Core 1.7 GHz/ 17W
  • i5-3610ME, Dual Core 2.7 GHz/ 35W
  • i3-3120ME, Dual Core 2.4 GHz/ 35W
  • i3-3217UE, Dual Core 1.6 GHz/ 17W
  • 1020E, Dual Core 2.2 GHz/ 35W
  • 1047UE, Dual Core 1.4 GHz/ 17W
  • 927UE, Single core 1.5 GHz/ 17W
Memory
RAM
16 GB
RAM Type
2x DDR3L SODIMM Modules 1333/1600
BIOS/ Bootloader
AMI EFI
Primary IO
GPIO
8x GPIO
Disk Interface
2x SATA III & 2x SATA II
Audio
HD Audio
Video Out
VGA, LVDS, DVI, HDMI, DP, & 2x LVDS
Ethernet
Intel 82579LM Gigabit Ethernet
USB
4x USB 3.0 & 8x USB 2.0
Serial Ports
2x COM
Secondary IO
Expansion
Bus Expansion
COM Express Basic
Bus Misc.
  • PCI Express x1: Supports default 7 ports PCIe x1 compliant to PCIe Gen2* (5.0 GT/s) specification, several configurable combinations may need BIOS modification. Please contact Advantech sales or FAE for more details.
  • LPC Bus
  • SMBus
  • I2C Bus: Up to 400 KHz
  • SPI: Supports SPI BIOS only
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7
SOM Type
COM Express Modules

Mechanical and Environmental


Dimensions
Size
4.92" ×3.74" (124mm × 94mm)
Power Requirements
Voltage
12 V
Power Misc.





Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%
Environmental Misc.
Operating temperatures- Standard- 0 ~ 60° C Wide Temp- -20 ~ 80° C (optional) Industrial- -40 ~ 85° C (optional)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SOM-5892FG-S4A SOM-5892FG-S4A1E, COMe-T6, 1047UE 2x1.4GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $355.00
SOM-5892FG-S6A SOM-5892FG-S6A1E, COMe-T6, i3-3217UE 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $900.00
SOM-5892FG-S6B SOM-5892FG-S6B1E, COMe-T6, i3-3217UE 2x1.6GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $900.00
SOM-5892FG-S7A SOM-5892FG-S7A1E, COMe-T6, i7-3517UE 2x1.7GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $1010.00
SOM-5892FG-U1A SOM-5892FG-U1A1E, COMe-T6, i7-3612QE 4x2.1GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $1165.00
SOM-5892FG-U3A SOM-5892FG-U3A1E, COMe-T6, i7-3615QE 4x2.3GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $1100.00
SOM-5892FG-U3B SOM-5892FG-U3B1E, COMe-T6, i7-3615QE 4x2.3GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $1110.00
SOM-5892FG-U4A SOM-5892FG-U4A1E, COMe-T6, i3-3120ME 2x2.4GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $860.00
SOM-5892FG-U5A SOM-5892FG-U5A1E, COMe-T6, i7-3555LE 2x2.5GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $1055.00
SOM-5892FG-U7A SOM-5892FG-U7A1E, COMe-T6, i5-3610ME 2x2.7GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $925.00
SOM-5892FG-U7B SOM-5892FG-U7B1E, COMe-T6, i5-3610ME 2x2.7GHz, ECC, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI $925.00
SOM-5892Z-S4A SOM-5892Z-S4A1E, COMe-T6, 1047UE 2x1.4GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI (-20~80C) $430.00
SOM-5892Z-S6A SOM-5892Z-S6A1E, COMe-T6, i3-3217UE 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI (-20~80C) $1200.00
SOM-5892Z-S7A SOM-5892Z-S7A1E, COMe-T6, i7-3517UE 2x1.7GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI (-20~80C) $1310.00
SOM-5892Z-U5A SOM-5892Z-U5A1E, COMe-T6, i7-3555LE 2x2.5GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI (-20~80C) $1355.00
SOM-5892Z2-S4A SOM-5892Z2-S4A1E, COMe-T6, 1047UE 2x1.4GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI(-40~85C) $530.00
SOM-5892Z2-S6A SOM-5892Z2-S6A1E, COMe-T6, i3-3217UE 2x1.6GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI (-40~85C) $1300.00
SOM-5892Z2-S7A SOM-5892Z2-S7A1E, COMe-T6, i7-3517UE 2x1.7GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI (-40~85C) $1410.00
SOM-5892Z2-U5A SOM-5892Z2-U5A1E, COMe-T6, i7-3555LE 2x2.5GHz, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE, 3xDP, 3xVGA/LVDS/DVI (-40~85C) $1455.00

Peripheral Options


Product # Description Price
Peripherals
PER-FAN-00014-R COM-Express Basic Semi-cooler 125x95x33.5 mm with 12v fan $40.00
