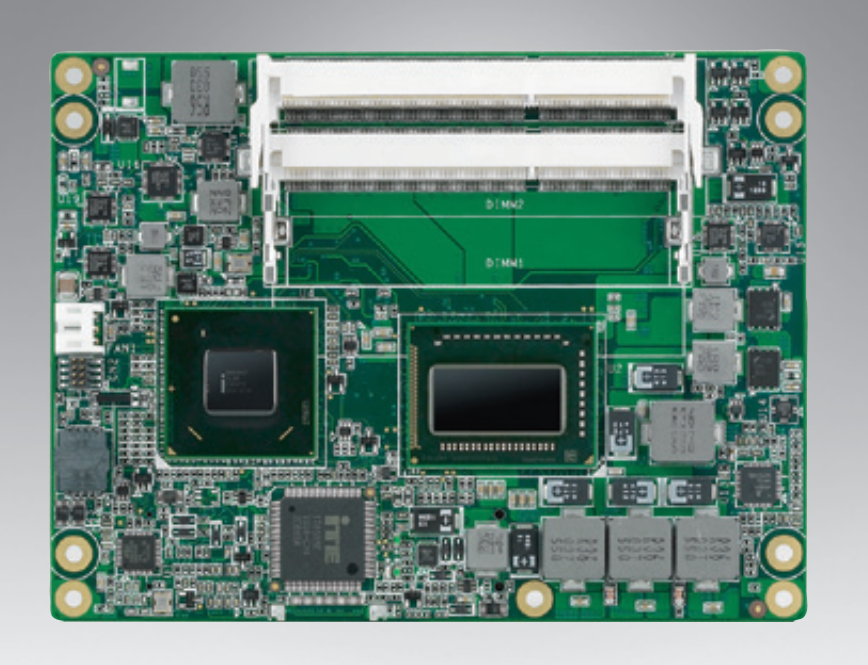

SOM-5890


  • Intel® Core™ i7/i5/i3/Celeron® processor
  • Intel® Gfx supports VGA, 18/24-bit 2-CH LVDS, HDMI, DVI, DP
  • Supports Dual Channel DDR3-1333 SODIMM sockets up to 16 GB

Receive consultation or quotes about this product from our sales staff.

Request a quote

SOM-5890 is a COM-Express basic module with Type 6 pin-out that fully complies with the PCI Industrial Computer Manufacturers PICMG COM Express standard. The new CPU module integrates Intel 2nd Generation Core i7, i5, i3, and Celeron processors (code name Sandy Bridge) which support Intel 6th generation graphics core with AVC/VC1/MPEG2 HW decode. It also integrates QM67 (codename Cougar Point) chipset which provides state-of-the-art interface such as PCI Express Gen 2 and SATA Gen3.

Features


  • ƒ Intel® Core™ i7/i5/i3/Celeron® processor
  • ƒ Intel® Gfx supports VGA, 18/24-bit 2-CH LVDS, HDMI, DVI, DP
  • ƒ Supports Dual Channel DDR3-1333 SODIMM sockets up to 16 GB

Standard System On Module functions

  • Processor: Intel® Core™ i7/i5/i3 and Celeron processors
  • BIOS: AMI EFI 8MB Flash
  • Chipset: Intel® QM67 Chipset
  • Intel Smart Cache:
  • – Intel® Core i7: 6 MB (Quad Core) or 4 MB (Duo Core) Smart Cache
  • – Intel® Core i5/i3: 3 MB Smart Cache
  • – Intel® Celeron: 2 MB Smart Cache
  • System memory: 2 204-pin SODIMM support non-ECC (A version) or ECC (B version) DDR3-1066/1333 up to 16GB
  • Power management: Supports enhanced Intel SpeedStep technology, S0, S3, S4, S5, C0, C1, C1E, C3, C6, C7, and ACPI/APM.
  • SATA interface: 2 SATAIII channel up to 600MB/s and 2 SATAII channel up to 300MB/s
  • Watchdog timer: 65536 levels timer interval, from 0 to 65535 sec multi-level and multi-option WatchDog Timer
  • USB interface: Supports 8 USB 2.0 ports
  • Expansion Interface: Supports PEG x16, 7 PCIe x1 (PCIe x4 option), LPC, SMBus, I2C

Display Interface

  • Chipset: Intel Core i processor integrated 6th generation graphics core with 12 execution units. Support DX10.1, Open GL 3.0, full VC/VC1/MPEG2 HW Decode
  • Display type: VGA, LVDS, HDMI, DVI, Displayport

Display mode:

  • – VGA port: 2048x1536
  • – LVDS: Dual Channel 18/24-bit
  • – HDMI/DVI: 1920x1200
  • – Displayport: 2560x1600
  • – GMA driver supports up to 2 independent displays
  • – Four independent display supported with hybrid multi-monitor capability (integrated and discrete graphics working simultaneously).

Ethernet

  • Chipset: Intel 82579LM Gigabit Ethernet. Base on IEEE 10BASE-T, 100BASETX and 1000BASE-T standard.

Mechanical and environmental

  • Dimensions: COM-Basic form-factor, 125 mm x 95 mm (4.92" x 3.74")
  • Power supply voltage: +12 V power only (+5 VSB is need for ACPI and ATX power)
  • Power requirement: SOM-5890FG-U1B1E w/ DDR3-1333 2GB ECC Memory
  • 3.57A @ +12V
  • Operating temperature: 0 ~ 60° C (32 ~ 140° F)
  • Operating humidity: 0% ~ 90% relative humidity, non-condensing
  • Weight: 0.103 Kg (weight of total package)

Overview


SOM-5890 is a COM-Express basic module with Type 6 pin-out that fully complies with the PCI Industrial Computer Manufacturers PICMG COM Express standard. The new CPU module integrates Intel 2nd Generation Core i7, i5, i3, and Celeron processors (code name Sandy Bridge) which support Intel 6th generation graphics core with AVC/VC1/MPEG2 HW decode. It also integrates QM67 (codename Cougar Point) chipset which provides state-of-the-art interface such as PCI Express Gen 2 and SATA Gen3. In a basic form factor of 125mm x 95mm, the SOM-5890 provides a scalable high performance and easy to integrate solution for customers’ applications by utilizing a plug-in CPU module on an application-specific customer solution board.
The SOM-5890 with advanced I/O capacity incorporates serial differential signaling technologies such as PCI Express, Serial ATA, USB 2.0, LVDS and HDMI/DVI/Displayport interfaces. SOM-5890 offers design partners more choices for their own applications needing higher computing speeds while maintaining a basic form factor.
SOM-5890 complies with the "Green Function" standard and supports Doze, Standby and Suspend modes. The small size (125 mm x 95 mm) and use of two high capacity connectors based on the proven COM-Basic form factor, allows the COMbasic modules to be easily and securely mounted onto a customized solution board or our standard SOM-DB5700 development board.
The SOM-5890 is a highly integrated multimedia COM module that combines audio, video, and network functions. It provides excellent processing capability via Intel 2nd Gen Core i processor, dual channel LVDS, HDMI, DVI,and Displayport for multi-display, DDR3 non-ECC or ECC memory (A or B version respectively) up to 16 GB, and high definition audio interfaces.

Manuals
SOM-5890_user_manual_Ed1.pdf
Data Sheets
SOM-5890_DS.pdf

Specifications


Processor
CPU
Embedded Intel Core i7/i5/i3/Celeron® processor
Clock Speed
2.5 GHz
Processor Misc.

Embedded Intel® Core™ i7/i5/i3/Celeron® processor + QM67

  • i7-2715QE Quad Core 2.1 GHz/ 45W
  • i7-2655LE: Dual Core 2.2 GHz/ 25W
  • i7-2610UE: Dual Core 1.5 GHz/ 17W
  • i5-2515E: Dual Core 2.5 GHz/ 35W
  • i3-2310E: Dual Core 2.1 GHz/ 35W
  • i3-2340UE: Dual Core 1.3 GHz/ 17W
  • B810E: Dual Core 1.6 GHz/ 35W
  • 847E : Dual Core 1.1 GHz/ 17W
  • 827E : Single Core 1.4 GHz/ 17W
Memory
RAM
16 GB
RAM Type
2x DDR3 SODIMM
BIOS/ Bootloader
AMI EFI
Memory Misc.
  • Technology DDR3 1066/1333 MHz
  • ECC Support A1 Series - not supported, B1 Series - supported
  • Max. Capacity 16 GB
  • Socket 2 x 204-pin SODIMM sockets
Primary IO
GPIO
8x GPIO
Disk Interface
2x SATA III / 2x SATAII
Audio
High definition audio interface
Video Out
VGA, 2x LVDS, & 3x DDI ports (configurable HDMI/DVI/DisplayPort)
Ethernet
Intel 82579LM Gigabit Ethernet
USB
8 x USB 2.0
Serial Ports
2x COM
Secondary IO
Expansion
Bus
COM Express
Bus Misc.
  • 1x PEG x16,
  • 7x PCIe x1
  • LPC
  • SPI
  • SMBus
  • I2C
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7
SOM Type
COM Express Modules

Mechanical and Environmental


Dimensions
Size
4.92" ×3.74" (124mm × 94mm)
Dimensions Misc.
Dimensions 125 x 95 mm (4.92" x 3.74")

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SOM-5890FG-S1A SOM-5890FG-S1A1E, COMe-T6, 847E 2x1.1GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $665.00
SOM-5890FG-S3A SOM-5890FG-S3A1E, COMe-T6, i3-2340UE 2x1.3GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $900.00
SOM-5890FG-S4A SOM-5890FG-S4A1E, COMe-T6, 827E 2x1.4GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $625.00
SOM-5890FG-S5A SOM-5890FG-S5A1E, COMe-T6, i7-2610UE 2x1.5GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $1010.00
SOM-5890FG-S5B SOM-5890FG-S5B1E, COMe-T6, i7-2610UE 2x1.5GHz, ECC, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $965.00
SOM-5890FG-S6A SOM-5890FG-S6A1E, COMe-T6, B810E 2x1.6GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $590.00
SOM-5890FG-U0A SOM-5890FG-U0A1E, COMe-T6, i3-2310E 2x2.1GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $860.00
SOM-5890FG-U1A SOM-5890FG-U1A1E, COMe-T6, i7-2715QE 4x2.1GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $1110.00
SOM-5890FG-U1B SOM-5890FG-U1B1E, COMe-T6, i7-2715QE 4x2.1GHz, ECC, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $1085.00
SOM-5890FG-U2A SOM-5890FG-U2A1E, COMe-T6, i7-2655LE 2x2.2GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $1055.00
SOM-5890FG-U2B SOM-5890FG-U2B1E, COMe-T6, i7-2655LE 2x2.2GHz, ECC, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $1020.00
SOM-5890FG-U5A SOM-5890FG-U5A1E, COMe-T6, i5-2515E 2x2.5GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $925.00
SOM-5890FG-U5B SOM-5890FG-U5B1E, COMe-T6, i5-2515E 2x2.5GHz, ECC, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS $875.00
SOM-5890Z-S5A SOM-5890Z-S5A1E, COMe-T6, i5-2515E 2x2.5GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS(-20~80C) $1310.00
SOM-5890Z2-S5A SOM-5890Z2-S5A1E, COMe-T6, i5-2515E 2x2.5GHz, 2xSATA, 2xCOM, 8xUSB2, GbE, 3xDP, LVDS(-40~85C) $1410.00

Peripheral Options


Product # Description Price
Peripherals
PER-FAN-00014-R COM-Express Basic Semi-cooler 125x95x33.5 mm with 12v fan $40.00
