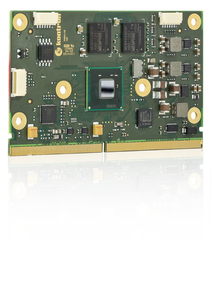

ROM-51006 SMARC-sXQU


  • Intel® Quark™
  • up to 1GB DDR3L onboard
  • 2x PCIe, 2x serial, SDIO
  • up to 2x 10/100 Ethernet
  • Industrial grade temperature

Receive consultation or quotes about this product from our sales staff.

Request a quote

The SMARC-sXBTi Computer-on-Modules have been developed in compliance with the SGET specification and equipped with Intel® Quark™ X1000 series processors, as well as up to 1 GB DDR3 RAM, with the option of ECC. They support the extended temperature range from -40 °C to +85 °C and measure only 82 mm x 50 mm. Other interfaces include 2x 10/100 MBit Ethernet LAN (1x via AFB signals), 1x USB 2.0 Client und 2x USB 2.0 Host. Customer-specific upgrades can be implemented via SDIO and 2x PCIe and 2x serial.

Features


  • Intel® Quark™
  • up to 1GB DDR3L memory down (ECC optional with X1021)
  • 2x PCIe, 2x serial, SDIO
  • 1x LAN (10/100MBit) + 1 LAN (10/100, via AFB signals)
  • Industrial grade temperature
  • SD Card Support

Overview


The SMARC-sXBTi Computer-on-Modules have been developed in compliance with the SGET specification and equipped with Intel® Quark™ X1000 series processors, as well as up to 1 GB DDR3 RAM, with the option of ECC. They support the extended temperature range from -40 °C to +85 °C and measure only 82 mm x 50 mm. Other interfaces include 2x 10/100 MBit Ethernet LAN (1x via AFB signals), 1x USB 2.0 Client und 2x USB 2.0 Host. Customer-specific upgrades can be implemented via SDIO and 2x PCIe and 2x serial. The power supply is only 3V- 5.25 V.

Manuals
SMARC-sXQu_manual.pdf
Data Sheets
ROM-51006-datasheet_smarc-sxqu.pdf

Specifications


Processor
CPU
Intel Quark
Clock Speed
400 MHz
Processor Misc.

Intel Quark SOC

  • x1000: Single Core 400MHz/2.2W
  • x1010: Single Core 400MHz/2.2W
  • x1021: Single Core 400MHz/2.2W
Memory
RAM
1 GB
RAM Type
Onboard DDR3
Primary Flash
SD Card Support
BIOS/ Bootloader
Grub
Primary IO
GPIO
12x GPIO
SDIO
1x SDIO
Disk Interface
SD Card Support
Audio
n/a
Video Out
n/a
Ethernet
2x 10/100 Ethernet
USB
2x USB 2.0 & 1x USB client
Serial Ports
2x COM
Secondary IO
SPI
2x SPI
I2C
4x I2C Ports
Expansion
Bus
SMARC
Bus Misc.

SMARC

2x PCIe x1 lanes

Misc
Operating Systems
EMAC OE Linux, Yocto
SOM Type
Microcontroller SODIMM Modules

Mechanical and Environmental


Dimensions
Size
3.23" ×1.97" (82mm × 50mm)
Dimensions Misc.
Module Dimension » 50mm x 82mm
Power Requirements
Power Misc.

3V - 5.25V Operates directly from single level Lithium Ion cells or fixed 3.3V or 5V power supplies

Typical power draw ~2W

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
93%
Environmental Misc.
0°C to +60°C operating, -40°C to +85°C non-operating -40°C to +85°C operating, -40°C to +85°C non-operating (with X1021 only)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
ROM-51006-041-R 51006-0200-04-1, SMARC-sXQU, X1000, 256MB DDR3, 2xCOM, 2xUSB2, 2xLAN, I2C, SPI (0~60C) $96.00
ROM-51006-042-R 51006-0500-04-2, SMARC-sXQU, X1010, 512MB DDR3 ECC, 2xCOM, 2xUSB2, 2xLAN, I2C, SPI (0~60C) $100.00
ROM-51006-044-R 51006-1000-04-4, SMARC-sXQUi, X1021, 1GB DDR3 ECC, 2xCOM, 2xUSB2, 2xLAN, I2C, SPI (-40~85C) $130.00

Peripheral Options


Product # Description Price
Peripherals
PER-FAN-00101-R Heat spreader for SMARC-sXQU $40.00
PER-HDW-00001-R Mounting Kit for SMARC Module (screws) $5.00
