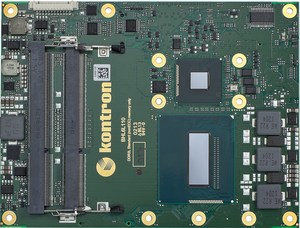

COM-3802 COM-bHL6
- Intel® 4th Generation Core™ series CPU
- Up to 16GB non-ECC DDR3L up to 16GB
- Triple independent diplay support
- Up to 4k resolutions
The brand new application-ready COMe-bHL6 offers increased performance density and up to twice the graphics performance compared to its predecessors. Up to three independent, daisy-chained displays with up to 4K resolution are supported to create stunning user experiences. Further to this, DirectX® 11.1 and OpenGL 4.0 support paves the way for compelling visuals when videos, graphics and interactive content are being displayed.
Features
- Intel® 4th Generation Core™ i7/i5/i3/Celeron series with QM87/HM86 PCH
- Up to 16GB non-ECC DDR3L up to 16GB
- triple independent diplay support
- up to 4k resolutions
- The COM Express® basic sized Computer-on-Module COMe-bHL6 (BHL6 / BBL6) follows pin-out Type 6 and is compatible to PICMG specification COM.0 Rev 2.1. The COMe-bHL6 based on latest Shark Bay Mobile platform is available in different variants to cover the demand of different performance, price and power:
- Commercial grade modules (0°C to 60°C operating)
- Extended temperature grade modules (E1, -25°C to 75°C operating) and
- Industrial temperature grade modules (XT, -40°C to 85°C operating)
- The COMe-bHL6 is available for extended and industrial temperature range. General capability was tested for following
- options:
- » CPU: all
- » Memory: E2 DDR3L memory only
- » VCC: 12V only, no support for Wide-Range Input
- The RXT product line includes modules with following featureset:
- » industrial grade temperature range (-40 to +85°C) by screening
- » ECC Memory support
- » Rapid Shutdown support
- Processor
- The 22nm Intel® 4th Gen Core™ i7/i5/i3/Celeron® embedded (Haswell-H (Halo) / Crystal Well) CPU family with
- 37.5x32mm package size (BGA1364 socket) see manual for more information on CPU support.
- Integrated Intel® HD Graphics 5200/4600 (Gen7.5)
- The 32nm Intel® 8-Series Platform Controller Hub Lynx Point PCH QM87 or HM86.
Additional features
- » All solid capacitors (POSCAP). No tantalum capacitors used.
- » Optimized RTC Battery monitoring to secure highest longevity
- » Real fast I2C with transfer rates up to 40kB/s.
- » Discharge logic on all onboard voltages for highest reliability
Overview
The brand new application-ready COMe-bHL6 offers increased performance density and up to twice the graphics performance compared to its predecessors. Up to three independent, daisy-chained displays with up to 4K resolution are supported to create stunning user experiences. Further to this, DirectX® 11.1 and OpenGL 4.0 support paves the way for compelling visuals when videos, graphics and interactive content are being displayed. By integrating the new Intel® AVX2 and OpenCL 1.2, Ths new Computer-on-Modules additionally not only provide an increase in floating-point performance they also possess improved parallel processing capacities. Typical application areas can be found in markets such as digital signage, professional gaming and entertainment, medical imaging and surveillance and security as well as industrial plant and machine line control on shop floor- and control room-level.
Engineers can immediately commence with evaluating these new benchmark Computer-on-Modules on all COM Express® pin-out type 6-compliant starter kits.
The COM Express® pin-out type 6 COMe-bHL6 module is available in several different variants ranging from the cost-optimized low-power processor versions up to quad-core Intel® Core™ i7 processors with up to 4x 2.4 GHz. The modules are designed with the Intel® Mobile QM87 chipset, host up to 16 GB DDR3L RAM and support 7 PCI Express x1 lanes and 1 PEG x16 interface which is also compatible to standard PCI Express devices. Less complex peripherals can be connected via SPI and LPC. Additional dedicated features include 3x SATA 6Gb/s ports, 1 SATA 3Gb/s port, as well as Gigabit Ethernet, 4 USB 3.0 ports, 4 USB 2.0 and 2 serial ports. The COMe-bHL6 features comprehensive display support with 3x dual mode DisplayPort++ which can also output, HDMI, DVI and DisplayPort 1.2. Industrial applications benefit from the watchdog and real-time clock. The module supports an 8.5-20V wide-range power supply. The support of smart batteries via MARS and the standardized embedded application programming interface EAPI round off the feature set and provide engineers with a comprehensive service package that eases system development as well as system
programming.
| Manuals | |
|---|---|
| COMe-bHL6_Manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| COM-38025-COMe-bHL6_datasheet.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel 4th Generation Core i7/i5/i3/Celeron series |
| Clock Speed | 2.7 GHz |
| Processor Misc. | 4th Generation Intel® Core™ Processors H-series
|
| Memory | |
|---|---|
| RAM | Up to 16GB DDR3L |
| BIOS/ Bootloader | Phoenix Secure Core UEFI |
| Memory Misc. | 2x DDR3L-1600 SO-DIMM up to 8GB each |
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| Disk Interface | 4x SATA |
| Audio | Intel® High Definition Audio |
| Video Out | VGA, LVDS and 3x DDI (HDMI/DVI/DP) |
| Ethernet | Intel i218-LM Gigabit |
| USB | 4x USB 3.0 & 4x USB 2.0 |
| Serial Ports | 2x COM (2-Wire) |
| Primary I/O Misc. | Intel QM87 Chipset on i5 & i7 systems: 4x USB 3.0, 4x USB 2.0, 3x SATA III, 1x SATA II Intel HM86 Chipset on i3 and Celeron systems: 2x USB 3.0, 6x USB 2.0, 2x SATA III, 2x SATA II |
| Secondary IO | |
|---|---|
| Expansion | |
|---|---|
| Bus Expansion | COM Express Type 6 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, WES 7 - Windows Embedded Standard 7 |
| SOM Type | COM Express Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 4.92" ×3.74" (124mm × 94mm) |
| Dimensions Misc. | Dimensions 125 x 95 mm (4.92" x 3.74") |
Pricing
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| COM-38025-015-1 | 38025-0000-15-1, COMe-bHL6, COMe-T6, 2002E 2x1.5GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $435.00 |
| COM-38025-016-3 | 38025-0000-16-3, COMe-bHL6, COMe-T6, i3-4102E, 2x1.6GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $627.00 |
| COM-38025-016-5 | 38025-0000-16-5, COMe-bHL6, COMe-T6, i5-4402E, 2x1.6GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $857.00 |
| COM-38025-016-7 | 38025-0000-16-7, COMe-bHL6, COMe-T6, i7-4850EQ, 4x1.6GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $1280.00 |
| COM-38025-018-7 | 38025-0000-18-7, COMe-bHL6, COMe-T6, i7-4860EQ, 4x1.8GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $1368.00 |
| COM-38025-022-1 | 38025-0000-22-1, COMe-bHL6, COMe-T6, 2000E 2x2.2GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $435.00 |
| COM-38025-024-3 | 38025-0000-24-3, COMe-bHL6, COMe-T6, i3-4100E, 2x2.4GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $627.00 |
| COM-38025-024-7 | 38025-0000-24-7, COMe-bHL6, COMe-T6, i7-4700EQ, 4x2.4GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $1093.00 |
| COM-38025-027-5 | 38025-0000-27-5, COMe-bHL6, COMe-T6, i5-4400E, 2x2.7GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS | $857.00 |
| COM-38026-X18-7 | 38026-0000-18-7, COMe-bHL6RXT, COMe-T6, i7-4860EQ, 4x1.8GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS (-40~85C) | $1900.00 |
| COM-38026-X24-7 | 38026-0000-24-7, COMe-bHL6RXT, COMe-T6, i7-4700EQ, 4x2.4GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS (-40~85C) | $1519.00 |
| COM-38026-X27-5 | 38026-0000-27-5, COMe-bHL6RXT, COMe-T6, i7-4400E, 2x2.7GHz, 2x COM, 4xUSB3, 4xUSB2, GbE, 3x DDI, VGA, LVDS (-40~85C) | $1191.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FAN-00119-R | HSK COMe-bHL6 active (w/o HSP) Active Cooler for COMe-bHL6 to be mounted on HSP | $45.00 |
| PER-FAN-00120-R | HSP COMe-bHL6 heatpipe thread Heatspreader for COMe-bHL6 with heatpipe, threaded mounting holes | $45.00 |
| PER-FAN-00121-R | HSP COMe-bHL6 heatpipe through Heatspreader for COMe-bHL6 with heatpipe, through holes | $45.00 |
| PER-HDW-00002-R | COMe Mount Kit 8mm 1set (screws) | $7.00 |
| PER-HDW-00003-R | COMe Mount Kit 5mm 1set (screws) | $7.00 |
