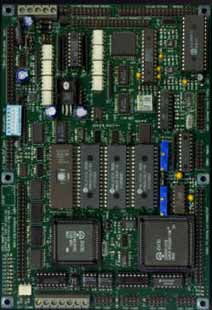

EPAC-3000-G2


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The EPAC 3000 G2 is a high performance, I/O rich, data acquisition and control computer based on the Zilog Z180 processor. The EPAC 3000 G2 is the second generation EPAC 3000, providing the user with additional features and I/O not found on the EPAC 3000. The EPAC 3000 G2 however, still incorporates the key features that make the EPAC 3000 an industrial strength work horse. These features include: two 16 bit timers, large memory space, 16 channel A/D, serial ports, programmable digital I/O lines, twisted pair networking, and more.

Features


  • CENTRAL PROCESSING UNIT: Z180 with 6.144 MHz clock speed.
  • DIGITAL I/O: 8 optically coupled inputs, 8 high drive optically coupled outputs, 20 programmable unbuffered lines terminated to a 50 pin I/O rack compatible header connector.
  • ANALOG I/O: 16 channel, 12 bit analog to digital converter (16 bit optional) with sample/hold and CPU bus isolation.
  • MEMORY: Maximum system memory is 1 MB, 128K of RAM is furnished and 1K bit of nonvolatile EEPROM.
  • COMMUNICATION: Four RS232 serial ports with interrupt support.
  • TIMERS/COUNTERS: Two, 16 bit timers and four, 8 bit timer/counters each with interrupt support and a watchdog timer.
  • LCD INTERFACE: Header connector for OPTREX © DMC series character and Densitron graphic displays, or compatibles.
  • POWER SUPPLY: Single Voltage supply operating from +5 to +15 Vdc. with on board regulation. All CMOS construction insures low power consumption.
  • EXPANDABILITY: 50 pin header connector for use with accessory boards.

Overview


The EPAC 3000 G2 is a high performance, I/O rich, data acquisition and control computer based on the Zilog Z180 processor. The EPAC 3000 G2 is the second generation EPAC 3000, providing the user with additional features and I/O not found on the EPAC 3000. The EPAC 3000 G2 however, still incorporates the key features that make the EPAC 3000 an industrial strength work horse. These features include: two 16 bit timers, large memory space, 16 channel A/D, serial ports, programmable digital I/O lines, twisted pair networking, and more. Reliability features include: watchdog timer, machine sockets, single rail power supply with on board regulation, optically coupled digital I/O, multi-layer PCB, CPU bus isolation for analog I/O, transient protection for analog inputs and a separate analog ground.

If the EPAC 3000 does not quite have enough I/O to do the job, then the EPAC 3000 G2 is the board for the job. EMAC has added to the EPAC 3000, an LCD interface, three additional serial ports, six additional timer/counters, 16 channels of 12/16 bit A/D, a 7 position DIP switch, keypad interface, char./graphic LCD interface, sixteen interrupt driven digital I/O lines, and an optional 2 channel 12 bit D/A. The EPAC 3000 G2 provides additional expansion through the use of the ENET network. ENET allows up to 32 EPAC single board computers to exchange information effortlessly.

EMAC offers a total system solution for your application needs, with development software, peripheral boards, signal conditioning cards and more. The new Universal Expansion Interface gives the EPAC 3000 G2 compatibility with virtually all the EPAC series accessory boards. The EPAC 3000 G2 offers a cost affective solution to demanding applications. EMAC backs the 3000 G2 with a 2 year warranty and a 30 day money back guarantee.

Manuals
Data Sheets

Specifications


Processor
CPU
Z180
Clock Speed
6.144 MHz
Memory
RAM
Up to 512K ROM 512K RAM 1K EEPROM
Memory Misc.

MEMORY: Memory space for up to 512K of EPROM/ Flash and up to 512K of RAM. Total physical memory space on board is 1 MB abyte. In addition to the EPROM/RAM memory is a 1K bit serial EEPROM. The EEPROM is a nonvolatile memory organized into 64, 16 bit words with 10,000 write cycles guaranteed and unlimited read cycles.

Primary IO
GPIO
32x Total 16x Prog. 8x HiDrive OptoOuts 8x OptoIns
SDIO
32x digital I/O lines
Video Out
Optional LCD Display Board
Serial Ports
4x RS232
Secondary IO
Timers/ Counters/ PWM
2x 16 bit timers, 4x 8 bit timer/counter
Keypad
Yes
Secondary I/O Misc.

TIMERS/COUNTERS: Two, 16 bit timers and four, 8 bit timer/counters each with interrupt support and a watchdog timer.

Expansion
Bus Expansion
1x 50 pin
Analog
A/D Channels
Fast 16x 13 bit
A/D Channels
16
D/A Channels
2x 12 bit
D/A Channels
2
A/D Resolution
13 bit
D/A Resolution
12 bit
Analog Misc.

ANALOG I/O: 16 channel, 12 bit analog to digital converter (16 bit optional) with sample/hold and CPU bus isolation.

Mechanical and Environmental


Dimensions
Size
8.2" ×5.69" (208mm × 144mm)
Power Requirements
Voltage
8 V
Typical Voltage
12 V
Typical Current
130 mA
Max Boot Current
150 mA
Power Misc.

POWER REQUIREMENTS: Single Voltage supply operation from +8 Vdc to +15 Vdc (+12 Vdc recommended) with on board regulation. Maximum current draw is 150 ma., 130 ma typical.

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
E322-01 E322-01 Call

Peripheral Options


Product # Description Price
Peripherals
E322-22 12.288 MHZ System $29.00
E322-10 EPAC 3000 G2 Hardware Manual $24.00
E322-11 E-Forth SBC180 Software Manual $24.00
E321-09 MTBasic 180 Software Manual $24.00
E322-03 RS-232 serial port, Keypad Interface, 2x Counters $34.00
E322-05 RS-422/485 full Duplex COM port $19.00
Keypads
E020-25 12 KEY MEM TELEPHONE STYLE KEYPAD $25.00
E020-21 16 KEY MEMBRANE HEX STYLE KEYPAD $30.00
Displays
E020-25 12 KEY MEM TELEPHONE STYLE KEYPAD $25.00
E020-31 20 CHAR. X 2 Line LCD backlit display $65.00
Power Supplies
E010-10 WALL TRANSFORMER 110V - 12 V 800 MA $10.00
E010-11 WALL TRANSFORMER 110V - 9 V 500 MA $10.00
E010-15 WALL TRANSFORMER 110V - 9 V 1 A $18.00
Analog & Digital I/O Boards
E322-06 16 bit Resolution A/D Converter $49.00
E010-02 Transient spike protection for A/D $19.00
Cables & Adapters
E301-03 12 bit PLUS sign Resoltion A/D Converter $34.00
E301-04 4 Channel, 8 bit Resolution D/A Converter $59.00
E010-02 Transient spike protection for A/D $19.00
Date/Time Clocks
E010-04 REAL TIME CLOCK/CALENDAR 128K BATTERY BACKED PROVISION (REQUIRES 128K RAM, 06-0724 OPTION) $50.00
Memory
E010-07 128K BY 8 BATTERY BACKED SOCKET (REQUIRES 128K RAM, 06-0724 OPTION) $29.00
E010-13 512K BY 8 BATTERY BACKED SOCKET (REQUIRES 512K RAM, 06-0725 OPTION) $32.00
E322-12 512K by 8 RAM Upgrade $32.00
E010-09 32K by 8 Battery Backed RAM Module $39.00
E010-12 128K by 8 Battery Backed RAM Module $39.00
Operating Systems
E322-08 E-Forth SBC180 EPROM and Manual $99.00
E322-07 MTBasic 180 EPROM and Manual $99.00
