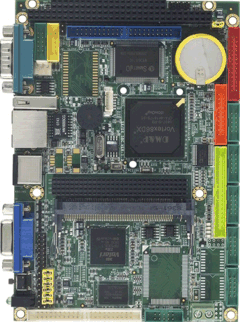

VDX-6327

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The VDX-6327 utilizes an onboard Vortex86DX Fanless 800MHz processor built for Ultra Low Power Consumption. The processor is highly integrated thus reducing the price of the board. The VDX-6327 comes with a PC/104 bus connector and a PCI-104 / PC/104+ bus connector which allows it to utilize higher end PCI bus based modules. **Flash Disk not included.**

Features

  • CPU: Fanless Vortex 486 class 86DX running at 800MHz
  • 256MB or 512MB of on-board DDR2 RAM
  • Compact Flash socket
  • On-board 4MB SPI Flash
  • Extended Temperature Range -20 º C (-4º F) to 70º C (158º F)
  • 10/100 Base-T Ethernet
  • 3 x USB 2.0 Ports
  • 8 x Serial Ports (VDX-6327)
  • Supports PC/104, PCI-104, and Mini-PCI Interfaces
  • Optional Temperature: -40 to 85°C

  • For Audio in/out please see the (VDX-6328)

Overview

The VDX-6327 utilizes an onboard Vortex86DX Fanless 800MHz processor built for Ultra Low Power Consumption. The processor is highly integrated thus reducing the price of the board. The VDX-6327 comes with a PC/104 bus connector, PCI-104, and Mini-PCI bus connector which allows it to utilize higher end PCI bus based modules.

The VDX-6327 has a fully static 32-bit 486 class X86 processor and is PC compatible allowing it to run most popular 32-bit Operating Systems such as DOS, Windows and Linux. The Video Chip (Volari Z9s) features 32 MB onboard video memory supporting Analog VGA monitors and TFT/LVDS Flat panel interfaces and has a resolution of up to 1280x1024 @ 16M colors. In addition to video, three USB 2.0 ports are available as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices), seven RS-232 and one RS-232/422/485 serial ports. The VDX-6327 can run at temperatures of -20 º C (-4º F) to 70º C (158º F). The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential.

**Flash Disk not included.**
Manuals
VDX-6327_UM_v1r1A.pdf
Download (PDF)
VDX-6327RD_UM_v1r1A.pdf
Download (PDF)
Configuring_VDX-6327_for_8-serial_ports.pdf
Download (PDF)
Data Sheets
VDX-6327RD_datasheet.pdf
Download (PDF)

Specifications

Processor
CPU
Vortex86DX Fanless
Clock Speed
800 MHz
Processor Misc.

L1:16K I-Cache, 16K D-Cache L2 Cache 128KB

Real Time Clock with Lithium Battery Backup
Memory
RAM
Up to 512MB DDR onboard
Primary Flash
Compact Flash Card Type I/II Socket
Secondary Flash
On-board 4MB SPI Flash Chip (DOS can boot & run from the on-board SPI Flash)
BIOS/ Bootloader
AMI BIOS
Memory Misc.
  • Optional Memory: 256MB DDR2 Optional
Primary IO
GPIO
1x 16 bit General Purpose I/O
Disk Interface
1x Ultra DMA 100/66/33, which supports 2 IDE Drives
Audio
See the VDX-6328 for Audio
Video Out
VGA and TFT/LVDS Flat Panel Interface Support
Ethernet
10/100 Base-T Ethernet
USB
3x USB 2.0
Serial Ports
7x RS-232, 1x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • Watchdog Timer Software programmable from 30.5μ sec.to 512 sec. x 2 sets
  • (Watchdog 1 fully compatible with M6117D)


Secondary IO
Timers/ Counters/ PWM
16~24 channels of PWN
PS/2
Yes
Secondary I/O Misc.

JTAG interface
Display
Display Type
Analog VGA and TFT Flat Panel Interface support
Chipset
XGI Volari Z9s Chipset
Resolution
Up to 1280 x 1024 @ 16M colors
Expansion
Bus Expansion
1x PC/104, 1x PCI-104, 1x Mini-PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental

Dimensions
Size
4.01" ×5.67" (101mm × 144mm)
Weight
150 g (0 lbs)
Power Requirements
Typical Voltage
5 V
Typical Current
820 mA
Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature70 C (158 F)
Environmental Misc.

Optional Temperature: -40 to 85°C
Related Products
VDX-6328, VDX-6327

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
VDX-6327D Vortex86DX 800MHZ 256MB SBC VGA/LAN/ Call
VDX-6327D-512 Vortex86DX 800MHZ 512MB SBC VGA/LAN/ Call
VDX-6327D-X Vortex86DX 800MHZ 256MB SBC VGA/LAN/wide temp Call

Peripheral Options

Product # Description Price
Peripherals
PER-FLS-00148-R 512 MB Embeddisk 44p HL (Internal) Call
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SL013-AMN-00060 Xenomai Real-Time Extensions (one-time charge) Call
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
