SBC-411


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Receive consultation or quotes about this product from our sales staff.

Request a quote

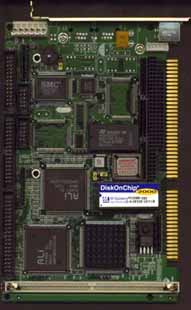

The SBC-411 is an all-in-one CPU card that supports L2 cache sizes from 128 KB to 512 KB (32KB x 8, 64KB x 8, 128KB x 8). This CPU card uses the M1489/M1487 chipsets, along with and AMD 486DX5-133 CPU onboard. The SBC-411 is fully PC/AT compatible, so your software will run without modifications.

Features


  • 486DX5-133
  • Half-size ISA bus CPU card
  • 128 KB secondary cache included, expandable up to 512 K
  • Up to 64 MB of on-board DRAM; supports 5V EDO DRAM
  • 2 built-in enhanced IDE (AT bus) hard disk drive interfaces, 1 floppy drive controller
  • One RS-232 and one RS-232/422/485 selectable serial port; uses 16C550 UARTs with 16-byte FIFO
  • One bi-directional parallel port
  • Watchdog timer, software programmable from 2 to 32 seconds (15 steps, 2 seconds per step)
  • On-board keyboard connector and/or PS/2 mouse
  • IDE HDD auto-detection
  • Connectors for PC/104 module expansion
  • Single +5V power supply
  • "Green Function" supports power management

Overview


The SBC-411 is an all-in-one CPU card that supports L2 cache sizes from 128 KB to 512 KB (32KB x 8, 64KB x 8, 128KB x 8). This CPU card uses the M1489/M1487 chipsets, along with and AMD 486DX5-133 CPU onboard. The SBC-411 is fully PC/AT compatible, so your software will run without modifications.

On-board features include two high-speed serial ports (RS-232 and RS/232/422/485) with 16C550 UARTs, one bi-directional parallel port, and a floppy drive controller. If program execution is halted by a program bug or EMI, the board's 15-stage watchdog timer can automatically reset the CPU or generate an interrupt. This ensures reliability in unmanned or stand-alone systems.

The SBC-411 is built with two high speed local bus Enhanced IDE controllers that support (through ATA PIO) mode 3 and mode 4 hard disks. Data transfer rates in excess of 11 MB/second are achievable. It connects up to four IDE devices, including large hard disks, CD-ROM drives, tape backup drives, etc. The built-in enhanced IDE controller provides a 4-layer 32-bit posted write-buffer and a 4-layer 32-bit read-prefetch buffer to boost IDE performance.

The SBC-411 supports 5V EDO DRAM. It also provides one 72-pin SIMM (Single In-line Memory Module) sockets for on-board DRAM.

The SBC-411 uses CMOS components and complies with the "Green Function" power management standard. If you need any additional functions, you can add industry-standard PC/104 expansion modules. We provide numerous PC/104 modules to meet your system requirements. You can even have us custom design a module if the functions you need are not available.

Manuals
Data Sheets

Specifications


Processor
CPU
486DX5
Clock Speed
133 MHz
Processor Misc.

L2 Cache Memory Size: 64 KB to 512 KB 2nd level cache memory socketed

Memory
RAM
Up to 32MB 1x 72-pin SIMM socket
BIOS/ Bootloader
AMI Flash WIN BIOS
Memory Misc.

Shadow RAM Memory: Supports system and video BIOS shadow memory of up to 256 KB in 32 KB blocks

Primary IO
Disk Interface
1x FDD, 2x EIDE
Serial Ports
2x RS-232, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • DMA Channels: 7
  • Interrupt Levels: 15
  • Bus Speed: 8 MHz
Secondary IO
PS/2
Yes
Expansion
Bus Expansion
1x PC/104, 1x ISA bus

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.5 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
2.5 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SBC-411-0 486DX ISA CARD SBC W/ PC/104 Call
SBC-411E 486DX ISA CARD SBC W/ PC/104 & ETHERNET Call
