SBC-357/4M


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Receive consultation or quotes about this product from our sales staff.

Request a quote

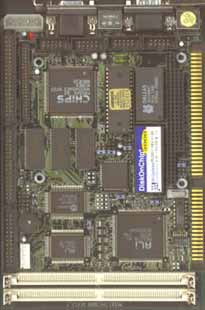

The SBC-357 is an all-in-one single board 386SX computer with an on-board flat panel VGA/LCD controller. This board uses the CHIPS 65545 chipset with 1MB of video memory. This chipset, used with the on-board ISA-bus, enables 16-bit graphic throughput. Excellent for display-intensive applications, it supports various LCD types, including TFT, STN, B/W and EL. Another feature of the SBC-357 is the inclusion of an enhanced IDE controller. This controller supports LBA mode hard disks.

Features


  • Onboard ALi M6117C, Intel® 386SX-40 compatible CPU
  • Onboard three RS-232 and one RS-232/422/485 serial port
  • C&T 65545 CRT/LCD controller with 1MB display memory
  • Supports DiskOnChip® (SSD) up to 1 GB
  • PC/104 expansion connector
  • Optional Ethernet

Overview


The SBC-357 is an all-in-one single board 386SX computer with an on-board flat panel VGA/LCD controller. This board uses the CHIPS 65545 chipset with 1MB of video memory. This chipset, used with the on-board ISA-bus, enables 16-bit graphic throughput. Excellent for display-intensive applications, it supports various LCD types, including TFT, STN, B/W and EL. Another feature of the SBC-357 is the inclusion of an enhanced IDE controller. This controller supports LBA mode hard disks. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, tape backup drives or other IDE devices. On-board features include three high-speed RS-232 and one RS-232/422/485 high speed serial port with 16C550 UARTS, one bi-directional SPP/EPP/ECP parallel port and a floppy-drive controller. If program execution is halted by a program bug or EMI, the board's 16-stage watchdog timer can automatically reset the CPU or generate an interrupt. This ensures reliability in unmanned or standalone systems. The SBC-357 provides two 72-pin SIMM (Single In-Line Memory Module) sockets for it's on-board system DRAM. These sockets give you the flexibility to configure your system from 4MB to 32MB of DRAM using the most economical combination of SIMMS.

Manuals
Data Sheets

Specifications


Processor
CPU
ALi M6117C Intel 80386SX-40
Processor Misc.
  • Chipset: ALi M6117C
  • CPU type: Onboard SQFP



Memory
RAM
4MB 1x 72-pin SIMM
Primary Flash
DiskOnChip 2000
Primary IO
Disk Interface
1x EIDE which supports 2x IDE Drives, 2x FDD
Serial Ports
1x Parallel SPP/EPP/ECP, 3x RS-232, 1x RS-232
Primary I/O Misc.
  • DMA Channels: 7 DMA channels
  • Interrupt Levels: 15 interrupt levels

Display

  • Chipset: C&T 65545
  • Display memory: Onboard 1MB display memory
  • Display type: Supports non-interlaced CRT/LCD (TFT, DSTN, B/W and EL) displays. Can display both CRT and Flat Panel simultaneously
  • Resolution: Up to 800 x 600 @ 256 colors
Secondary IO
PS/2
Yes
Display
Display Type
Supports non-interlaced CRT/LCD (TFT/DSTN/B/W and EL) displays. Can display both CRT and Flat Panel simultaneously
Chipset
C&T 65545
Resolution
Up to 800 x 600 @ 256 colors
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux, MS-DOS 6.22 / ROM-DOS 6.22

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.3 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
3 A
Power Misc.
  • Battery: Lithium battery for data retention
  • Power management: I/O peripheral devices support power saving and doze/standby/suspend modes. APM 1.1 compliant
Environmental
