EMAC has created the iPac-9302, an inexpensive, feature packed embedded Single Board Computer (SBC) based on the Cirrus EP9302 processor. This ARM9 based board has features, similar to our other Microcontrollers, A/D, PWM, Digital I/O, Serial, USB, and Ethernet. The iPac-9302 is a web enabled microcontroller device offering the ability to run an embedded server to display it’s current monitored or logged data. This web connection can be via standard wired 802.3u 10/100 BaseT Fast Ethernet or 802.11 wireless wifi networking with the proper linux modules and adapters. This Microcontroller has all connectors brought out as headers on a board that is same footprint of a standard PC/104 module at 3.77" x 3.54". While slightly larger than our SoM Microcontroller offerings, this Industrial Strength SBC is perfectly suited for just about any Embedded Data Acquisition and Control application. This iPAC-9302 has a Minimum Order Quantity (MOQ - 25 pieces)
The PFM-540I is a single board computer based on the AMD Geode LX 800 processor. This low power PC/104 module is versatile product featuring four USB 2.0 ports and two Serial ports. The PFM-540I supports CRT and 18/24-bit TTL LCD panels, PC/104 expansion, and supports up to 1GB of DDR SDRAM. **Flash Disk and Memory not included.**

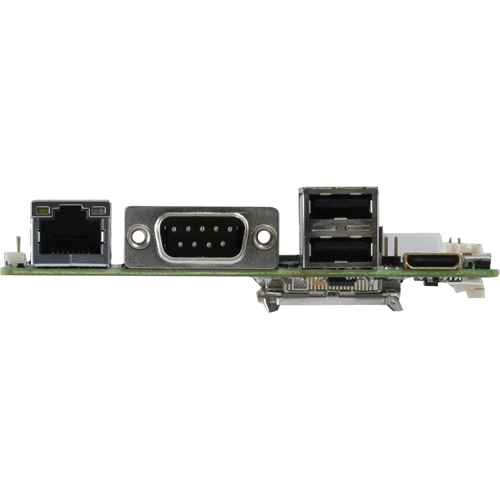

PICO-IMX6
22Ppi111PP55
22Ppi211PP55

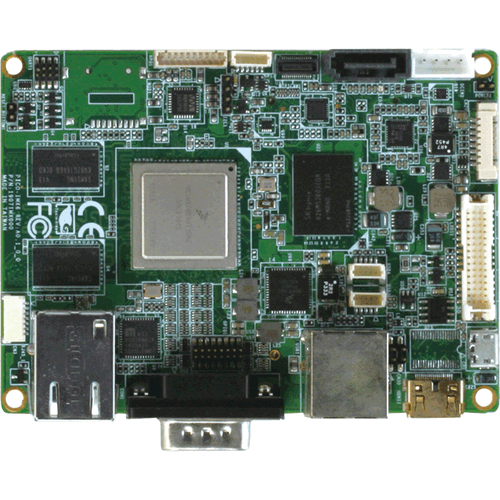

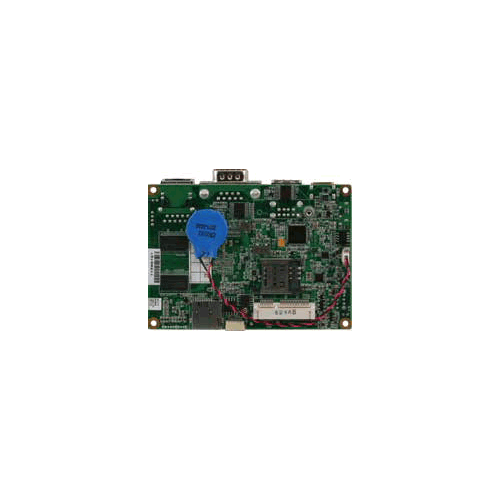

22Ppi211PP55 PICO-IMX6 is a 2.5” SBC (Single Board Computer) that is PICO-ITX sized with ARM Cortex-A9 Freescale i.MX6 Dual 1 GHz processor or Automotive Quad 1.0 GHz Processor. The PICO-IMX6 can support 1 GB DDR3 and 16 GB eMMC onboard flash, LVDS, and mini-HDMI display mode, 1 UART, 2 USB2.0 Host 1 USB2.0 OTG, 1 GbE, 1 SD and MiniPCIe and SIM slot. The PICO-IMX6 focuses on display application and It provides high performance and low power consumption from its ARM® Cortex™ A9 architecture which is ready-to-run, compact, and easy-to-expand in order to meet customers' versatile needs.
Features
- Onboard Freescale® iMX6 DualLite Commercial/ Quad Automotive ARM Cortex A9
- 1GB DDR3 Onboard 533MHz (1066 MT/s)
- 4GB eMMC (Up to 16GB)
- 4x USB 2.0 Host, 1x OTG
- 1x Gig Ethernet with RJ45
- LVDS/HDMI
- 1x LVDS 18-bit 1 Channel
- Mini HDMI up to 1080p
- LVDS up to 1920 x 1080 (Default at 1024 x 768)
- HDMI up to 1080p
- LCD up to 1024 x 768
- Audio: I2S, WM8962B (speaker out, Mic-In )
- 1x 4-wire UART
- SATA
- 8x GPIO
- I2S, WM8962B (speaker out, Mic-In )
- 18-bit Single-Channel LVDS / Mini HDMI
- Watchdog Timer
- 1x MicroSD card
- 1x CAN
- 1x I2C
- 1x Mini PCIe-Card Slot (Quad Board Only)
- Chipset: Freescale IMX6
- Power Requirement: 12 V
- Operating Temperature:0 ~ 60°C (32 ~ 140 °F) Optional: -40 ~ 85°C
- Operation Humidity: 0% ~ 90% relative humidity, non-condensing
- Pico-ITX, P-ITX or 2.5" SBC form factor
- Dimensions: 100 x 72mm (3.94 x 2.76”)
- Weight: 0.88 lb
Overview
PICO-IMX6 is a 2.5” SBC (Single Board Computer) that is PICO-ITX sized with ARM Cortex-A9 Freescale i.MX6 Dual 1 GHz processor or Automotive Quad 1.0 GHz Processor. The PICO-IMX6 can support 1 GB DDR3 and 16 GB eMMC onboard flash, LVDS, and mini-HDMI display mode, 1 UART, 2 USB2.0 Host 1 USB2.0 OTG, 1 GbE, 1 SD and MiniPCIe and SIM slot. The PICO-IMX6 focuses on display application and It provides high performance and low power consumption from its ARM® Cortex™ A9 architecture which is ready-to-run, compact, and easy-to-expand in order to meet customers' versatile needs. With flexible I/O interfaces and complete hardware and software solutions, PICO-IMX6 is a fast time-to-market platform for customers to develop their applications and products easily.
| Manuals | |
|---|---|
| PICO-IMX6 Manual 1st Ed and Test Guide.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PICO-IMX6.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Onboard Freescal® iMX6 DualLite Commercial / Quad Automotive ARM Cortex A9 |
| Clock Speed | 1 GHz |
| Memory | |
|---|---|
| RAM | 1GB DDR3 Onboard 533MHz (1066 MT/s) |
| Primary Flash | 4GB eMMC (Up to 16GB- build to order option) |
| Primary IO | |
|---|---|
| GPIO | 8x GPIO |
| Disk Interface | SATA |
| Audio | I2S |
| Video Out | 18-bit Single-Channel LVDS / Mini HDMI |
| Ethernet | 1x Gig Ethernet with RJ45 Connector |
| USB | 5x (4x USB 2.0 Host, 1x OTG) |
| Serial Ports | 1x 4-wire UART |
| Secondary IO | |
|---|---|
| CAN | 1x can |
| Display | |
|---|---|
| Chipset | Freescale IMX6 |
| Resolution | LVDS up to 1920 x 1080 (Default at 1024 x 768) / HDMI up to 1080p / LCD up to 1024 x 768 |
| LVDS Interface | 1x LVDS 18-bit 1 Channel |
| HDMI/DVI Interface | Mini HDMI up to 1080p |
| Expansion | |
|---|---|
| Bus Expansion | 1x Mini PCIe with SIM socket |
| Analog | |
|---|---|
| A/D Channels | N/A |
| D/A Channels | N/A |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.94" ×2.76" (100mm × 70mm) |
| Weight | 0.88 lb |
| Dimensions Misc. | Pico-ITX, P-ITX or 2.5" SBC form factor
100 x 72mm (3.94 x 2.76”) |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PICO-IMX6-A10-0001 | Freescale IMX6 Quad Automotive Grade 1GB DDR3L/SATA/4GB eMMC/GPIO/USB/CAN/I2C/MiniCard Slot/Audio/Mini HDMI | $250.00 |
| PICO-IMX6-A10-0002 | Freescale IMX6 Dual Lite Consumer Grade1GB DDR3L/GPIO/USB/CAN/I2C/Audio/Mini HDMI | $216.00 |
| Build-to-order | |
|---|---|
|
EMAC can build the PICO-IMX6 with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required. |
Call for pricing |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-PCI-00031 | EWM-W135F01E, mPCIe-F, 802.11 a/b/g/n,AR9382,2T2R, 300Mbps, Full-MiniPCIe card | $30.00 |
| PER-MIS-0005PR | 2.4 GHz WiFi Antenna & 20cm IPEX to SMA Cable, Panel Mount SMA | $19.00 |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
