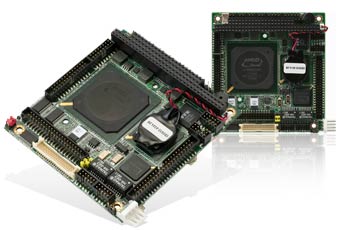

PFM-541i


  • AMD Geode Low Power LX800 Processor
  • Onboard DDR333 Memory 256MB
  • 2x 10/100 Base-TX Ethernet
  • PC/104 Expansion
  • Optional Wide Temp -40°C (-40°F) to 80°C (176°F)

Receive consultation or quotes about this product from our sales staff.

Request a quote
The PFM-541I is built upon the AMD Geode LX800 processor and AMD CS5536 I/O chip. With up to 256MB of onboard DDR333 system memory, the PFM-541I is delivered ready to run. Offering two 10/100Base-TX Ethernet ports as well as 4 USB2.0, 4 COM ports and PC/104 expansion, the PFM-541I meets demanding connectivity and expansion requirements. Storage needs are met by both IDE and CompactFlash interfaces. **Flash Disk and Memory not included.**

Features


  • Onboard AMD Geode™ LX800 Processor
  • AMD LX800 + CS5536 Chipset
  • Onboard DDR333 Memory 256MB
  • 2x 10/100 Base-TX Ethernet
  • CRT & Up to 24-bit TTL LCD support
  • 1x EIDE, 1x Compact Flash
  • 4x USB 2.0, 4x COM, 1x Parallel
  • PC/104 Expansion
  • +5V only operation, AT Power Type

 OPTIONAL ACCESSORIES

TF-PFM-P13DW2-A10
PC/104 Board Power Supply Module with +5V & +12V Output PC/104, Rev. A1.0 WiTAS 2

TF-PCM-3538T-A10
TTL to LVDS Transmitter Module Rev. A1.0

1709100201
USB Cable, Length 20cm

1701260201
Printer Port Cable, Length 20cm

1700100200
LAN Cable, Length 20cm

1701400205
COM Cable, Length 20cm

Overview


The PFM-541I is built upon the AMD Geode LX800 processor and AMD CS5536 I/O chip. With up to 256MB of onboard DDR333 system memory, the PFM-541I is delivered ready to run. Offering two 10/100Base-TX Ethernet ports as well as 4 USB2.0, 4 COM ports and PC/104 expansion, the PFM-541I meets demanding connectivity and expansion requirements. Storage needs are met by both IDE and CompactFlash interfaces.





**Flash Disk and Memory not included.**

Manuals
pfm-541i.pdf
Data Sheets
PFM-541I_ds.pdf

Specifications


Processor
CPU
Onboard AMD Geode™ LX800 Processor
Clock Speed
500 MHz
Processor Misc.

AMD Geode™ LX series + CS5536

Memory
RAM
On-board 256MB DDR333
Primary Flash
1x CompactFlash™ card Type I
BIOS/ Bootloader
AWARD Plug & Play FWH BIOS - 1 Mb ROM
Primary IO
Disk Interface
EIDE x 1 (UDMA-33 for one device)
Video Out
CRT/LCD Up to 254 Shared System Memory
Ethernet
2x 10/100 Base-TX Ethernet
USB
4x USB 2.0
Serial Ports
3x RS232. 1x RS232/422/485, 1x Parallel SPP/EPP/ECP
Secondary IO
PS/2
Yes
Secondary I/O Misc.

Floppy Interface: One floppy disk drive connector

Display
Chipset
AMD Geode™ LX series + CS5536
Resolution
Up to 1600 x 1200 @ 32bpp colors for CRT
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), ROM-DOS 6.22 / MS-DOS 6.22 , EMAC OE

Mechanical and Environmental


Dimensions
Size
3.5" ×3.8" (88mm × 96mm)
Weight
110 g (0 lbs)
Power Requirements
Voltage
5 V
Typical Current
1.83 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Environmental Misc.

Optional Temperature: -40 to 80°C

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PFM-541I-A LX800 PC/104 SBC W/ 4x COM, 2x Ethernet $317.00
PFM-541IW-A LX800 PC/104 SBC W/ 4x COM, 2x ETH, EXT. Temp (NCNR) $524.00

Peripheral Options


Product # Description Price
Operating Systems
SL040-XON-00010 EMAC OE Linux 4.0 for x86 Free
SL013-AMN-00060 Xenomai Real-Time Extensions (one-time charge) Call
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SC600-000-0010D Windows CE 6.0 Pro License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $25.00
