PCM-9577


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

Receive consultation or quotes about this product from our sales staff.

Request a quote

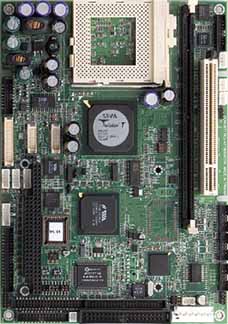

The new PCM-9577 is a socket 370 Pentium® III 5.25" form factor single board computer (SBC) with onboard Gigabit Ethernet and four USB 2.0 ports. The socket 370 can support up to Pentium® III/512K(Tualatin) 1.26GHz. This SBC includes a 4X AGP controller, an AC97 audio interface, a PCI Gigabit or 100Base-T Ethernet interface, 4 USB 1.1 or USB 2.0 ports and 2 channel LVDS interface. Other on-board features include a PCI slot, PC/ 104, optional Mini PCI socket, an LPT, UDMA/100 IDE, IrDA and 4 serial ports: three RS-232s, and one RS-232/422/ 485.

Features


  • Socket 370 supports up to Pentium® III/512K 1.26GHz
  • Supports Gigabit Ethernet (PCM-9577FG)
  • Supports Embedded USB, 4 USB 2.0 ports (PCM-9577FG)
  • 133MHz FSB and 4X AGP graphics for high performance applications
  • Supports 24/36 bit TFT/DSTN LCD and 2 channel LVDS
  • Optional TV-Out

Overview


The new PCM-9577 is a socket 370 Pentium® III 5.25" form factor single board computer (SBC) with onboard Gigabit Ethernet and four USB 2.0 ports. The socket 370 can support up to Pentium® III/512K(Tualatin) 1.26GHz. This SBC includes a 4X AGP controller, an AC97 audio interface, a PCI Gigabit or 100Base-T Ethernet interface, 4 USB 1.1 or USB 2.0 ports and 2 channel LVDS interface. Other on-board features include a PCI slot, PC/ 104, optional Mini PCI socket, an LPT, UDMA/100 IDE, IrDA and 4 serial ports: three RS-232s, and one RS-232/422/ 485. The SSD solution supports CompactFlash™ cards.

This product uses a VIA Twister™ chip with Northbridge and Integrated Savage4™ 2D/3D/Video Accelerator and supports 4X AGP VGA/LCD interface and up to 32 MB frame buffer using system memory. The board is effective for use as a mini-server or gateway device with the ability to add more ethernet ports through its fast PCI slot. The PCM-9577's powerful Pentium® III 1.26GHz, Gigabit Ethernet, USB 2.0 and solid system chipset make it a perfect core technology for server equipment and other long life applications. The high quality TV-out capability makes numerous other applications available also.

Manuals
Data Sheets

Specifications


Processor
CPU
Socket 370 for Intel® Celeron™/Pentium® III/512k
Clock Speed
1.26 GHz
Processor Misc.

2nd cache memory: supports 128KB/256KB/512KB on the processor

Memory
RAM
up to 512MB 1x DIMM socket
Primary Flash
Supports one 50-pin socket for CFC type I/II
BIOS/ Bootloader
Award 256 KB Flash memory
Primary IO
Disk Interface
2x FDD, 4x EIDE
Audio
VIA 82C686 AC97 2.0 (Line-in/Line-out/Mic-in)
Ethernet
IEEE 802.3u 100BASE-T Fast Ethernet compatible (PCM-9577F) IEEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible (PCM-9577FG)
Serial Ports
1x Parallel SPP/EPP/ECP, 3x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • Parallel port: Parallel port supports SPP/EPP/ECP mode
  • Infrared port: Shared with COM4. Transfer rates up to 115Kbps

VGA/Flat-Panel Interface

  • Chipset: VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
  • Frame buffer: Supports 8/16/32MB frame buffer with system memory
  • Interface: 4X AGP VGA/LCD interface with support for 9 / 12 /15 / 18 / 24 / 36-bit TFT and 16 / 24-bit DSTN panel
  • Display mode: CRT Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (85Hz); LCD/Simultaneous Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (60Hz)
  • LVDS: Supports 2 Channel (2 x 18bit) LVDS interface
Secondary IO
PS/2
Yes
Display
Chipset
VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
LVDS Interface
Supports 2 Channel (2 x 18bit) LVDS interface
Expansion
Bus Expansion
1x PCI, 1x PC/104, 1x Mini PCI
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE )
Operating Systems Compatibility
  • Wind River VxWorks
  • QNX Neutrino RTOS
  • RTAI Real-Time Linux

Mechanical and Environmental


Dimensions
Size
8" ×5.75" (203mm × 146mm)
Weight
0.85 kg
Power Requirements
Typical Voltage
5 V
Typical Current
5.6 A
Max Boot Current
10 A
Power Misc.

Power management: Supports power saving modes including Normal/Standby/Suspend modes. APM 1.2 compliant

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9577F SBC W/ LAN, USB 1.1, AND VGA/LCD Call
PCM-9577FG Above SBC W/ GB LAN AND USB 2.0 Call

Peripheral Options


Product # Description Price
Wiring Kits
PCM-10586-5A Installation Wiring Kit PCM-9577F $39.00
PCM-10586-5G Installation Wiring Kit PCM-9577FG $39.00
Cables & Adapters
CAB-40-001-1 USB 2 port cable w/ mounting bracket $11.00
CAB-80-003-1 Power Cable ATX-EBX Adapter $8.00
CAB-15-002-1 TV-OUT CABLE Call
