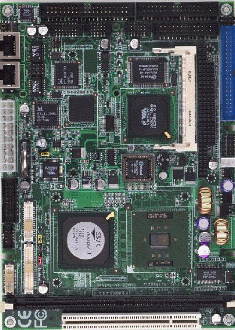

PCM-6892


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The PCM-6892 targets home automation, POS, Networking, and Kiosk/POI markets. To fulfill the critical demand of the these  markets, PCM-6892 features a PCMCIA expansion interface, large size display support ability, low profile design, dual LAN and yet still remains a cost-effective solution. The PCM-6892 comes with a VIA 8606 Twister T North Bridge integrated AGP 4X 2D/3D graphics accelerator. The Twister video chip will drive 18 bit/36 bit dual channel LVDS and TTL LCD Displays in addition to a standard analog CRT display.

Features


  • Onboard Intel® ULV Celeron® Processor
  • 18/36-bit TTL/LVDS LCD Support
  • 3D Graphics Accelerator with TV-Out support
  • Dual 10/100Mbps Fast Ethernet
  • AC-97 2.1 High-Quality Audio
  • Supports Type II CompactFlash
  • Supports Type II PCMCIA, Type III Mini PCI and PCI Slot
  • 4 COM and 4 USB
  • +5V Only Operation

Overview


The PCM-6892 targets home automation, POS, Networking, and Kiosk/POI markets. To fulfill the critical demand of the these  markets, PCM-6892 features a PCMCIA expansion interface, large size display support ability, low profile design, dual LAN and yet still remains a cost-effective solution. The PCM-6892 comes with a VIA 8606 Twister T North Bridge integrated AGP 4X 2D/3D graphics accelerator. The Twister video chip will drive 18 bit/36 bit dual channel LVDS and TTL LCD Displays in addition to a standard analog CRT display.

This board offers two alternatives of power supply type: AT and ATX. You can select whichever is suitable for your application. The ATX power supply board features power management to minimize power consumption. It complies with the ACPI standard and supports two types of power-saving features: Doze mode and Suspend modes.

Dual 10/100Base-Tx Ethernet controllers provide superior networking access ability. The CompactFlash socket can offer a large solid-state Flash Drive for data storage of all types and the integrated AC97 2.0/Sound Blaster legacy audio provides crisp clean sound for multimedia applications. The onboard PCMCIA slot and the Mini PCI socket can be widely used for IEEE 1394, Modem, Wireless LAN, Storage, Sound Card and SCSI etc. Equipped with the above functions, this versatile board can be easily applied to a variety of applications.

PCM-6892 also includes four high-speed serial ports (three RS-232, one RS-232/422/485), one multimode (ECP/EPP/SPP) parallel port, four USB ports, 2 floppy drives, an Ultra DMA/100 Enhanced IDE controller supporting two devices with data transfer rate up to 100MB per second, and a keyboard/PS/2 mouse interface.

Specifications


Processor
CPU
Onboard Intel Ultra Low Voltage Celeron
Clock Speed
400 MHz
Processor Misc.

CPU Chipset: VIA VT8606 + VT82C686B

Memory
RAM
512MB 1x 164-pin PC-133 SDRAM DIMM
Primary Flash
Type II CompactFlash
BIOS/ Bootloader
AWARD 256KB FLASH ROM
Primary IO
Disk Interface
1x EIDE (Ultra DMA 100)
Audio
AC97 2.1 (mic-In/line-in/line-out)
Ethernet
Dual 10/100 Base-TX RJ-45 Realtek RTL8100BL
USB
4x USB 1.1
Primary I/O Misc.
  • I/O Chipset: Winbond W83977EF
  • Parallel port: SPP/EPP/ECP Printer port
  • IR interface: One IrDA Tx/Rx header



Secondary IO
PS/2
Yes
Display
Display Type
Supports CRT/ LCD and simultaneous display
Chipset
VIA VT8606
Resolution
up to 1280x1024@24bpp colors for CRT/Up to 1024x768@18bpp colors for LCD
Expansion
Bus Expansion
1x PCI, 1x PC/104, 1x Mini PCI
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, MS-DOS 6.22 / ROM-DOS 6.22
Operating Systems Compatibility
  • RTAI Real-Time Linux
  • Wind River VxWorks
  • QNX Neutrino RTO

Mechanical and Environmental


Dimensions
Size
8" ×5.75" (203mm × 146mm)
Weight
0.5 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
3 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-6892-0 PCM-6892-0 Call
PCM-6892-1 PCM Call
PCM-6892-2 PCM Call
PCM-6892-3 PCM Call

Peripheral Options


Product # Description Price
Wiring Kits
PCM-10489-6 Cable Kit $37.00
