PCM-5823


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Receive consultation or quotes about this product from our sales staff.

Request a quote

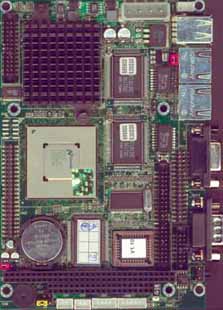

The PCM-5823 NS Geode Series is a 3.5" SBC which offers an onboard NS Geode GX1 300 MHz processor or GX1-233 MHz processor, plus support for dual ethernet for network functions such as Firewall, Router or Gateway functions. Other onboard features include VGA/LCD, a CompactFlash™ card socket, and watchdog timer. With the 586-level NS Geode processor mounted directly on board, upgrade and system configuration is much more convenient as is the benefits of fanless operation in temperatures up to 60° C (140° F).

Features


  • Onboard NS GX1-300 MHz CPU or GX1-233 MHz CPU
  • Dual Ethernet On board
  • Provides AC97 Audio interface (optional)
  • Single +5 V power supply
  • ISA-bus expansion with on-board PC/104 connector
  • Compact size: 145 x 102 mm fits in the space of a 3½ " HDD

Overview


The PCM-5823 NS Geode Series is a 3.5" SBC which offers an onboard NS Geode GX1 300 MHz processor or GX1-233 MHz processor, plus support for dual ethernet for network functions such as Firewall, Router or Gateway functions. Other onboard features include VGA/LCD, a CompactFlash™ card socket, and watchdog timer. With the 586-level NS Geode processor mounted directly on board, upgrade and system configuration is much more convenient as is the benefits of fanless operation in temperatures up to 60° C (140° F). This board is a feature-packed, 586-level, hassle-free solution for space critical applications.

The flexible, dual Ethernet capability of the PCM-5823 gives network administrators another tool to deal with today's changing application needs. The board comes with the top-of-the-line Intel® 82559E LAN chips or cost-effective RTL 8139C LAN chips, depending on users needs. Used as a DMZ device, the PCM-5823 could act as a firewall that sits between the internet and a company's internal network. This applies to Web (HTTP) servers, FTP servers, SMTP (e-mail) servers or DNS servers. The PCM-5823 can also be used as an internet-network gateway (router) that connects a number of local networks. Once again, the dual ethernet capability and processing power of the PCM-5823 gives it the ability to perform these functions. The compact size, low power consumption, and fanless operation allow it to be used "exactly" where you need it as well.

Manuals
Data Sheets

Specifications


Processor
CPU
Onboard NS GX1
Clock Speed
300 MHz
Processor Misc.
  • Optiona Processor: Onboard GX1-233 processor
  • Chipset: NS CX5530
Memory
RAM
256MB 1x 144-pin SODIMM
Primary Flash
1x CompactFlash™ card
BIOS/ Bootloader
Award 256 KB Flash memory
Primary IO
Disk Interface
2x FDD, 2x EIDE (Ultra DMA33)
Audio
AC97 NS CX5530
Ethernet
10/100 Mbps Ethernet IEEE 802.3u 2x RJ-45 (Intel 82559/Realtek RTL 8139)
USB
2x USB
Serial Ports
1x Parallel SPP/EPP/ECP, 1x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • Infared port: Supports up to 115 Kbps transmitting rate



Secondary IO
PS/2
Yes
Display
Display Type
Simultaneously supports both CRT and 18-bit TFT LCD displays (supports 3.3 V LCD) VGA/Flat-Panel Interface
Chipset
NS CX5530
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux, MS-DOS 6.22 / ROM-DOS 6.22

Mechanical and Environmental


Dimensions
Size
5.7" ×4" (144mm × 101mm)
Weight
0.77 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1.5 A
Max Boot Current
4 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-5823E PCM-5823E Call
PCM-5823G PCM-5823G Call

Peripheral Options


Product # Description Price
Cables & Adapters
CAB-20-001-1 44-pin to dual 40-pin EIDE Cable $20.00
