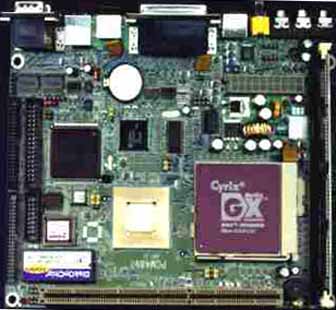

PCM-4897


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The PCM-4897 is an enhanced, all-in-one single board computer with a local bus SVGA controller and two serial ports. The PCM-4897 offers all the functions of an ATX-compatible industrial computer on a single board, but it fits in the space of  5 1/4" floppy drive(only 5.75" x 8"). For maximum performance, the PCM-4897 also supports On-board features include two serial-ports(two RS-232 ), one parallel port, an enhanced IDE hard-drive controller (for up to two drives), a floppy drive controller and a keyboard-PS/2 mouse interface.

Features


  • NS Geode 233MHz
  • Supports CRT and 18-bit TFT panels
  • Integrated AC-97 2.0 (meets PC98� Basic Audio spec.) SoundBlaster-compatible legacy audio
  • DiskOnChip®(SSD) up to 1 GB

Overview


The PCM-4897 is an enhanced, all-in-one single board computer with a local bus SVGA controller and two serial ports. The PCM-4897 offers all the functions of an ATX-compatible industrial computer on a single board, but it fits in the space of  5 1/4" floppy drive(only 5.75" x 8"). For maximum performance, the PCM-4897 also supports On-board features include two serial-ports(two RS-232 ), one parallel port, an enhanced IDE hard-drive controller (for up to two drives), a floppy drive controller and a keyboard-PS/2 mouse interface. The PCM-4897 also has on-board sound, USB ports and composite video out.

The board's watchdog timer can automatically reset the system or generate an interrupt if it stops due to a program bug or EMI problem. The PCM-4897 also complies with the "Green Function" standard, is APM 1.1 compliant, and supports three types of power-saving features: doze, standby, and suspend mode. All display and Ethernet configuration is set through the software. A single Flash chip holds the system BIOS, VGA BIOS and the network boot ROM image. This minimizes the number of chips and eases configuration. You can change the display BIOS or install a boot ROM simply by programming the Flash chip. If you need any additional functions, you can add up to six industry-standard PC/104 modules to the on board PC/104 expansion connector.

Specifications


Processor
CPU
NS Geode Intel Socket 7
Clock Speed
233 MHz
Processor Misc.

Chipset: NS CX5530 I/O Chipset NS97317

Memory
RAM
128MB 1x 168-pin DIMM SDRAM
BIOS/ Bootloader
AWARD 256KB Flash BIOS
Primary IO
Disk Interface
1x FDD, 2x EIDE (Ultra DMA33)
Audio
NS CX5530 (Line-in/Line-out/Mic-in)
USB
2x USB
Serial Ports
1x Parallel SPP/EPP/ECP, 2x RS-232
Primary I/O Misc.
  • IR interface: Support one IrDA Tx/Rx header
  • DMA channels: 7 DMA channels
  • Interrupt levels: 15 interrupt levels



Secondary IO
PS/2
Yes
Display
Display Type
Supports non-interlace CRT and TFT Flat Panel displays. Can display both CRT and Flat Panel simultaneously
Chipset
NS CX5530
Expansion
Bus Expansion
1x PC/104

Mechanical and Environmental


Dimensions
Size
7.87" ×6.3" (199mm × 160mm)
Weight
0.5 kg
Power Requirements
Voltage
3.3 V
Typical Voltage
5 V
Typical Current
2.2 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-4897-0 NS GEODE Board (CPU & Memory not included) Call
