PCM-4823


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

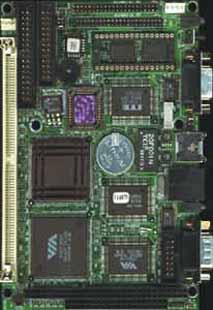

The Half-EBX PC is the ultimate cost-effective solution for limited space applications. These small all-in-one computers are the same size as a 3½” hard disk drive and perform all the functions of an industrial computer and more! The PCM-4823 and PCM-4823L Half-EBX PCs are ultra-compact single board computers that integrate a 32-bit SVGA and LCD interfaces (PCM-4823 only) for a complete processing system.

Features


  • Compact size (145 mm x 102 mm). Fits in the space of a 3�" HDD
  • ISA-bus expansion with on-board PC/104 connector
  • On-board Intel® 486DX4-100 processor
  • Local bus VGA/LCD display controller (LCD, EL and VGA displays) plus on-board DB-15 connector (PCM-4823 only)
  • Supports M-Systems’ DiskOnChip� 2000 Flash memory
  • On-board 10Base-T Ethernet interface
  • Accepts up to 32 MB EDO DRAM
  • On-board mini-DIN PS/2 keyboard/ mouse connector
  • Built-in Enhanced IDE hard disk drive interface, floppy disk interface and parallel port
  • Two serial ports: one RS-232 and one RS-232/422/485; on-board DB-9 connector is designated as COM1
  • "Green Function" CPU card with sleep mode and low power consumption
  • Single +5 V power supply
  • Flexible OEM/ODM design

Overview


The Half-EBX PC is the ultimate cost-effective solution for limited space applications. These small all-in-one computers are the same size as a 3½” hard disk drive and perform all the functions of an industrial computer and more! The PCM-4823 and PCM-4823L Half-EBX PCs are ultra-compact single board computers that integrate a 32-bit SVGA and LCD interfaces (PCM-4823 only) for a complete processing system.

On-board features include an Intel® DX4-100 processor, floppy disk controller, parallel port, an EDO DRAM SIMM socket, enhanced IDE, keyboard/mouse connector, and two standard serial ports. As energy efficient as it is space efficient, the PCM-4823/23L also supports power saving modes for I/O peripheral devices.

The PCM-4823 and PCM-4823L Half-EBX PCs are built especially for limited space embedded applications. Based on PC/AT architecture, they are compatible with most off-the-shelf software. In addition, because of the availability of inexpensive PC platforms, using the PCM-4823 or PCM-4823L can significantly reduce development time and cost. Moreover, mechanical configuration and system expansions are simple with industry standard PC/104 carrier modules.

Manuals
Data Sheets

Specifications


Processor
CPU
On-board Intel® 486DX4-100 processor
Processor Misc.

Chipset: VIA 82C496G

Memory
RAM
Up to 32MB 1x 72-pin SIMM socket
Primary Flash
DiskOnChip 2000
BIOS/ Bootloader
AWARD 128 KB Flash memory
Primary IO
Disk Interface
1x FDD, 2x EIDE
Ethernet
10Base-T Ethernet RJ-45 Realtek RLT8019AS
Serial Ports
1x Parallel SPP/EPP/ECP, 1x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • Infrared port: Supports up to 115 Kbps transmitting rate

Display

  • Video Chipset: C&T 65550
  • Display memory: 1 MB DRAM
  • Display type: Simultaneously supports CRT and Flat Panel (EL, LCD and gas plasma) display
  • Resolution:
    • Non-interlaced VGA monitor resolution up to 1024 x 768 @ 256 colors
    • Panel resolution: Supports up to 1024 x 768 @ 256 colors TFT panel
Secondary IO
PS/2
Yes
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux, FreeRTOS

Mechanical and Environmental


Dimensions
Size
5.7" ×4" (144mm × 101mm)
Weight
0.17 kg
Power Requirements
Voltage
5 V
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-4823-0 486 HALF-EBX Board W/ LAN & LCD Call
PCM-4823L 486 HALF-EBX Board W/ LAN Call
