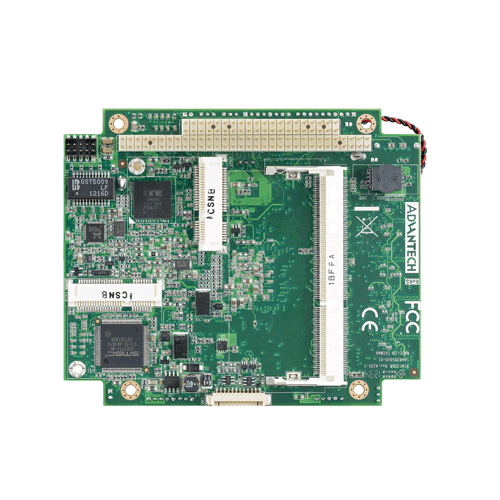

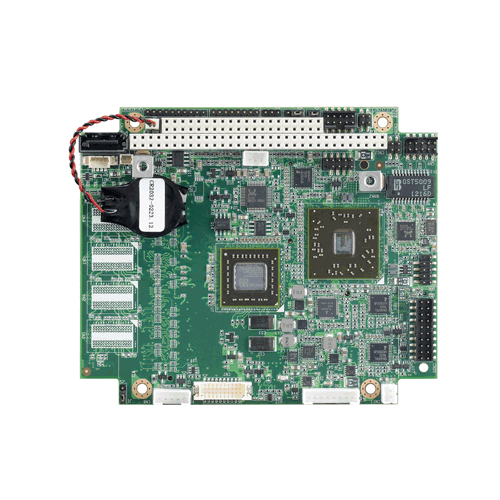

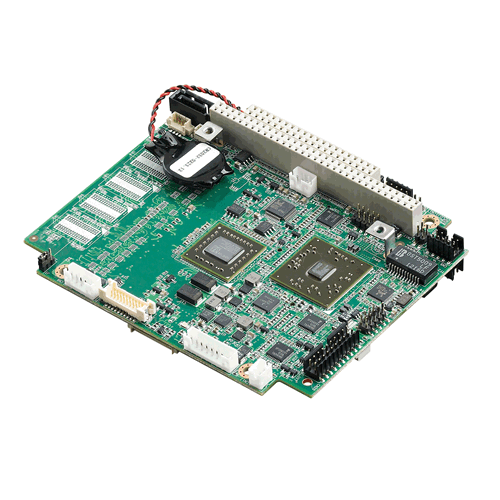

PCM-3356


  • AMD® G-SeriesTM Processor T16R 615 MHz
  • Supports up to 4 GB DDR3 SODIMM or 1 GB DDR3 on-board memory
  • Support 18-bit LVDS and VGA
  • Expansion: PC/104 and miniPCIe
  • Supports 3 COM ports, 4 USB 2.0 ports, dual GbE and audio codec
  • Optional extended temp: -40 ~ 85C

Receive consultation or quotes about this product from our sales staff.

Request a quote

The PCM-3356 has an AMD® G-Series™ Processor T16R 615 MHz it supports up to 4 GB DDR3 SODIMM or 1 GB DDR3 on-board memory. It is available with 18-bit LVDS and VGA. It alsoƒ supports 3 COM ports, 4 USB 2.0 ports, dual GbE and audio codec. This board is available with optional extended temp: -40 ~ 85C, HALT applied. The PCM-3356 comes with PC/104 and miniPCIe expansion.

Features


  • AMD® G-SeriesTM Processor T16R 615 MHz
  • Supports up to 4 GB DDR3 SODIMM or 1 GB DDR3 on-board memory
  • Support 18-bit LVDS and VGA
  • Supports 3 COM ports, 4 USB 2.0 ports, dual GbE and audio codec
  • Support extended temp: -40 ~ 85C, HALT applied
  • Expansion: PC/104 and miniPCIe

Overview


The PCM-3356 has an AMD® G-Series™ Processor T16R 615 MHz it supports up to 4 GB DDR3 SODIMM or 1 GB DDR3 on-board memory. It is available with 18-bit LVDS and VGA. It alsoƒ supports 3 COM ports, 4 USB 2.0 ports, dual GbE and audio codec. This board is available with optional extended temp: -40 ~ 85C, HALT applied. The PCM-3356 comes with PC/104 and miniPCIe expansion.

Manuals
PCM-3356_user_manual.pdf
Data Sheets
PCM-3356 A2_DS.pdf

Specifications


Processor
CPU
AMD® G-SeriesTM Processor T16R
Clock Speed
615 MHz
Processor Misc.

L2 Cache: 512 KB

Memory
RAM
Supports up to 4 GB DDR3 SODIMM or 1 GB DDR3 on-board
Memory Misc.
  • Supports up to 4 GB DDR3 SODIMM (or) 1 GB DDR3 800 MHz on-board memory
  • 4GB DDR3 RAM sold separately
  • Socket: 1x 204-pin
Primary IO
GPIO
8-bit GPIO
Disk Interface
1x SATA 2.0, 1x Half size mSATA
Audio
ALC892 Codec / ALC886 co-lay
Video Out
Supports 18-bit LVDS and VGA
Ethernet
10/100/1000 Mbps Realtek RTL8111E-VB-GR
USB
4x USB 2.0
Serial Ports
3x RS-232/422/485
Secondary IO
CAN
1x SMBUS
Display
Chipset
AMD G-Series
LVDS Interface
Supports up to 1440 x 900 or 1400 x 1050 @ 18-bit LVDS
Multi-Display
LVDS + VGA
Expansion
Bus Expansion
1x PC/104, 1x Mini PCI Express, 1x I2C
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
3.8" ×4.5" (96mm × 114mm)
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1.38 A
Max Boot Current
1.65 A
Power Misc.
  • Power Type: AT/ATX
  • Battery: Lithium 3V / 210 210 mAH
  • Power Management: ACPI 4.0
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
85%
Environmental Misc.
  • Optional Wide Temp. -20 ~ 80° C
  • Optional Industrial Temp. -40 ~ 85° C

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
Stock
PCM-3356F-1GM0A2E PCM-3356F, AMD T16R, 1 GB DDR3, mSATA, 3x RS232/422/485, 4x USB2, 2x GbE, 8x GPIO, AUDIO, VGA & LVDS (0 ~ 60° C) $305.00
PCM-3356F-M0A2E PCM-3356F, AMD T15R, SODIMM, mSATA, 3x RS232/422/485, 4x USB2, 2x GbE, 8x GPIO, AUDIO, VGA & LVDS (0 ~ 60° C) $265.00
PCM-3356F-S0A2E PCM-3356F, AMD T40R DC, SODIMM, mSATA, 3x RS232/422/485, 4x USB2, 2x GbE, 8x GPIO, AUDIO, VGA & LVDS $295.00
PCM-3356Z2-1GM0A2E PCM-3356FZ, AMD T16R, 2 GB DDR3, mSATA, 3x RS232/422/485, 4x USB2, 2x GbE, 8x GPIO, AUDIO, VGA & LVDS (-40° ~ 85° C) $410.00
PCM-3356Z21G0BA2E PCM-3356FZ, AMD T16R, 1 GB DDR3, mSATA, 3x RS232/422/485, 4x USB2, 2x GbE, 8x GPIO, AUDIO, VGA & LVDS (-40° ~ 85­° C) $390.00

Peripheral Options


Product # Description Price
Operating Systems
SL040-XON-00010 EMAC OE Linux 4.0 for x86 Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
SC600-000-0010D Windows CE 6.0 Pro License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $25.00
