Features
- AMD Geode LX800/500 MHZ Fanless Processor
- 200-pin SO-DIMM up to 1GB DDR DRAM
- 18/24 Bit TFT & 18 Bit LVDS Video Interfaces
- Support Dual Independent Display (CRT, LVDS and TTL LCD)
- Intel 82551ER 10/100 Base-T Ethernet, Optional Dual Ethernet
- AC97 Audio Interface
- 4 x USB Ports
- 4 x Serial Ports
- Optional Extended Temperature
- Compact Flash Socket
- Supports PC/104 and PCI PC/104+ Interface
Overview

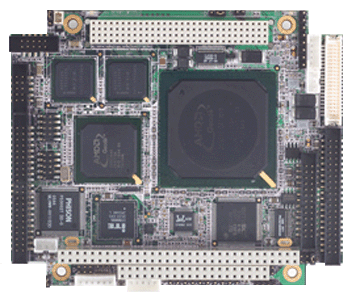

The PCM-3353 utilizes an onboard Ultra-Low Voltage Fanless AMD Geode LX800 500 MHz processor, which makes the PCM-3353 one of the smallest and most energy efficient x86 SBCs on the market. The PCM-3353 gives developers a low power, low cost and scalable platform that can fit into the tightest places. PC/104+, PCI/104 and PC/104 expansion allows features to be quickly added using any one of EMAC’s many PC/104, PC/104+, or PCI/104 expansion modules. The PCM-3353 is perfect for applications such as data acquisition and industrial automation where low power in a limited space is required.
| Manuals | |
|---|---|
| pcm-3353.pdf | Download (PDF) |
| 9375GPIO22.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PCM-3353_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | AMD Geode LX800 |
| Clock Speed | 500 MHz |
| Processor Misc. |
|
| Memory | |
|---|---|
| RAM | Support SO-DIMM DDR 333/400 MHz up to 1 GB |
| Primary Flash | supports one internal Type I CompactFlash™ socket |
| BIOS/ Bootloader | AWARD 4Mbit Flash BIOS |
| Memory Misc. | PCM-3353: One 200-pin SO-DIMM socket supports up to 1 GB DDR DRAM |
| Primary IO | |
|---|---|
| Disk Interface | 1x EIDE which supports 2x IDE Drives |
| Audio | AC97 2.0 with mic-In/line-in/line-out support |
| Video Out | AMD CS5536 CRT/LCD 4 - 64 MB Shared |
| Ethernet | Intel 82541PI 10/100/1000 Ethernet |
| USB | 4x USB 2.0 |
| Serial Ports | 3x RS-232, 1x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Display Type | Flat Panel and CRT displays |
| Chipset | AMD Geode LX800 |
| Resolution | Up to 1920 x 1440 @ 32 bpp |
| Multi-Display | CRT+LVDS |
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104, 1x PCI PC/104+ |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 4.5" ×3.8" (114mm × 96mm) |
| Power Requirements | |
|---|---|
| Typical Voltage | 5 V |
| Typical Current | 1.35 A |
| Power Misc. | Power Management: APM 1.2 |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Environmental Misc. |
|
| Related Products | |
Pricing
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-3353F-L | 500MHZ PC/104+ SBC W/Single LAN/CF | Call |
| PCM-3353Z-L | 500MHZ PC/104+ SBC W/SINGLE LAN/CF/wide temp (NCNR) | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SL013-AMN-00060 | Xenomai Real-Time Extensions (one-time charge) | Call |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SD622-000-0010 | MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. | Call |
| SD622-000-0005 | ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA | $35.00 |
| SC600-000-0010D | Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $25.00 |
