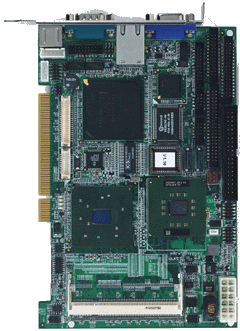

PCI-6886


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The PCI-6886 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 852GM chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

Features


  • Embedded Fanless Intel Celeron M 600 MHz Processor
  • Supports 400 MHz Front Side Bus
  • Supports 200 MHz & 266MHz DDR SDRAM
  • Supports of to 1000Base-T Ethernet on board
  • Supports up to 2 Channel 36 bits LVDS for LCD
  • Provides both Analog VGA and DVI
  • Supports 4 x USB 2.0 ports

Overview


The PCI-6886 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 852GM chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCI-6886's design is based on the small Half-Size PCI Card form factor and provides support for PCI Card expansion through the use of a passive PCI backplane. EMAC can provide backplanes and enclosures for the PCI-6886.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an Ethernet port, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports both PIO and UDMA/100 bus master modes. Up to four IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives.

Specifications


Processor
CPU
Embedded Fanless Intel Celeron M
Clock Speed
600 MHz
Processor Misc.

Chipset: Intel 852GM/GMCH + 6300ESB

Memory
RAM
2x 200-pin DDR SODIMM
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 4Mbit Flash BIOS
Primary IO
GPIO
8x GPIO
Disk Interface
1x FDD, 2x EIDE support for 4 Devices
Audio
AC97 (line-in/Line-out/Mic-in)
Ethernet
IEEE 802.3U/ 802.3z/ab 100/1000 Base-T RJ-45 82551ER
Serial Ports
3x RS-232, 1x RS-232/422/485
Secondary IO
PS/2
Yes
Display
Chipset
Intel 852GM chip integrated. (Extreme Graphics 2)
LVDS Interface
2 Channel LVDS (36-bit)
Multi-Display
Dual Independent CRT/DVI + LVDS
Expansion
Bus Expansion
1x PCI
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), ROM-DOS 6.22 / MS-DOS 6.22
Operating Systems Compatibility
  •  RTAI Real-Time Linux
  • Wind River VxWorks
  • QNX Neutrino RTOS

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.27 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1.9 A
Max Boot Current
2.5 A
Power Misc.
  • Power Management: APM 1.2, ACPI support

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCI-6886F-M Celeron M 600 MHZ PCI Slot CARD 100 Base-T Call
PCI-6886FG-M Celeron M 600 MHZ PCI Card W/ 1000 Base-T Call
