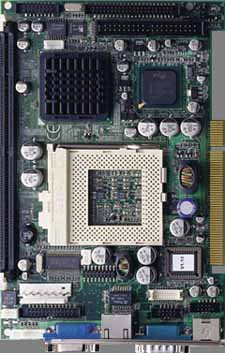

PCI-6870


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Receive consultation or quotes about this product from our sales staff.

Request a quote

The PCI-6870 is the latest effort to provide new PCI based solutions to our customers. This SBC is based solely on the PCI bus standard.

Features


  • Supports Socket 370 for Intel� Pentium®III/Celeron� processor up to 1.26/1.2 GHz
  • High speed Direct AGP for VGA display (815E built-in)with an optional video module supporting DVI,and TV out
  • 10/100Base-T Fast Ethernet (Intel® 815E built-in and Intel® 82562ET onboard)
  • USB interface compliant with USB rev.1.1
  • Supports CompactFlash™ Type II cards
  • System overheat temperature control
  • Watchdog timer,jumperless on-line setup supported
  • Supports wake-up on LAN
  • Supports PCI interface compliant with PCI rev.2.1
  • Supports four PCI Bus masters

Overview


The PCI-6870 is the latest effort to provide new PCI based solutions to our customers. This SBC is based solely on the PCI bus standard.

The advantage of using the PCI bus standard is the higher performance of 32-bits at 33 MHz compared to the ISA buses' standard 8/16-bits at 8 MHz. This increased performance makes PCI cards especially attractive for communication applications. PCI bus cards also provide for easy expansion. For example,adding another Ethernet port could easily be done on a PCI bus card. Also,other high-speed add-on cards need a PCI interface. High speed Add-on communication cards are good examples of this.

The PCI-6870 supports both 0.13 micron and 0.18 micron socket 370 Pentium® III/Celeron™ processors of FSB 100/133. Using Intel® 815E chipset, it can support a Pentium® III CPU up to 1.24GHz or a Celeron™ CPU up to 1.2 GHz. PCI-6870 uses the VGA controller in the 815E chipset and supports Direct AGP. The VGA memory is UMA shared memory and can be further upgraded to 4MB with an optional module. There are 2 serial ports, one RS-232 and one RS-232/422/485. The PCI-6870's USB interface is USB rev. 1.1 compliant. There is a 10/100 Mbps Ethernet interface as well as SIR IrDA compliant infrared support. The PCI IDE interface has two IDE channels and supports 4 IDE devices with Ultra DMA33 with Bus Mastering up to 33MB/sec. In addition, channel one IDE supports Ultra DMA 33/66/100.

Specifications


Processor
CPU
Socket 370 for Intel Pentium III/Celeron
Clock Speed
1.26 GHz
Processor Misc.
  • Chipset: Intel® 815E PCI set, FSB 100/133 MHz
  • 2nd level cache: 128/256 KB on Celeron™ /Pentium® III Processors
Memory
RAM
512MB 1x DIMM Socket supports PC100/133
Primary Flash
1x CompactFlash™ card Type II
BIOS/ Bootloader
AWARD 256KB Flash BIOS
Primary IO
Disk Interface
1x FDD, 2x EIDE (Ultra DMA33/66/100)
Audio
AC97 (line-in/Line-out/Mic-in)
Ethernet
10/100Base-T Ethernet IEE 802.3u 82562ET
USB
2x USB
Serial Ports
1x Parallel SPP/EPP/ECP, 1x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • IrDA port: One 115 kbps IrDA 1.0 compliant
  • On-board Security: CPU over temperature



Secondary IO
PS/2
Yes
Display
Display Type
Supports CRT.
Chipset
Intel® 815E (Direct AGP)
Expansion
Bus Expansion
1x PCI Bus
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, MS-DOS 6.22 / ROM-DOS 6.22
Operating Systems Compatibility
  • Wind River VxWorks
  • QNX Neutrino RTOS

Mechanical and Environmental


Dimensions
Size
7.28" ×4.8" (184mm × 121mm)
Weight
0.26 kg
Power Requirements
Typical Voltage
5 V
Typical Current
6.88 A
Max Boot Current
8 A
Power Misc.

Power Management: Supports Advanced Power Management

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCI-6870-0 Socket 370 half-size PCI CPU card $0.00
