PCA-6773


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

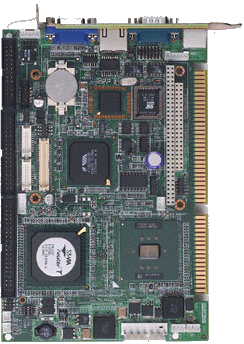

The PCA-6773 targets home automation, POS, Networking, and Kiosk/POI markets. To fulfill the critical demand of the these  markets, PCA-6773 features a PC/104 expansion interface, large size display support ability, Ethernet LAN and yet still remains a cost-effective solution. The PCM-6773 comes with a VIA 8606 Twister T North Bridge integrated AGP 4X 2D/3D graphics accelerator. The Twister video chip will drive 18 bit/36 bit dual channel LVDS and TTL LCD Displays in addition to a standard analog CRT display.

Features


  • Intel Fanless Celeron® ULV400, 650 or Pentium® 933 CPU on board
  • 4 x AGP graphics for high performance video based applications
  • 18/36-bit TTL/LVDS LCD Support
  • 10/100 Mbps Ethernet
  • 4 USB 1.1 ports
  • PC/104 Expansion
  • RS-485 auto-flow

Overview


The PCA-6773 targets home automation, POS, Networking, and Kiosk/POI markets. To fulfill the critical demand of the these  markets, PCA-6773 features a PC/104 expansion interface, large size display support ability, Ethernet LAN and yet still remains a cost-effective solution. The PCM-6773 comes with a VIA 8606 Twister T North Bridge integrated AGP 4X 2D/3D graphics accelerator. The Twister video chip will drive 18 bit/36 bit dual channel LVDS and TTL LCD Displays in addition to a standard analog CRT display.

The 10/100Base-Tx Ethernet controllers provide superior networking access ability. The CompactFlash socket can offer a larg solid-state Flash Drive for data storage of all types and the integrated AC97 2.0/Sound Blaster legacy audio provides crisp clean sound for multimedia applications. The PCA-6773's design is based on the small Half-Size ISA Card form factor and provides support for Standard ISA Card expansion through the use of a passive ISA backplane. EMAC can provide backplanes and enclosures for the PCA-6773.


Specifications


Processor
CPU
Onboard Intel Fanless Celeron ULV or Pentium
Clock Speed
400 MHz
Processor Misc.

Chipset: VIA TwisterT, VT8606

Memory
RAM
512MB PC133 SDRAM SODIMM Socket
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 256KB Flash BIOS
Primary IO
Disk Interface
1x EIDE (Ultra DMA 100)
Audio
speaker-out/Line-in/Line-out/Mic-in
USB
4x USB 1.1 compliant port
Serial Ports
1x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • I/O Chipset: VIA VT82C686B
  • Parallel port: SPP/EPP/ECP Printer LPT port
  • IR interface: 115 Kbps SIR, IrDA 1.0 compliant



Secondary IO
PS/2
Yes
Display
Chipset
VIA TWISTER T with integrated Savage 4 2D/3DVideo Accelerator
Expansion
Bus Expansion
1x ISA Bus PC/104
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), ROM-DOS 6.22 / MS-DOS 6.22
Operating Systems Compatibility
  • Wind River VxWorks
  • QNX Neutrino RTO
  • RTAI Real-Time Linux

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.27 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
2.5 A
Max Boot Current
5 A
Power Misc.

Power Management: APM 1.1

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCA-6773-J ULV Celeron 400 MHZ ISA Slot CPU Card Call
PCA-6773-M ULV Celeron 650 MHZ ISA Slot CPU Card Call
PCA-6773-R LV Pentium 933 MHZ ISA Slot CPU Card Call
