PCA-6763


  • ƒƒ Ultra low power, fanless AMD Accelerated Processing Unit T16R
  • ƒƒ 1GB DDR3 1066 memory onboard plus upto 4GB DDR3 1066 SODIMM
  • ƒƒ Dual independent display (VGA, LVDS or DVI)
  • ƒƒ Up to 2 GbE LAN supported
  • ƒƒ Up to 7 USB 2.0 (480 Mbps)
  • ƒƒ legacy I/O, such as FDD/ PC/104/ COM/ LPT supported

Receive consultation or quotes about this product from our sales staff.

Request a quote

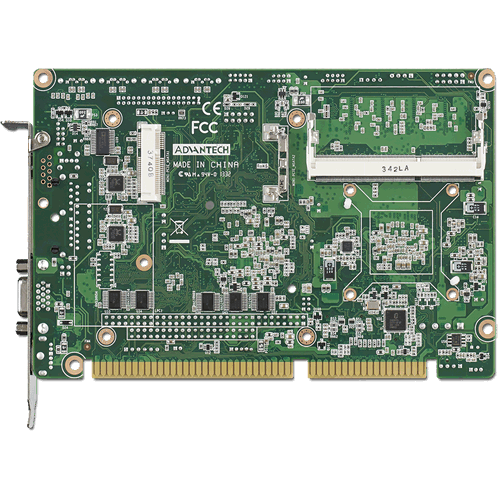

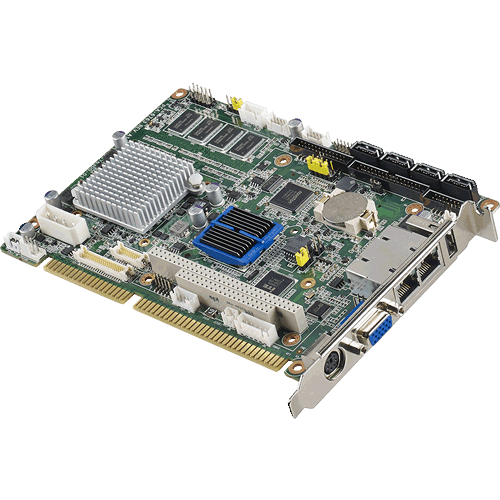

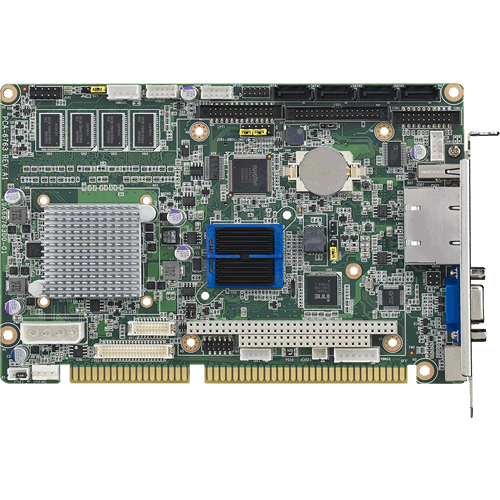

PCA-6763 is an AMD G-series T16R based, fanless ISA half-size single board computer. With AMD's fully Iegacy support, the product provides completed ISA function and is compatible with a variety of operation systems, such as, Win CE6.0, XPE, Windows XP and Windows 7, offering customers an ideal solution in manufacturing and factory automation.

Features


  • ƒƒUltra low power, fanless AMD Accelerated Processing Unit T16R
  • ƒƒ1GB DDR3 1066 memory onboard plus upto 4GB DDR3 1066 SODIMM
  • ƒDual independent display (VGA, LVDS or DVI)
  • ƒƒUp to 2 GbE LAN supported
  • Up to 7 USB 2.0 (480 Mbps)
  • ƒlegacy I/O, such as FDD/ PC/104/ COM/ LPT supported
  • Ultra low power, fanless AMD Accelerated Processing Unit T16R
  • 4 SATA 3.0 (600 MB/s) and 1 m-SATA (600 MB/s)
  • ƒlegacy I/O, such as FDD/ PC/104/ COM/ LPT supported
  • Optional module for 4 RS-422/485 or 4 RS-232, TPM and HD audio
  • 8x GPIO
  • G2 SKU: Supporting dual 10/100/1000 Mbps Ethernet ports with Realtek RTL8111E-VL-CG.
  • VG SKU: Supporting single 10/100/1000 Mbps Ethernet port with Realtek RTL8111E-VL-CG
  • Graphics:
    • Controller: APU integrated (AMD GPU Radeon HD 6250)
    • Display memory: Optimized shared memory architecture up to 384 MB system memory
    • Dual display support: G2 SKU: Choosing two interface from VGA (Default), LVDS, and DVI
      • CRT: Resolution can be up to 1920 x 1200 @60Hz
      • DVI (G2 SKU): Resolution can be up to 1920 x 1200 @60Hz
    • LVDS:
      • – G2 SKU: 48 bit (Dual channel 24 bit) LVDS up to 1920 x 1200 @ 60Hz
      • – VG SKU: 18 bit LVDS up to 1024 x 768@60Hz
  • Input/Output
    • ISA Backplane Support: PCA-6104-0C2E, PCA-6106-0B2E, PCA-6108E-0B2E
    • Enhanced parallel port: This EPP/SPP/ECP port can be configured to LPT1, LPT2, LPT3 or disabled
    • Serial ports: Two RS-232 serial ports on board. Extra four RS-232 or RS 422/ 485 serial ports supported by optional COM module via low pin count connector
        • (P/N: PCA-COM232-00A1E/PCA-COM485-00A1E)
    • PS/2 keyboard and mouse connector: 1 (6-pin DIN socket on bracket for PS/2 keyboard and mouse)
    • USB port:
      • – G2 SKU: USB 2.0 x7 (1 on bracket, 6 onboard)
      • – VG SKU: USB 2.0 x6 (6 on board)
    • SATA: Four SATA 3.0 ports (600 MB/s)
    • m-SATA: One m-SATA device (600MB/s)
    • Floppy Disk Drive Interface: One floppy drives, 5 1/4 (360KB and 1.2 MB), and/or 3 1/2 (720KB, and 1.44 MB) BIOS enable/ disable
    • HD audio: One HD AUDIO interface for optional module: PCA-AUDIO-HDA1E
    • Low pin count: One low pin count connector for optional module: PCACOM232-00A1E/PCA-COM485-00A1E/PCA-TPM-00A1E
    • GPIO: 8-bit GPIO support
    • ISA & PC/104: Support full 16-bit ISA bus interface and one PC/104 connector



Overview


PCA-6763 is an AMD G-series T16R based, fanless ISA half-size single board computer. With AMD's fully Iegacy support, the product provides completed ISA function and is compatible with a variety of operation systems, such as, Win CE6.0, XPE, Windows XP and Windows 7, offering customers an ideal solution in manufacturing and factory automation.

Besides completed ISA and PC/104 support, the single board computer designed with onboard memory, m-SATA and fanless thermal module targets especially in low power and vibration concerned applications, such as motion control, and entry-level CNC. For customer requiring more than one GbE LAN and 1GB onboard memory, the model offers dual LAN SKU and extra SO-DIMM socket (up to 4GB) to get better flexibility.

As for I/O support, the single board computer provides four SATA III interface (600MB/s) for mainstream SSD, HDD, and ODD connections. It also has up to seven USB 2.0 ports for USB devices. Additionally, the two RS-232 ports can be used as reliable legacy device control interfaces. Users can purchase a COM module (P/N: PCA-COM485-00A1E and PCA-COM232-00A1E) to have four extra serial ports with auto flow control capability.

In addition to board-level products, also offered is a series of small form-factor wall-mount chassis. With the low power, compact sized, high-reliability, and system-level solutions, PCA-6763 is the ideal computing platform for modern industrial applications.

Manuals
PCA-6763_User_Manual_Ed.1.pdf
PCA-6763_Startup_Manual_Ed.1.pdf
Data Sheets
PCA-6763_DS.pdf

Specifications


Processor
CPU
AMD G-Series APU T16R
Clock Speed
615 MHz
Processor Misc.
  • Ultra low power, fanless AMD Accelerated Processing Unit T16R
Memory
RAM
1GB DDR3 1066 Onboard
Primary Flash
mSATA
Secondary Flash
4 x SATA 3.0 HDD/SSD or DOM
BIOS/ Bootloader
AMI-EFI
Memory Misc.
  • up to 4GB on 1 x 204-pin SODIMM socket
Primary IO
GPIO
8x GPIO
Disk Interface
4 x SATA 3.0 & 1x mSATA
Audio
HD Audio (optional)
Video Out
VGA & LVDS, (DVI Optional)
Ethernet
10/100/1000 Mbps (2x 10/100/1000 Mbps on G2)
USB
6x USB2
Serial Ports
Two RS-232 onboard pin-headers
Primary I/O Misc.
  • 1x parallel (EPP/ECP/SPP)
Secondary IO
LPT Port
Yes
PS/2
Yes
Secondary I/O Misc.
  • Floppy disk interface
Display
Display Type
VGA
Chipset
AMD GPU Radeon HD 6250)
Resolution
Up to 1920 x 1200 @ 60Hz
LVDS Interface
18 bit LVDS up to 1024 x 768 @ 60Hz
Expansion
Bus Expansion
1x ISA Bus & PC/104
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Dimensions Misc.
185 mm (L) x 122 mm (W) (7.3" x 4.8")
Power Requirements
Power Misc.
  • Power-

+12v @ .17A
+5v @1.87A

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
85%
Environmental Misc.

Operating
Temperature 0 ~ 60° C (32 ~ 140° F) (operating humidity:40° C @ 85% RH Non-Condensing)

Non-Operating
-40° C ~ 85° C and 60° C @ 95% RH Non-Condensing

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCA-6763G2 PCA-6763G2, AMD T16R, 1GB, 2x 232, 7x USB2, 2x GbE, 8x GPIO, VGA & DVI $325.00
PCA-6763VG PCA-6763VG, AMD T16R, 1GB, 2x 232, 6x USB2, 1x GbE, 8x GPIO, VGA $298.00
