PCA-6753

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

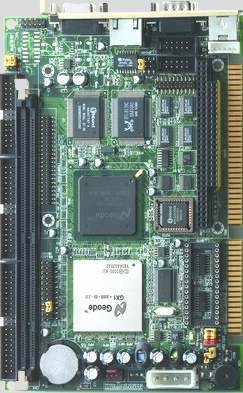

The PCA-6753 is a Half-sized ISA bus SBC with an on-board, embedded low power 300 MHz NS GX1 processor. Other on-board features include a VGA/LCD controller with Universal Memory architecture, 18-bit LCD TFT display, 10/100 Mbps PCI Ethernet interface. A PC/104 expansion connector is provided, plus SSD support for DiskOnChip Flash Disk. A 62-level watchdog timer and jumperless on-line setup is also supported. In addition, the Geode Pentium Classs CPU has been specially designed to work well in environments with temperatures of up to 60°C without need of a fan.

Features

  • On-board NS GX1-233 MHz CPU or low power GX1-300
  • ISA Bus Interface
  • On-board PC/104 expansion connector
  • On-board 10/100 Base-T Ethernet with wake-up on LAN/Modem
  • 62 Level Watchdog Timer
  • On-board VGA/LCD Display Controller with Backlight control
  • DiskOnChip Flash Disk support
  • Single +5 V power supply
  • Fanless Operation

Overview

The PCA-6753 is a Half-sized ISA bus SBC with an on-board, embedded low power 300 MHz NS GX1 processor. Other on-board features include a VGA/LCD controller with Universal Memory architecture, 18-bit LCD TFT display, 10/100 Mbps PCI Ethernet interface. A PC/104 expansion connector is provided, plus SSD support for DiskOnChip Flash Disk. A 62-level watchdog timer and jumperless on-line setup is also supported. In addition, the Geode Pentium Classs CPU has been specially designed to work well in environments with temperatures of up to 60°C without need of a fan. Eliminating the CPU fan from a system significantly reduces MTBF worries.

Specifications

Processor
CPU
On-board NS
Clock Speed
300 MHz
Memory
RAM
Up to 128MB SDRAM DIMM
Primary Flash
DiskOnChip 2000
BIOS/ Bootloader
AWARD 256KB Flash BIOS
Primary IO
Disk Interface
2x FDD, 2x Enhanced IDE (UDMA 33)
Video Out
NS CS5535 CRT/LCD
Ethernet
10/100 Ethernet
USB
2x USB 2.0
Serial Ports
1x Parallel SPP/EPP/ECP, 1x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • Serial Ports (PCA-6753FC) : 3x RS-232 1x RS-232/422/485
  • Infrared port: Supports up to 4 Mbps FIR transmitting rate, IrDA 1.1 compliant

NS CX5530 VGA Interface

  • Chipset: NS CX5530
  • Display memory: 1 ~ 4 MB shared with system memory
  • Display type: Simultaneously supports for CRT and 18-bit TFT LCD display (supports 3.3 V LCD)
  • Resolution:
    • Non-interlaced CRT monitor resolution up to 1024 x 768 at 16 bpp
    • Panel resolution up to 1024 x 768 at 18 bpp TFT panel
Secondary IO
PS/2
Yes
Expansion
Bus Expansion
1x ISA Bus PC/104
Misc
Operating Systems
EMAC OE Linux, MicroPython

Mechanical and Environmental

Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.48 g (0 lbs)
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1.5 A
Max Boot Current
4 A
Power Misc.

Power management: APM 1.2 compliant power management
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products
VDX-6324

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCA-6753F-G GX1-300 MHZ Slot SBC W/ LAN, VGA/LCD Call
PCM-6753FC-G GX1-300 MHZ SBC W/ LAN, 4 COM, VGA/LCD Call
