PCA-4551


  • Intel® Atom™ N455 1.66Ghz Processor
  • Fanless, -20 ~ 70°C (32 ~ 140°F) operation
  • Dual 10/100/1000 Base-T Fast Ethernet Connections
  • Supports Compact Flash (SSD) over 1 GB

Receive consultation or quotes about this product from our sales staff.

Request a quote

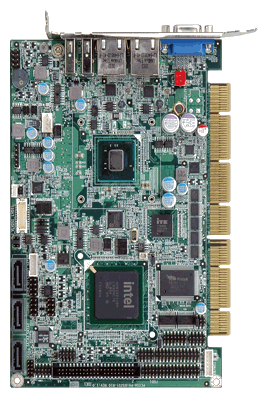

The PCA-4551 is a Half-Size PCISA CPU Card with Intel® Atom™ N455, up to 2 GB DDR3 SDRAM, dual display VGA/LVDS, Dual PCIe GbE, USB 2.0, three RS-232 and one RS232/422/484, three SATA II, Audio and RoHS. **Flash Disk and Memory not included.**

Features


  • Intel® Atom™ N455 1.66Ghz Processor
  • Fanless, -20 ~ 70°C (32 ~ 140°F) operation
  • Dual 10/100/1000 Base-T Fast Ethernet Connections
  • Supports Compact Flash (SSD) over 1 GB
  • ISA bus interface

Overview


The PCA-4551 is a Half-Size PCISA CPU Card with Intel® Atom™ N455, up to 2 GB DDR3 SDRAM, dual display VGA/LVDS, Dual PCIe GbE, USB 2.0, three RS-232 and one RS232/422/484, three SATA II, Audio and RoHS.



**Flash Disk and Memory not included.**

Manuals
PCISA-PV-D4251_N4551_D5251_UMN_v1.04.pdf
PCA-4551_QIG .pdf
Data Sheets
PCA-4551_QIG .pdf

Specifications


Processor
CPU
Intel Atom N455
Clock Speed
1.66 GHz
Processor Misc.
  • I/O Chipset: Fintek F81865
  • L2 cache: 512KB
Memory
Primary Flash
1x CompactFlash™ card Type II
Primary IO
Disk Interface
1x EIDE
Audio
Realtek ALC888 HD codec with Line-in/Line-out/Mic-in
Video Out
Intel ICH8M CRT/LVDS
Ethernet
Realtek RTL8111E 2x RJ45
USB
2x USB
Serial Ports
1x Parallel, 3x RS-232, 1x RS-232/422/485
Primary I/O Misc.

IR interface: Supports one IrDA Tx/Rx header

Display

  • CRT Mode: Analog CRT up to 1400x1050, Support CRT hot plug.
  • LVDS: Supports 18-bit Single channel LVDS interface, up to WXGA 1366x768 or XGA 1024x768




Secondary IO
PS/2
Yes
Display
CRT-VGA Interface
Analog CRT up to 1400x1050
LVDS Interface
Supports 18-bit Single channel LVDS interface up to WXGA 1366x768 or XGA 1024x768
Expansion
Bus Expansion
PCISA edge card
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09

Mechanical and Environmental


Dimensions
Size
7.3" ×5.04" (185mm × 128mm)
Weight
1 kg
Power Requirements
Voltage
5 V
Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature70 C (158 F)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCA-4551-0 ATOM 1.66 GHZ, DUAL GBE PCISA Slot CPU Card $364.00

Peripheral Options


Product # Description Price
Operating Systems
SL040-XON-00010 EMAC OE Linux 4.0 for x86 Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
SC600-000-0010D Windows CE 6.0 Pro License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $25.00
