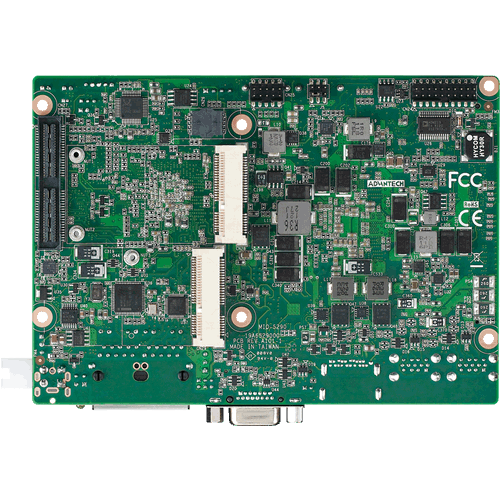

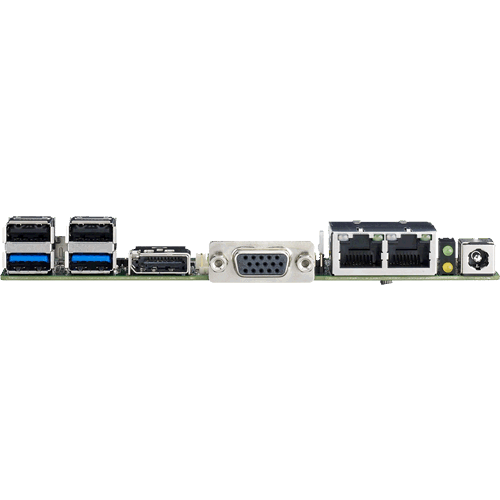

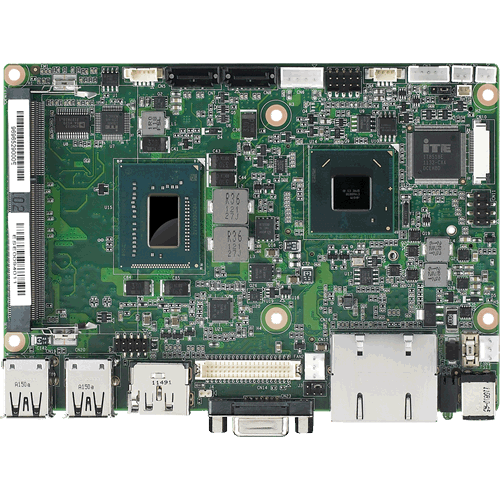

MIO-5290 3.5" SBC


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The manufacturer created the stackable architecture MI/O Extension Single Board Computer as a SBC design with flexible and multiple I/O support (hence the name MI/O) and united extended interface connector. The new MI/O Extension Single Board Computer: MIO-5290, based on the 3rd generation Intel ® Core™ processors with QM77 chipset, supports either 1600MHz DDR3 or low power 1333MHz DDR3L, USB 3.0, SATA III (600 MB/s), AMT 8.0, and can drive three independent displays (two DP combine with any other device). MIO-5290 provide not only the powerful computing capability but also a great graphic capacity platform. It’s suitable to aim various high level embedded applications.

Features


  • Intel® Core™ i7, i3 and Celeron + Intel QM77 PCH i7 3555LE 2.5 GHz / i7 3517UE 1.7 GHz / i3 3217UE 1.6GHz Dual-Core
  • Up to 8GB DDR3 1600MHz, DDR3L 1333 MHz
  • 1x RS-232, RS-232/422/485
  • 2x USB 2.0, 2x USB 3.0 Ports
  • 2x 10/100/1000 Mbps
  • VGA/HDMI/DP/LVDS
  • DirectX11, OpenGL3.1, OpenCL1.1, 3 independent display: VGA or LVDS + DisplayPort + DisplayPort (from MIOe)
  • 2x SATA III (600 MB/s), mSATA or full size miniPCIe
  • Mini PCIe 1x Full-size 1x Half-size, MIOe
  • Realtek ALC892 HD Line-in, Line out, Mic-inAmplifier Optional via MIOe
  • 8-bit GPIO
  • Supports iManager, SUSIAccess and Embedded Software APIs
  • Flexible design using integrated multiple I/O: MIOe to approach vertical applications & keep domain knowhow
  • Supports Intel® AMT8.0, USB 3.0, TPM1.2
  • AMI EFI 64Mbit BIOS
  • Operating temperature: 0 ~ 60°C (32 ~ 140°F)
  • Operating Humidity: 40°C @ 85% RH Non-Condensing
  • Storage Temperature: Storage temperature: -40~85°C
  • Storage Humidity: Relative humidity: 95% @ 60°C
  • Power Requirement: Single +12V DC ± 10% power input
  • Dimensions: 146 x 102 x 37mm

Overview


The manufacturer created the stackable architecture MI/O Extension Single Board Computer as a SBC design with flexible and multiple I/O support (hence the name MI/O) and united extended interface connector. The new MI/O Extension Single Board Computer: MIO-5290, based on the 3rd generation Intel ® Core™ processors with QM77 chipset, supports either 1600MHz DDR3 or low power 1333MHz DDR3L, USB 3.0, SATA III (600 MB/s), AMT 8.0, and can drive three independent displays (two DP combine with any other device). MIO-5290 provide not only the powerful computing capability but also a great graphic capacity platform. It’s suitable to aim various high level embedded applications.

MIO-5290 adapt the newest solution from Intel with 22nm process and leading innovation: Tri-Gate Transistor architecture (Higher performing transistors and lower leakage). It can have up to ~15% CPU performance increase with lower or the same power consumption. DDR3-1600 and DDR3L-1333 for speedier communication between components at lower power. The fastest I/O, such as USB 3.0 or SATA port up to 6Gb/s is also available on MIO-5290. It will be the best choice to construct next intelligent system.

MIO-5290 contains a latest generation graphics core (Intel® HD Graphics 4000) with DXVA (full AVC/VC1/MPEG2 Hardware Acceleration), OpenGL* 3.0 and DirectX 11 support. Up to ~50% 3D performance increase and 1.8X HD to HD transcode performance. It can help customer easily to implement high quality video or graphic application through MIO-5290 along with single and simple integrated solution. MIO-5290 also can support Dual Display by any combination interface from board. 3 independent displays also can be available through two display ports (one from MIO extension) with VGA or LVDS.

Manuals
MIO-5290_User_Manual_Ed-1_FINAL.pdf
Data Sheets
MIO-5290_DS.pdf

Specifications


Processor
CPU
Intel® Core™ i7 / i3 and Celeron + Intel QM77 PCH i7 3555LE 2.5 GHz / i7 3517UE 1.7 GHz / i3 3217UE 1.6GHz Dual-Core
Clock Speed
2.5 GHz
Memory
RAM
Up to 8GB DDR3 1600MHz / DDR3L 1333 MHz
BIOS/ Bootloader
AMI EFI 64Mbit
Primary IO
GPIO
8-bit GPIO
Disk Interface
2x SATA III (600 MB/s) / mSATA or full size miniPCIe
Audio
Realtek ALC892 HD Line-in / Line out / Mic-in / Amplifier Optional via MIOe
Video Out
VGA/HDMI/LVDS
Ethernet
2x 10/100/1000 Mbps
USB
2x USB 2.0 & 2x USB 3.0 Ports
Serial Ports
1x RS-232 & RS-232/422/485
Secondary IO
Expansion
Bus Expansion
Mini PCIe 1x Full-size 1x Half-size / MIOe
Misc
Operating Systems
EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental


Dimensions
Size
5.7" ×4" (144mm × 101mm)
Weight
0.84 kg
Dimensions Misc.
146 x 102 mm (5.7" x 4"), same as 3.5" SBC
Power Requirements
Voltage
12 V
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
MIO-5290L-U5A1E 3.5" SBC, MIO-5290L i7-3555LE, 2xCOM, 2xUSB3, 4xUSB2, 2xGbE, Audio, VGA, HDMI/DP ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. Call
MIO-5290U-S4A1E 3.5" SBC, MIO-5290U4, 1047UE, 2xCOM, 2xUSB3, 4xUSB2, 2xGbE, Audio, VGA, HDMI/DP ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. Call
MIO-5290U-S6A1E 3.5" SBC, MIO-5290U6, i3-3217UE, 2xCOM, 2xUSB3, 4xUSB2, 2xGbE, Audio, VGA, HDMI/DP ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. Call
MIO-5290U-S7A1E 3.5" SBC, MIO-5290U7, i7-3517UE, 2xCOM, 2xUSB3, 4xUSB2, 2xGbE, Audio, VGA, HDMI/DP ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. Call

Peripheral Options


Product # Description Price
Peripherals
PER-PWR-00089 1757003995, 12V@5A 60W 4.5mm Barrel jack for SBC, AC 120-240V (requires AC power cable) $27.00
Memory
PER-RAM-00161 4GB DDR3L 1.35V SODIMM Call
PER-RAM-00165 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) Call
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) $125.00
