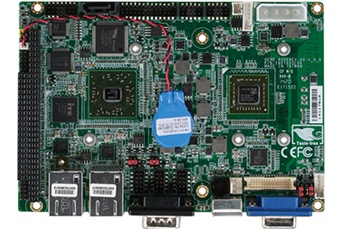

GENE-A55E
21gpi51132 The CPU is EOL for this product, please see this article for more information.
GENE-A55E adopts AMD G-Series T16R single core processor. The system memory is deployed with 204-pin SODIMM DDR3L 1066MHz up to 4 GB. In addition, Realtek® RTL8111E supports 10/100/1000Mb LAN that allows faster network connections.
Features
- AMD G-series T16R Single Core 615MHz Processor
- AMD A55E
- DDR3L SODIMM 1066 MHz Memory, Max. 4GB
- VGA, 18/24-bit Dual Channel LVDS LCD
- 2CH HD Audio
- SATA 3.0Gb/s x 1 & CompactFlash™ x 1
- PC/104 Interface Support
- Gigabit Ethernet x 2
- Support Digital I/O 8-bit, USB2.0 x 4, COM x 4, LPT x 1
- Mini Card Slot x 1
- +5V Input, AT/ATX
Overview
The CPU is EOL for this product, please see this article for more information.
GENE-A55E adopts AMD G-Series T16R single core processor. The system memory is deployed with 204-pin SODIMM DDR3L 1066MHz up to 4 GB. In addition, Realtek® RTL8111E supports 10/100/1000Mb LAN that allows faster network connections.
The display of GENE-A55E supports VGA/LCD, simultaneous and dual view displays. This model applies Mini Card slots and 1x optional mSATA for flexible expansions. USB2.0 x 4, COM ports x 4 (RS-232 x 2, RS-232/422/485 x 2) are configured on the GENE-A55E as well. Full functions make GENE-A55E a flexible and user friendly solution. This brand new SubCompact board is developed to cater to the requirements of Automation, Medical, ticket machine, transportation, gaming, KIOSK, and POS/POI applications.
| Manuals | |
|---|---|
| GENE-A55E_manual_rev_A_2nd_ed.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| GENE-A55E.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | AMD G-Series Single Core Processor T16R |
| Clock Speed | 615 MHz |
| Memory | |
|---|---|
| RAM | up to 4 GB DDR3L SODIMM |
| BIOS/ Bootloader | AMI BIOS |
| Primary IO | |
|---|---|
| GPIO | 4 in and 4 out |
| Disk Interface | 1 x SATA & 1x mSATA |
| Audio | mic-In/line-in/line-out |
| Video Out | VGA |
| Ethernet | Realtek RTL8111E 10/100/1000Base-TX RJ-45 x 2 |
| USB | USB 2.0 x 4 |
| Serial Ports | RS-232 x 2, RS232/422/485 (auto flow) x 2 |
| Secondary IO | |
|---|---|
| LPT Port | Yes
|
| Display | |
|---|---|
| Chipset | AMD® G-series T16R processor integrated Graphics Engine |
| Resolution | VGA up 1920 x 1200 LCD up to 1920 x 1200 (By Chrontel CH7511) |
| Expansion | |
|---|---|
| Bus Expansion | PC/104 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, FreeRTOS, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.75" ×4" (146mm × 101mm) |
| Weight | 0.88 lb |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| GENE-A55E-0 | 3.5” SubCompact Board with AMD G-series T16R Processor | $332.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Memory | ||
| PER-RAM-00161 | 4GB DDR3L 1.35V SODIMM | Call |
| PER-RAM-00165 | 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) | Call |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SD622-000-0005 | ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA | $35.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
