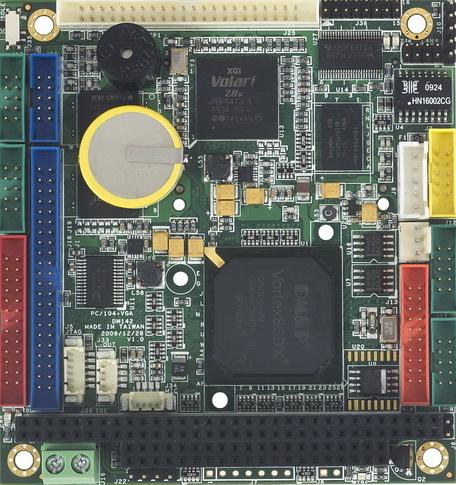

The VDX2-6554 PC/104 family of embedded controller is designed with backward compatibility in mind, to provide migration path for projects facing end-of-life challenges with their existing x86 based PC/104 controller. The VDX2-6554 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering.
The VSX-6124 utilizes an onboard Vortex86SX Fanless 300MHz processor built for Ultra Low Power Consumption. The processor is highly integrated so that it reduces the price of any board utilizing this processor. The VSX-6124 is comes with a PC/104 bus connector and an optional PCI-104 / PC/104+ bus connector which allows it to utilize higher end PCI bus based modules. **Flash Disk not included.**
MIO-2263 is a MI/O-Ultra SBC (Single Board Computer) with Embedded Intel® Atom™ SoC J1900 2.0 GHz and E3825 1.33 GHz Processor. The MIO-2263 can support DDR3L memory up to 8 GB, has one USB 3.0 and 3 USB2.0 compatible ports, one GbE (up to 1000 Mbps) interface, LVDS and VGA or HDMI support, HD (High Definition) audio, and one half size mini-PCIe and MIOe expansion slot. In addition, MIO-2263 also supports one SATA drive, two COM ports, SMBus, one GPIO and one half size mSATA slot. The innovative MI/O (multiple I/O) Extension SBC is equipped with flexible multiple I/O to assist integrators in developing optimized solutions.

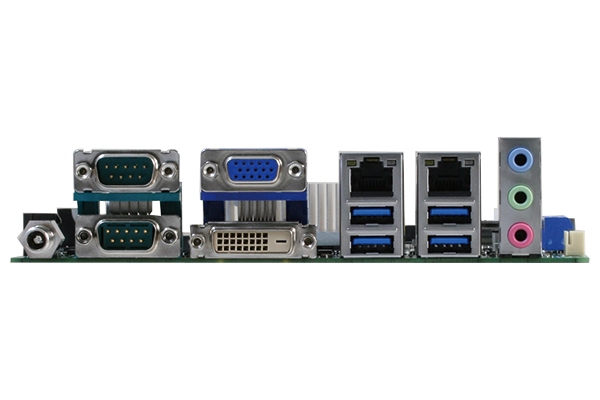

EMB-BSW2 Mini-ITX
32Epi11164
32cpi51164 New Industrial Motherboard with the N3000 series CPU
As its name suggests, the EMB-BSW2 utilizes the latest iteration of Intel’s SoC products that was geared specifically towards mobile devices. In addition to enhancements brought on by the new chips, which include improved power consumption, thermals, and performance, the board itself carries a number of features to aid its designedpurpose of digital signage, ATM, and POS applications.
Firstly, its power requirement is a standard of 12 V.
Features
- Intel® N3060 Processor
- Up to 8 GB DDR3L 1333/1600 MHz SODIMM
- Three Independent Display: VGA, DVI-D & LVDS
- SATA 6.0 Gb/s & M.2 M-Key SATA
- 4x USB 3.0, 2x USB 2.0
- Half-size Mini-Card (PCIe + USB)
- PCIe x1 Slot
Overview
New Industrial Motherboard with the N3000 series CPU

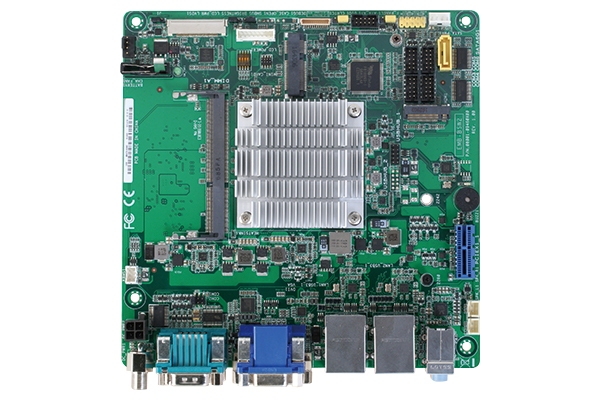

As its name suggests, the EMB-BSW2 utilizes the latest iteration of Intel’s SoC products that was geared specifically towards mobile devices. In addition to enhancements brought on by the new chips, which include improved power consumption, thermals, and performance, the board itself carries a number of features to aid its designedpurpose of digital signage, ATM, and POS applications.
Firstly, its power requirement is a standard of 12 V.
| Manuals | |
|---|---|
| EMB-BSW2_UM.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| EMB-BSW2_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel Braswell Celeron |
| Clock Speed | 2.48 GHz |
| Processor Misc. | Intel Braswell Family Celeron N3060 2 Cores 1.6GHz to 2.48GHz 6W |
| Memory | |
|---|---|
| RAM | up to 8GB DDR3L SODIMM Socket |
| Primary Flash | M.2 M-key (2242/2280) for SATA |
| BIOS/ Bootloader | AMI BIOS |
| Primary IO | |
|---|---|
| GPIO | 8x DIO |
| Disk Interface | 1x SATA, 1x M.2 for SATA |
| Audio | Realtek® ALC3236-CG (Line-in |
| Video Out | VGA, DVI-D & LVDS |
| Ethernet | 2x GbE LAN (Realtek 8111G) |
| USB | 4x USB3.0 & 2 x USB 2.0 ports |
| Serial Ports | 5x COM Port(4x RS-232, 1x RS-232/422/485) |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Chipset | Intel® HD Graphics |
| Resolution | Up to 1920 x 1200 @60Hz |
| CRT-VGA Interface | Up to 1920 x 1200 @60Hz |
| LVDS Interface | Up to 1920 x 1200 @60Hz |
| HDMI/DVI Interface | DVI-D Up to 1920 x 1200 @60Hz |
| Multi-Display | Three independent displays (VGA + DVI-D + LVDS) |
| Expansion | |
|---|---|
| Bus Expansion | 1x PCIe2.0 x1, 1x M.2 M-key (for SATA), 1x Full-size Mini Card(PCIe +USB) |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 6.7" ×6.7" (170mm × 170mm) |
| Weight | 0.5 kg |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Power Misc. | 1x 12V DC input (back panel DC jack) & 1x 4-pin ATX 12V Power connector |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| EMB-BSW2-306R | EMB-BSW2-A10-3060, N3060 2x1.6 GHz, SODIMM, M.2 M-Key, SATA, 5xCOM, 4x USB3, 2x USB2, 2x GbE, VGA, DVI-D, LVDS | $165.00 |
| Build-to-order | |
|---|---|
|
EMAC can build the EMB-BSW2 Mini-ITX with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required. |
Call for pricing |
