With growing up in Multi-Touch technology, the PPC-1581 features Intel 4th Generation Core i3-4010U 1.7GHz processor with 4GB DDR3L SDRAM provides the high computing performance. To enhance reliability and durability, built-in 7H hardness anti-scratch surface on high resolution 15.6" HD display with Multi-Touch in 16:9 format. Through the Mini-PCIe slot, The Manufacturer's iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.

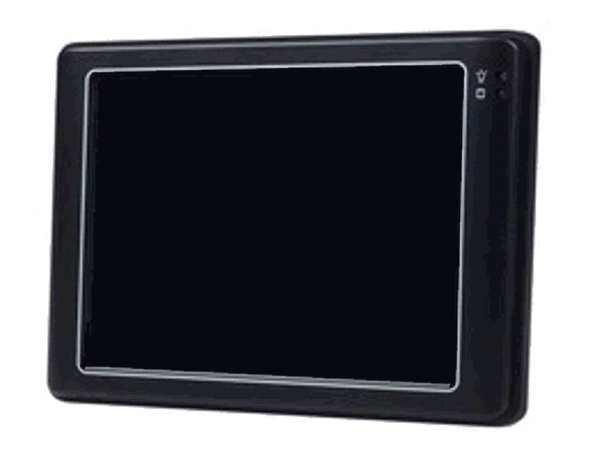

The PDX-089T panel PC is a VortexDX/MX low power processor based computer that is designed to serve as a human machine interface (HMI).
PDX2-057T is an ultra-compact platform for the present demanding embedded and productive applications.
Open-Frame PPCs
| Product # | Video/ Touchscreen | CPU | Memory | Serial Ports | Disk Interfaces | Bus | Dimensions | Other I/O |
|---|---|---|---|---|---|---|---|---|
DEV-SOM36 |
4.3 " TFT Color WQVGA LCD, 480 x 272, 4-Wire Analog Resistive | Atmel ARM Cortex A5 ATSAMA5D36 | 512 MB of DDR2 SDRAM, 4GB eMMC Flash Onboard | 2x RS-232, 1x RS-232/422/485 with Auto RS485, 2x USB 2.0, CAN, SPI | MicroSD | None | Open Frame PPC4.8" ×3" ×1.2" | 10/100 DP83640 IEEE 1588 PTP LAN & GbE Ethernet, Audio, 16x GPIO |
PPC-04-3354 |
4.3 " TFT Color WQVGA LCD, 480 x 272, 4-Wire Analog Resistive | TI ARM Cortex A8 based Processor AM3354, | 512 MB of DDR3 SDRAM, 4GB eMMC Flash Onboard | 3x RS-232 with handshaking, 1x RS-232/422/485 with Auto RS485, high-speed SPI with chip selects, I2C | SDIO SDHC/ MMC Flash Disk | None | Open Frame PPC4.8" ×3" ×1.2" | 10/100 Ethernet, Audio, 16x GPIO |
HMI-043T-O |
4.3” WQVGA TFT LCD, 4-wire Analog Resistive Touch Screen | DMP Vortex86EXm 400MHz | up to 256MB DDR3 onboard | 1x RS-232, 2x RS-485, 1xCAN | SD Slot or up to 2GB eMMC NAND Flash Memory Onboard | Expansion slots | Open Frame PPC4.15" ×2.65" ×0.54" | Ethernet, 2x USB2.0, 1x 8-bit GPIO |

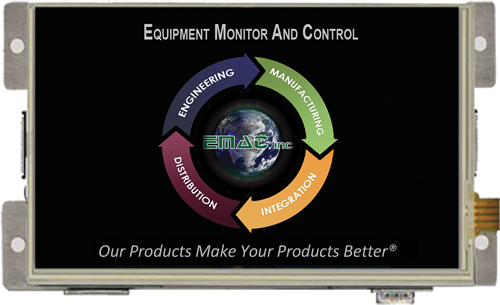

PPC-07-3354 |
7" TFT Color WVGA LCD, 800 x 480, 4-Wire Analog Resistive | TI ARM Cortex A8 based Processor AM3354 1.0GHz | 512 MB of DDR3 SDRAM, 4GB eMMC Flash Onboard | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | SDIO SDHC/ MMC Flash Disk | Open Frame PPC7.55" ×4.15" ×1.5" | 1x 10/100 BaseT Ethernet, WiFi 802.11 b/g/n, I2S Audio | |
PPC-07-5D36 |
7" TFT Color WVGA LCD, 800 x 480, 4-Wire Analog Resistive | Atmel ARM Cortex A5 ATSAMA5D36 | 512MB LP DDR2 | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | SDIO SDHC/ MMC Flash Disk | Open Frame PPC7.55" ×4.15" ×1.5" | 1x GbE LAN, WiFi 802.11 b/g/n, 16x GPIO lines, I2S Audio | |
PPC-07-IMX6S |
7" TFT Color WVGA LCD, 800 x 480, 4-Wire Analog Resistive, HDMI, CSI, DSI | NXP i.MX6 1.0GHz ARM Solo Processor | 512MB Onboard Memory | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | MicroSD, mSATA Socket | mini-PCIe Socket with SIM | Open Frame PPC7.55" ×4.15" | 1x GbE LAN, WiFi 802.11 b/g/n, bluetooth 4.1, 16x GPIO lines |
PPC-07-IMX6M |
7" TFT Color WVGA LCD, 800 x 480, 4-Wire Analog Resistive, HDMI, CSI, DSI | NXP i.MX6 1.0GHz ARM Dual or Quad Core Processor | Up to 2GB DDR3L RAM, 4GB eMMC Flash onboard | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | MicroSD, mSATA Socket | mini-PCIe Socket with SIM | Open Frame PPC7.55" ×4.15" | 1x GbE LAN, WiFi 802.11 b/g/n, bluetooth 4.1, 16x GPIO lines |
VOX-070T-EX2 |
7" WVGA TFT LCD, 800 x 480, resistive touch screen 400 nit or 1000 nit | DM&P SoC Vortex86EX2 Master CPU 600MHz (Optional Slave CPU 400MHz) | up to 2GB DDR3 onboard | 5x COM, 4x USB 2, CAN | 4GB onboard eMMC or SD card | 4x mini-PCIe sockets | 7.323" ×4.764" ×1.13" | 1x 10/100 BaseT Ethernet, Audio, 8x GPIO |
VOX-084 |
8.4" TFT Color WVGA LCD, 800 x 600, 4-Wire Analog Resistive | DM&P Vortex86DX2 or Vortex86DX3 800 MHz or 1GHz | Up to 2GB DDR3 onboard | 4x RS232/422/485, 3x USB2.0 | 1x SATA | PC/104 | Open Frame PPC9" ×5.9" ×1.1" | 1x 10/100 Ethernet, 2x GbE LAN, 16x GPIO, 1x LPT |

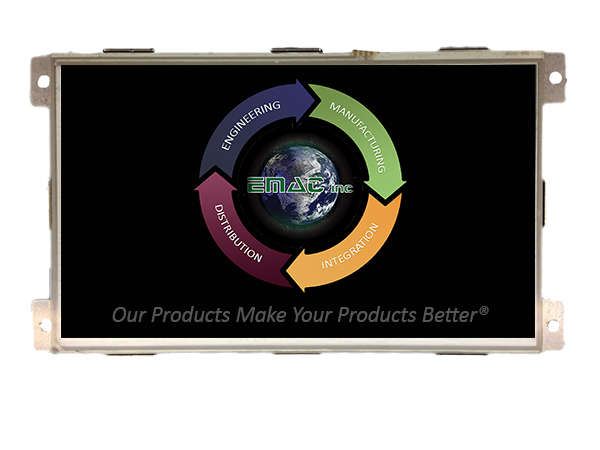

PPC-10-IMX6S |
10" TFT Color WSVGA LCD, 1024 x 600, 4-Wire Analog Resistive, HDMI, CSI, DSI | NXP i.MX6 1.0GHz ARM Solo Core Processor | 512MB DDR3L, 4GB eMMC Flash onboard | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | MicroSD, mSATA Socket | mini-PCIe Socket with SIM | 10.5" ×6" ×2" | 1x GbE LAN, WiFi 802.11 a/b/g/n, bluetooth, 16x GPIO lines |
PPC-10-IMX6M |
10" TFT Color WSVGA LCD, 1024 x 600, 4-Wire Analog Resistive, HDMI, CSI, DSI | NXP i.MX6 1.0GHz ARM Dual or Quad Core Processor | Up to 2GB DDR3L, 4GB eMMC Flash onboard | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | MicroSD, mSATA Socket | mini-PCIe Socket with SIM | Open Frame PPC10.5" ×6" ×2" | 1x GbE LAN, WiFi 802.11 a/b/g/n, bluetooth, 16x GPIO lines |
PPC-10-3354 |
10" TFT, Color WSVGA LCD, 1024 x 600, 4-Wire Analog Resistive | TI ARM Cortex A8 based Processor AM3354, 1.0GHz | 512 MB of DDR3 SDRAM, 4GB eMMC Flash | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | SDIO SDHC/ MMC Flash Disk | Open Frame PPC5.76" ×10.25" | 1x 10/100 BaseT Ethernet, WiFi 802.11 b/g/n, 1x SPI, 1x I2S, Audio Beeper, 1x 12S Audio Port with Line-In/Line-Out, 1x I2C | |
PPC-10-5D36 |
10" TFT, Color WSVGA LCD, 1024 x 600, 4-Wire Analog Resistive | Atmel ARM Cortex A5 ATSAMA5D36 | 512 MB of DDR2, 4GB eMMC Flash Onboard | 3x RS232 & 1x RS232/422/485 Port, 2x USB 2.0 Host, 1x USB 2.0 OTG | SDIO SDHC/ MMC Flash Disk | Open-Frame5.76" ×10.25" ×1.5" | 1x GbE LAN, WiFi 802.11 b/g/n, 1x SPI, 1x I2S, Audio Beeper, 1x 12S Audio Port with Line-In/Line-Out, 1x I2C | |
VOX-104 |
10.4" TFT Color WVGA LCD, 800 x 600, 4-Wire Analog Resistive | DM&P Vortex86DX2 or Vortex86DX3 800 MHz or 1GHz | Up to 2GB DDR3 onboard | 4x RS232/422/485, 3x USB2.0 | 1x SATA | PC/104 | Open Frame PPC11.92" ×8.03" ×2.45" | 1x 10/100 Ethernet, 2x GbE LAN, 16x GPIO, 1x LPT |
VOX-150 |
15.0" TFT Color WVGA LCD, 1024 x 768, 4-Wire Analog Resistive | DM&P Vortex86DX2 or Vortex86DX3 800 MHz or 1GHz | Up to 2GB DDR3 onboard | 4x RS232/422/485, 3x USB2.0 | 1x SATA | PC/104 | Open Frame PPC14.49" ×10.95" ×2.45" | 1x 10/100 Ethernet, 2x GbE LAN, 16x GPIO, 1x LPT |

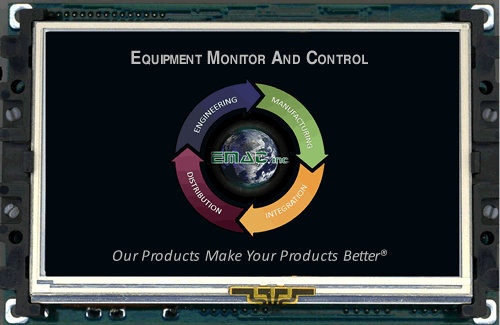

PPC-E4+ |
4.3 " TFT Color WQVGA LCD, 480 x 272, 4-Wire Analog Resistive | Embedded Atmel AT91SAM9G45 400 MHz | Up to 256 MB DDR2 RAM | 3x RS-232, 1x RS-232/422/485, 1x USB Host, 1x USB OTG | SDIO, SDHC/ MMC, Flash Disk | none | Open Frame PPC4.8" ×3" ×1.2" | 10/100 Ethernet, Audio, 16x GPIO |
