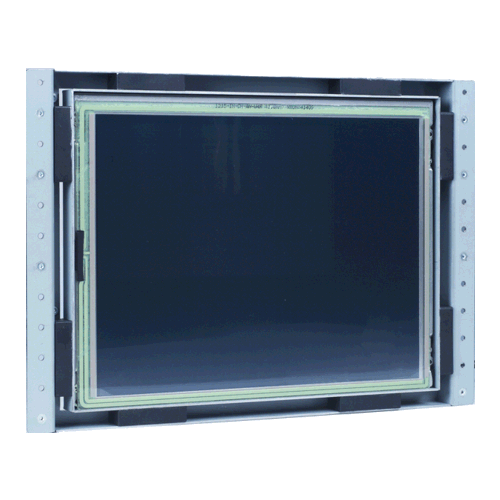

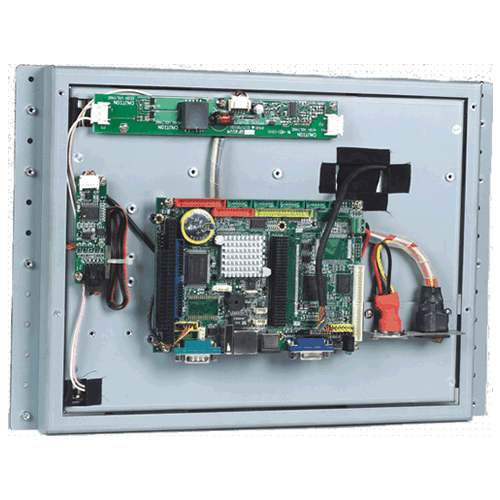

VOX-121 TFT LCD 12.1" Touch Panel


  • 12.1" TFT LCD Open Frame Touch Panel
  • Fanless Vortex86MX+ processor running at 800MHz
  • 6x Serial ports with handshake
  • 3x USB 2.0 Host Ports
  • Up to 1 GB On-board SDRAM
  • WinCE, XP Embedded, or Linux available

Receive consultation or quotes about this product from our sales staff.

Request a quote

Setting up a Panel PC can be a Puzzling experience. However,when purchased with an Operating System and Compact Flash, the VOX-121 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-121 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers.

Features


  • 12.1" TFT LCD Open Frame Touch Panel
  • Fanless Vortex86MX+ 486 DX class processor running at 800MHz
  • Inexpensive Open-Frame Design
  • 10/100BaseT Ethernet
  • 6 Serial ports with handshake
  • 3 USB 2.0 Host ports
  • Up to 1 GB of On-Board DDR2 SDRAM
  • Compact Flash Socket
  • Audio with Mic-In/Line-In/Line-Out
  • Graphic LCD Interface
  • SVGA (800 x 600) LCD Resolution
  • Touch Screen Interface with 4-Wire Resistive Touch Screen
  • 47 Watt Power Supply Included
  • EMAC OE embedded operating system with Desktop. (web browser in Kiosk Mode available.)
  • XP Embedded Build Image available
  • WinCE 6.0 BSP and SDK available
  • Can be utilized with other SBCs.

Overview


Setting up a Panel PC can be a Puzzling experience. However,when purchased with an Operating System and Compact Flash, the VOX-121 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-121 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

Manuals
vox-121.pdf
VMXP-6427_UM.pdf
Data Sheets
OpenFrame_LCDSET_DS.pdf
6427_datasheet.pdf

Specifications


Processor
CPU
Fanless Vortex86DX 486 DX
Clock Speed
800 MHz
Memory
RAM
512 MB
RAM Type
Up to 1 GB DDR2 RAM On-Board
Primary Flash
1x Compact Flash Type I/II Slot
Secondary Flash
EmbedDisk
BIOS/ Bootloader
AMI BIOS
Memory Misc.
  • Flash Disk: Compact Flash Socket Type I/II
  • IDE: One Ultra DMA 100/66/33, which supports 2 IDE Drives
Primary IO
GPIO
16x GPIO
Audio
on-board CM119 USB Audio Controller with Mic-In/Line-In/Line-Out
Video Out
VGA, TFT or LVDS ouput with 16MB or 32MB of Video Memory
Ethernet
10/100 Base-T Ethernet with on-Board RJ-45 connector
USB
3x USB 2.0 Ports
Serial Ports
5x RS-232 with handshaking, 1x RS-232/422/485
Primary I/O Misc.
  • Parallel: Standard Parallel Printer Port

Touchscreen

  • Type: 4 Wire Analog Resistive
  • Resolution: Continuous
  • Controller: External USB
  • Driver: WinCE, XP, Linux
  • Durability: Over one million touches
Secondary IO
LPT Port
Yes
PS/2
Yes
Touch
12.1
Display
Display Type
12.1" TFT Color LCD
Resolution
800 × 600 mm
Pixel Pitch
0.3 × 0.3 mm
LCD Colors
256K
Luminance
400 cd/m2
LCD Misc.

Backlight: CCFL

Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09
Operating Systems Compatibility
  • RTAI Real-Time Linux
  • Microsoft Windows XP / WES09
  • Microsoft Windows CE /CE.net

Mechanical and Environmental


Dimensions
Size
11.92" ×8.03" ×2.45" (302mm × 203mm × 62mm)
Power Requirements
Power Misc.
  • Power Supply Voltage: +5 & +12 Vdc.
  • Power Consumption: ~10 Watts
Environmental
Low Operating Temperature-10 C (14 F)
High Operating Temperature60 C (140 F)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
VOX-121-0200 12" OPEN FRAME PPC W/TOUCHSCREEN 512MB RAM & PS $828.75
VOX-121-0300 12" OPEN FRAME PPC W/TOUCHSCREEN 1GB RAM & PS $853.75

Peripheral Options


Product # Description Price
Operating Systems
EMAC OE Linux 4.0 PPC x86 EMAC OE Linux 4.0 PPC x86 Free
SC600-000-0010D Windows CE 6.0 Pro License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $25.00
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $125.00
