PPC-E10


  • TI ARM Cortex A8 600 Mhz Fanless Low Power Processor
  • Inexpensive Open-Frame Design
  • Up to 512MB of DDR2 SDRAM
  • Up to 1GB of NAND Flash
  • WSVGA (1024x600) Resolution with LED Backlight

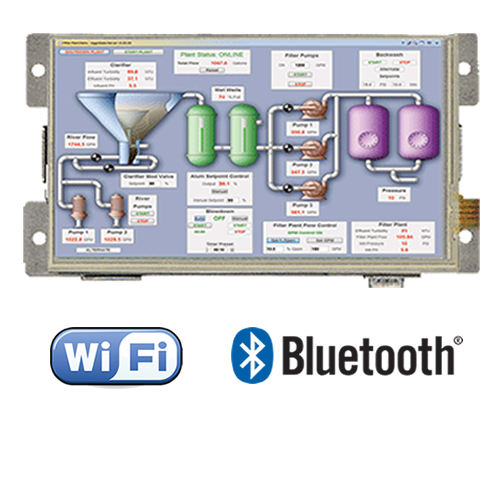

  • Optional: Wifi and Bluetooth

Receive consultation or quotes about this product from our sales staff.

Request a quote

Setting up a Panel PC can be a Puzzling experience. However, the PPC-E10 Compact Panel PC comes ready to run with the Operating System installed on flash disk. Apply power and watch either the Linux X Windows or the User Interface appear on the vivid color LCD. Interact with the PPC-E10 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

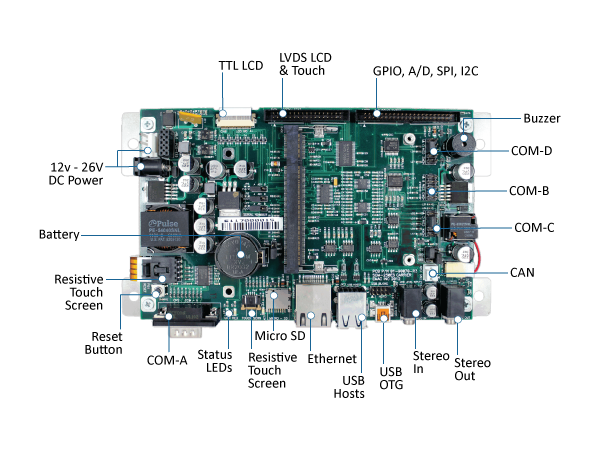

Features


  • TI ARM Cortex A8 600 Mhz Fanless Low Power Processor
  • Inexpensive Open-Frame Design
  • 10/100BaseT Ethernet with on-board PHY
  • 3 RS232 & 1 RS232/422/485 Port
  • 1 USB 2.0 (High Speed) Host port
  • 1 USB 2.0 (High Speed) OTG port
  • Up to 512MB of DDR2 SDRAM
  • Up to 1GB of NAND Flash
  • Up to 4GB eMMC
  • Can 2.0B Controller
  • Battery backed Real Time Clock
  • 1 I2S Audio port with Line-In/Line-Out
  • Timer/Counters and Pulse Width Modulation (PWM) ports
  • 4 Channel 10-bit Analog-to-Digital converter
  • Operating Voltage of 12 to 28 Vdc.
  • Graphic LCD Interface with optional 2D acceleration & Hardware CODECs
  • WSVGA (1024x600) Resolution with LED Backlight
  • Analog Resistive Touchscreen and Software Controlled Backlight On/Off & Brightness
  • JTAG for debug, including real-time trace
  • FREE Eclipse IDE with GCC & GDB development tools
  • Android Available

Overview


Setting up a Panel PC can be a Puzzling experience. However, the PPC-E10 Compact Panel PC comes ready to run with the Operating System installed on flash disk. Apply power and watch either the Linux X Windows or the User Interface appear on the vivid color LCD. Interact with the PPC-E10 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

Manuals
PPC-E10_User_Manual.pdf
Data Sheets

Specifications


Processor
CPU
Embedded TI ARM Cortex-A8
Clock Speed
600 MHz
Memory
RAM
256 MB
RAM Type
DDR2 SDRAM
Primary Flash
2 GB eMMC Flash
Secondary Flash
SDIO SDHC/MMC interface up to 32+ GB Flash Disk
Memory Misc.
  • Flash: 2GB of eMMC Flash, and 512MB NAND Flash.
  • RAM: 256MB DDR2 SDRAM
  • System Reset: Supervisor with external Reset Button provision.
Primary IO
Disk Interface
16 General Purpose I/O (16 dedicated to the SoMs GPIO section, additional GPIOs can be made available)
Audio
I2S Synchronous Serial Controller with Line In/Out
Video Out
2D Accelerated Video & Decoder
USB
1x USB 2.0 Host, 1x USB 2.0 OTG Host/Device
Serial Ports
3x RS-232 with handshaking, 1x RS-232/422/485 with Auto RS485, high-speed SPI with chip selects, 1 I2C
Primary I/O Misc.
  • Ethernet MAC: Built-In
  • Ethernet PHY:Micrel KSZ8041
  • Ethernet Type: 10/100 Base-T Ethernet
  • Ethernet Interface: On-Board RJ-45 connector

Touchscreen

  • Type: 4 Wire Analog Resistive
  • Resolution: Continuous
  • Controller: Built-In
  • Driver: WinCE, Linux
  • Durability: Over one million touches
Secondary IO
CAN
CAN 2.0B Controller
Timers/ Counters/ PWM
11 General Purpose Timers
Touch
12-bit TSC2004
Display
Display Type
10" TFT WSVGA Color LCD
Resolution
1024 × 600 px
LCD Colors
256K
Viewing Angle
55°
Luminance
330 (cd/m²)
LCD Misc.
  • Resolution type: WSVGA
  • Dot pitch: 0.19mm x 0.19mm
  • Brightness: Software controlled
  • Backlight: White LED (33 LEDS)
Analog
A/D Channels
1
A/D Resolution
12-bit
Analog Misc.

Analog I/O:ADC from external 4-wire touchscreen controller TSC2004

Misc
Operating Systems Compatibility
  • Bootloader: Resident Flash Bootloader (U-Boot)
  • Operating System: Linux
  • Programming Languages: GNU GCC C compiler GDB Debugger
  • Networking: Full resident TCP/IP protocol stack
  • Integrated Development Environment: Eclipse 3.3 or higher
  • Drivers: Serial RS232/422/485, Ethernet, USB, Hardware SPI, Audio, Video, Touchscreen, Multi-Media Card/Secure Digital (MMC/SD), A/D, PWM, and GPIO.
  • Applications: Bash shell , Telnet Server, FTP Server, Web Server, and Test Programs

Mechanical and Environmental


Dimensions
Size
5.76" ×10.25" (146mm × 260mm)
Dimensions Misc.

PPC-E10 Compact Panel PC comes with TI ARM Cortex A8 600 Mhz Fanless Low Power Processor. This Open-Frame PPC has Up to 512MB of DDR2 SDRAM and 3 RS232 & 1 RS232/422/485 Port

Power Requirements
Typical Voltage
12 V
Typical Current
500 mA
Power Misc.

Power Supply Voltage: +12 to +28 Vdc.

Typical current draw at 24V: 250 mA

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-E10-0100 Compact PPC 600MHz ARM A8, Touchscreen, 2GB eMMC Flash, 256MB RAM $595.00

Peripheral Options


Product # Description Price
Peripherals
PER-PWR-00035 12 v @ 2.1A Wall PS (110 V @ 60 HZ US) $25.00
PER-PWR-00075 12V 2.1A power supply, 90-264V input, 47-63Hz, universal power prongs for worldwide use, 2.1mm Barrel Jack $45.00
PER-PWR-00090 12V 2.5A Desktop Power Supply, standard IEC 320-C14 input connector, 2.1mm barrel jack output, requires 3 prong AC power cord (US power cord CAB-80-001) $44.00
CAB-40-004 DUAL USB Bracket w/ 6" cable $10.00
CAB-35-003 6' DB9 to DB9 Null Modem extension cable $10.00
Operating Systems
SL040-AON-00010 EMAC OE Linux 4.x for ARM Free
