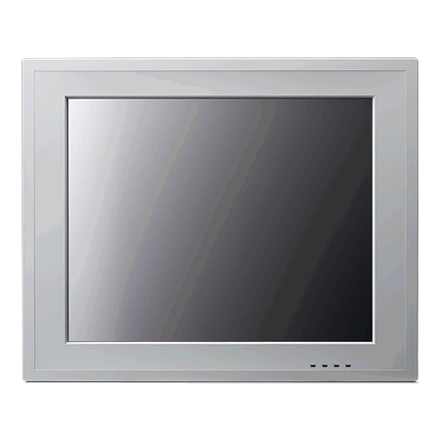

PPC-6170 TFT LCD 17" Touch


  • 17" TFT LCD (LED Backlight)
  • Intel® Core™ i3, i5, or Celeron CPU
  • Up to 8 GB DDR3L memory
  • Multiple expansion slots
  • Up to Two Serial ports
  • 3x USB 3.0, 2x USB 2.0 ports
  • Dual Gigabit Ethernet ports

Receive consultation or quotes about this product from our sales staff.

Request a quote
The PPC-6170 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 17" color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6170 highly reliable, and provide a great solution for a wide range of applications.

Features


  • 17" TFT LCD (LED Backlight) 5-wire Resistive Touch
  • Intel® Core™ i3, i5, Celeron 847E and 1020E + Intel QM77 PCH
  • 1x DDR3/DDR3L SODIMM support to 8 GB
  • Up to 5X Serial ports
  • Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two PCI (optional) and two PCIe x1 (optional)
  • 1x 2.5" SATA bay
  • Optional second HDD, supports Intel RAID (optional)
  • Slim type 8X or above DVD +/- RW (optional)
  • 1x Full-size mini PCIe (Supports mSATA)
  • 1x half-size mini PCIe
  • 3x USB 3.0, 2x USB 2.0 ports
  • 1x isolated RS-232/422/485 port; (selectable in by BIOS)
  • 1x GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
  • 1x Parallel LPT port (with optional cable)
  • Dual GbE, supports Intel AMT8.0
  • Supports iManager, SUSIAccess and Embedded Software APIs
  • LCD Display Type: 17" TFT LCD (LED Backlight)
  • Max. Resolution: 1280 x 1024
  • Colors: 262K
  • Dot Size: (mm) 0.264 x 0.264
  • Viewing Angle: 85 (left), 85 (right), 80 (up), 80 (down)
  • Luminance: 350 cd/m2
  • Contrast Ratio: 1,000
  • Backlight Lifetime: 50, 000 hrs (typical)
  • Touch Screen Type: Analog Resistive 5-wire
  • Resolution: 2048 x 2048
  • Light Transmission: 81+/-3%
  • Controller RS-232 interface (COM5), USB interface is available as an option
  • Software Driver Support: Windows 7, XP
  • Durability Touches: 36 million
  • Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
  • Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
  • Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
  • Input Voltage: 100 - 240VAC, 50/60Hz, 4-2A
  • Dimensions: 442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47")

Overview


The PPC-6170 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 17" color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6170 highly reliable, and provide a great solution for a wide range of applications.

Manuals
PPC_backlight_adjustment.pdf
PPC-6150A_6170A_User_Manual.pdf
Data Sheets
PPC-6170_DS.pdf
PPC-6170.pdf
PPC-6150.pdf
DS-PPC-6150A_PPC-6170A.pdf

Specifications


Processor
CPU
Up to Core i5-36110ME
Clock Speed
2.7 GHz
Processor Misc.

Optional: Celeron 1020E, Core i3-3120ME or Core i5-3610ME

Memory
RAM
8 GB
RAM Type
1 x 204-pin SODIMM DDR3 (1600 MHz) / DDRL (1333 MHz)
Primary Flash
1x 2.5 inch SATA HDD/SSD
Secondary Flash
1x mSATA & 1x 2.5 Inch SATA SSD/HDD (Optional)
BIOS/ Bootloader
AMI BIOS
Memory Misc.

supports up to 8GB DDR3 memory

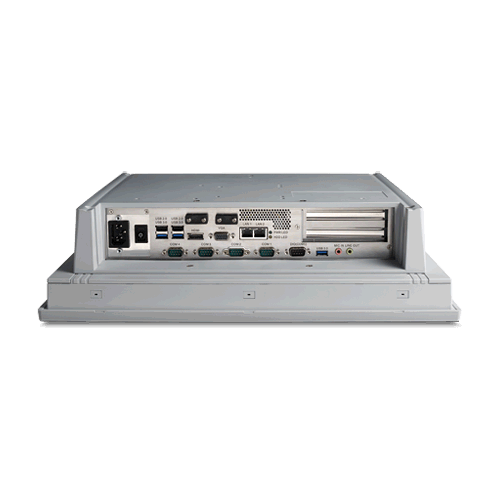

Primary IO
GPIO
1x GPIO/RS-232 (8channels, TTL level); by pin header
Disk Interface
2.5 Inch SATA bay
Audio
1x Line-out
Video Out
1x HDMI, 1x D-SUB VGA port
Ethernet
2x Gigabit Ethernet
USB
4x USB 3.0 Ports, 2 x USB 2.0 Ports
Serial Ports
4x COM ports, 1x isolated RS-232/422/485, 3x RS-232
Secondary IO
LPT Port
Yes
Touch
17
Secondary I/O Misc.

Expansion Slot Options:

    • -one PCI +one PCle x1 (standard)
    • -one x PCle x 4 (in the accessory box)
    • -two Pcle x 1 (optional)
    • -two PCI (optional)

Parallel "LPT" Port Cable is Optional

Display
Display Type
17" TFT LCD (LED Backlight)
Resolution
1280 × 1024 mm
LCD Colors
262K
Viewing Angle
85 (left) 85 (right) 80 (up) 80 (down)
Luminance
350 cd/m2
LCD Misc.
  • Max. Resolution: 1280 x 1024
  • Dot Size: (mm) 0.264 x 0.264
  • Contrast Ratio: 1,000
  • Backlight Lifetime: 50, 000 Hours (typical)
  • Touch Screen Type: 5-wire Analog Resistive
  • Resolution: 2048 x 2048
  • Light Transmission: 81+/-3%
  • Controller: RS-232 interface (COM5), USB interface is available as an option
  • Software Driver Support: Windows 7, XP
  • Durability Touches: 36 million Activations
Expansion
Bus Misc.

Additional Expansion

  • 1x Full-size mini PCIe (Supports mSATA)
  • 1 x half-size mini PCIe
Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), WES 7 - Windows Embedded Standard 7
Operating Systems Compatibility

WIN XP Pro

Mechanical and Environmental


Dimensions
Size
442" ×362" ×113.5" (11226mm × 9194mm × 2882mm)
Weight
7.5 kg
Power Requirements
Power Misc.

Input Voltage 100 - 240VAC, 50/60Hz, 4-2A

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Upper Operating Humidity
95%
Environmental Misc.
  • Operating Temperature 0 ~ 50°C (32 ~ 122°F)
  • Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
  • Relative Humidity 10 ~ 95% @ 40°C (non-condensing)
  • Shock Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
  • Vibration Operating Random Vibration Test 5~500Hz, 1Grms, follows IEC 60068-2-64

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-6170-RC10AE COMPUTER SYSTEM Intel core Celeron 1020E, 17" LED & T/S w/o Memory $1465.00
PPC-6170-RI3AE COMPUTER SYSTEM Intel Core i3 with 17" LED and T/S, w/o Memory $1680.00
PPC-6170-RI5AE COMPUTER SYSTEM Intel Core i5 with 17" LED and T/S, w/o Memory $1885.00
PPC-6170A-RI5AE COMPUTER SYSTEM Intel core i5,B/P 4 LANs 17" LED & T/S, w/o Memory $2215.00

Peripheral Options


Product # Description Price
Peripherals
PPC-6150-WLANE WiFi Module with Intel 6205 supports 802.11 abgn, 2T2R (for PPC-6170 only) $56.00
PPC-6170-RC8AE WiFi Module with Intel 6205 supports 802.11 abgn, 2T2R $75.00
PER-6150-DVDE CHASSIS Module with 8X SATA DVD-RW for PPC-6150/PPC-6170 $65.00
PER-6150-HDDE CIRCUIT MODULE With the second 2.5" SATA HDD for PPC-6150/6170 $25.00
PER-6150-PCIE CIRCUIT BOARD Support two PCI slots for PPC-6150/6170 $25.00
PER-6150-PCIEE CIRCUIT BOARD Two PCIe Slots for PPC-6170/6150 $25.00
