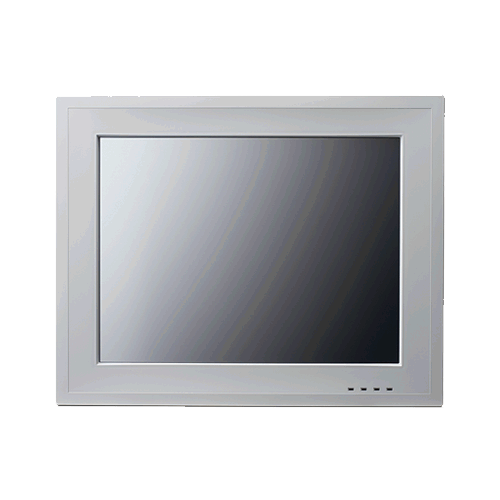

PPC-6150 TFT LCD 15" Touch


  • 15" TFT LCD (LED Backlight) 5-wire Resistive Touch
  • Intel Core i5-3610ME 2.7GHz, Core i3-3120ME 2.4GHz Celeron 1020E 2.2GHz
  • Up to 8 G DDR3 SODIMM
  • 4x Serial ports
  • 3x USB 3.0 Ports, 2x USB 2.0 Ports
  • 2x Gigabit Ethernet

Receive consultation or quotes about this product from our sales staff.

Request a quote
The PPC-6150 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 15" color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6150 highly reliable, and provide a great solution for a wide range of applications

Features


  • 15" TFT LCD (LED Backlight) 5-wire Resistive Touch
  • IP65 Compliant Front Panel
  • Intel Core i5-3610ME 2.7GHz / Core i3-3120ME 2.4GHz Celeron 1020E 2.2GHz
  • Up to 8 G DDR3 (1600 MHz) / DDRL (1333 MHz)

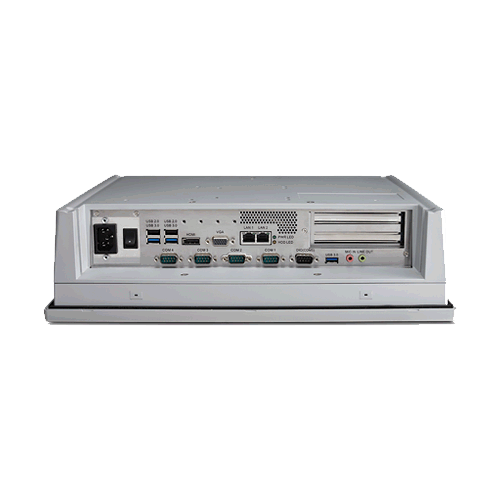

  • 1x RS-232/422/485, 3x RS-232
  • 3x USB 3.0 Ports / 2x USB 2.0 Ports
  • 4x Gigabit Gigabit Ethernet
  • Storage 1: 2.5 Inch SATA HDD
  • Storage 2: 2.5 Inch SATA HDD (support Intel RAID function) (optional) Support slim 8X or above DVD +/- RW (optional)
  • 1x PCI + 1x PCIe (default)
  • 2x PCIe x1 (optional)
  • 2x PCI (optional)
  • Additional Expansion Slot
  • 1x Mini PCIe long card slot (support mSATA)
  • 1x Mini PCIe half long card slot
  • 1x GPIO
  • LCD Display Type: 15" TFT LCD (LED Backlight)
  • Max. Resolution: 1024 x 768
  • Colors: 262K
  • Dot Size: (mm) 0.297 x 0.297
  • Viewing Angle: 80 (left), 80 (right), 70 (up), 70 (down)
  • Luminance(cd/m2): 350
  • Contrast Ratio: 700
  • Backlight Lifetime: 50,000 hrs (typical)
  • Input Voltage: 100 - 240VAC, 50/60Hz, 4-2A
  • Power Consumption: With Core i5-3610ME is 61W
  • Power Consumption: With Core i3-3120ME is 50W
  • Power Consumption: With Celeron 847E is 48W
  • (Burn-in test 7.0 in Windows 7 32-bit)
  • Operation Temperature: 0 ~ 50° C (32 ~ 122° F)
  • Storage Temperature: -20 ~ 60° C (-4 ~ 140° F)
  • Relative Temperature: 10 ~ 95% @ 40° C (non-condensing)
  • Shock: 10 G peak acceleration (11 msec duration)
  • Vibration: 5 ~ 500 Hz 1 G RMS
  • Weight: 6.5 Kg (14.32lb)
  • Dimensions 395.5 x 316.8 x 105.5 (mm) (15.6" x 12.5" x 4.15")

Overview


The PPC-6150 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 15" color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6150 highly reliable, and provide a great solution for a wide range of applications

Manuals
PPC_backlight_adjustment.pdf
PPC-6150A_6170A_User_Manual.pdf
Data Sheets
PPC-6170_DS.pdf
PPC-6170.pdf
PPC-6150.pdf
DS-PPC-6150A_PPC-6170A.pdf

Specifications


Processor
CPU
Intel Core i5-3610ME 2.7GHz / Core i3-3120ME 2.4GHz Celeron 1020E 2.2GHz
Clock Speed
2.7 GHz
Memory
RAM
8 GB
RAM Type
Up to 8 G DDR3 (1600 MHz) / DDRL (1333 MHz)
Primary Flash
1x 2.5 inch SATA HDD/SSD or DOM
Secondary Flash
mSATA
Memory Misc.

Kit to install the second 2.5" SATA HDD for PPC-6150/ PPC-6170, w/o HDD

Primary IO
GPIO
1x GPIO
Disk Interface
1x 2.5 Inch SATA HDD / 1x 2.5 Inch SATA HDD (support Intel RAID function) (optional) Support slim 8X or above DVD +/- RW (optional)
Audio
Line out & Mic in
Video Out
15 Inch TFT LCD 5-wire Resistive Touch
Ethernet
4x Gigabit Gigabit Ethernet
USB
3x USB 3.0 Ports / 2x USB 2.0 Ports
Serial Ports
1x RS-232/422/485, 3x RS-232
Secondary IO
Touch
15 Inch TFT LCD (LED Backlight) 5-wire Resistive Touch
Display
Display Type
15" TFT LCD (LED Backlight)
Resolution
2048 × 2048 px
LCD Colors
262K
Viewing Angle
80 (left), 80 (right), 70 (up), 70 (down)
Luminance
350 cd/m2
LCD Misc.
  • Max. Resolution: 1024 x 768
  • Dot Size: (mm) 0.297 x 0.297
  • Contrast Ratio: 700
  • Backlight Lifetime: 50,000 hrs (typical)
Expansion
Bus Misc.
  • 1x PCI + 1x PCIe (default)
  • 2x PCIe x1 (optional)
  • 2x PCI (optional)

Additional Expansion Slot

  • 1x Mini PCIe long card slot (support mSATA)
  • 1x Mini PCIe half long card slot
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, Android

Mechanical and Environmental


Dimensions
Size
15.6" ×12.5" ×4.15" (396mm × 317mm × 105mm)
Weight
14.32 lb
Dimensions Misc.

Dimensions: 395.5 x 316.8 x 105.5 (mm) (15.6" x 12.5" x 4.15")

Power Requirements
Power Misc.

Input Voltage

  • 100 - 240VAC, 50/60Hz, 4-2A

Power Consumption

  • With Core i5-3610ME is 61W
  • With Core i3-3120ME is 50W
  • With Celeron 847E is 48W
  • (Burn-in test 7.0 in Windows 7 32-bit)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Upper Operating Humidity
95%
Environmental Misc.
  • Operation Temperature 0 ~ 50° C (32 ~ 122° F)
  • Storage Temperature -20 ~ 60° C (-4 ~ 140° F)
  • Relative Temperature 10 ~ 95% @ 40° C (non-condensing)
  • Shock 10 G peak acceleration (11 msec duration)
  • Vibration 5 ~ 500 Hz 1 G RMS

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-6150-PI3AE COMPUTER SYSTEM Intel core i3,15" XGA LED & P-Cap T/S, w/o Memory $1975.00
PPC-6150-RC10AE COMPUTER SYSTEM Intel core Celeron 1020E,15" LED & T/S w/o Memory $1405.00
PPC-6150-RI3AE COMPUTER SYSTEM Intel core i3 with 15" XGA LED & T/S w/o Memory $1610.00
PPC-6150-RI5AE COMPUTER SYSTEM Intel core i5 with 15" XGA LED & T/S w/o Memory $1826.00
PPC-6150A-RI5AE COMPUTER SYSTEM Intel Core i5, B/P 4 LANs, 15" LED & T/S, w/o Memory $2060.00

Peripheral Options


Product # Description Price
Peripherals
PER-6150-HDDE CIRCUIT MODULE With the second 2.5" SATA HDD for PPC-6150/6170 $25.00
PER-6150-PCIE CIRCUIT BOARD Support two PCI slots for PPC-6150/6170 $25.00
PER-6150-PCIEE CIRCUIT BOARD Two PCIe Slots for PPC-6170/6150 $25.00
PER-6150-DVDE CHASSIS Module with 8X SATA DVD-RW for PPC-6150/PPC-6170 $65.00
