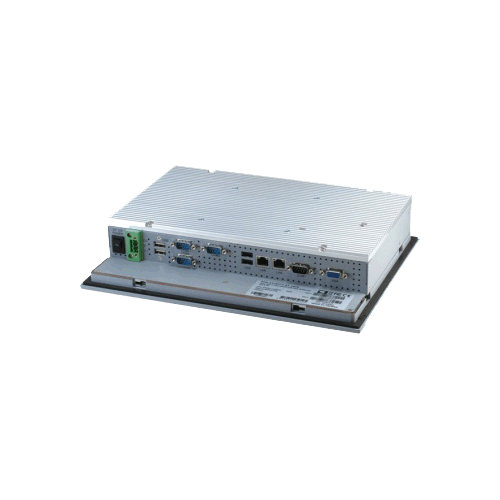

PPC-1123


  • 12.1” XGA HMI Touch Panel PC
  • Onboard Intel® Atom™ D2550 1.86 GHz
  • Up to 4 GB DDR3 800/1066 RAM Inside
  • 3x S-232 x 3, 1x RS-232/422/485
  • 2.5 Inch SATA Hard Disk Drive / CFast™ Slot (Internal)
  • 4x USB 2.0 Ports
  • 2x 10/100/1000Base-TX with RJ-45

Receive consultation or quotes about this product from our sales staff.

Request a quote
The PPC-1123 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 12.1" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast™ socket, the PPC-1123 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be Panel/ VESA 100 mounted.

Features


  • 12.1” XGA HMI Touch Panel PC
  • Onboard Intel® Atom™ D2550 1.86 GHz
  • Up to 4 GB DDR3 800/1066 RAM Inside
  • 3x S-232 x 3, 1x RS-232/422/485
  • 2.5 Inch SATA Hard Disk Drive / CFast™ Slot (Internal)
  • 4x USB 2.0 Ports
  • 2x 10/100/1000Base-TX with RJ-45
  • 1x Mini-Card
  • LCD Display Type: 12.1" TFT-LCD
  • Max. Resolution: 1024 x 768
  • Max. Colors: 16.2M colors
  • Luminance: 500 cd/m2
  • Viewing Angle: 160°(H), 160°(V)
  • Back Light: LED
  • Back Light MTBF Hours: 50,000
  • Touchscreen Type: 5-wire Analog Resistive
  • Light Transmission: >80%
  • Life Time: 10 Million Times/Activations
  • 1x VGA
  • 1x Power button
  • Power Requirements: 12V DC input, w/3-pin terminal block
  • Operating Temperature: 32°F ~ 131°F (0°C ~ 55°C ) w/ Airflow & 32°F ~ 122°F (0°C ~ 50°C ) w/o Airflow
  • Storage Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Humidity: 10%~95% @40°C; non-condensing
  • Gross Weight: 10.1 lb (4.6 kg)
  • Dimensions: 12.5"(W) x 9.6"(H) x 2.5"(D) (317mm x 243mm x 63.5mm)

Overview


The PPC-1123 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 12.1" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast™ socket, the PPC-1123 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be Panel/ VESA 100 mounted.

For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application's processing requirements.

Manuals
AHP-1123 Manual 2nd Ed.pdf
Data Sheets
AHP-1123.pdf

Specifications


Processor
CPU
Intel® Atom™ D2550 Onboard
Clock Speed
1.86 GHz
Memory
RAM
2 GB
RAM Type
Up to 4 GB DDR3 800/1066 RAM Inside
BIOS/ Bootloader
AMI
Primary IO
Disk Interface
2.5 Inch SATA Hard Disk Drive / CFast™ Slot (Internal)
Video Out
12.1” XGA HMI XGA TFT LCD Touch Panel PC
Ethernet
2x 10/100/1000Base-TX with RJ-45
USB
4x USB 2.0 Ports
Serial Ports
3x S-232 x 3, 1x RS-232/422/485
Secondary IO
Touch
5-wire Analog Resistive Touch Screen
Display
Display Type
12.1" TFT-LCD
LCD Colors
16.2M colors
Viewing Angle
160°(H), 160°(V)
Luminance
500 cd/m2
LCD Misc.
  • Max. Resolution: 1024 x 768
  • Back Light: LED
  • Back Light MTBF Hours: 50,000
  • Touchscreen Type: 5-wire Analog Resistive
  • Light Transmission: >80%
  • Life Time: 10 Million Times Activations

Mechanical and Environmental


Dimensions
Weight
10.1 lb
Dimensions Misc.

Dimensions: 12.5"(W) x 9.6"(H) x 2.5"(D) (317mm x 243mm x 63.5mm)

Power Requirements
Voltage
12 V
Power Misc.

Power Requirements: 12V DC input, w/3-pin terminal block

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature55 C (131 F)
Upper Operating Humidity
95%
Environmental Misc.
  • Operating Temperature: 32°F ~ 131°F (0°C ~ 55°C ) w/ Airflow & 32°F ~ 122°F (0°C ~ 50°C ) w/o Airflow
  • Storage Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Humidity: 10%~95% @40°C; non-condensing

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-1123HTT-A1-1010 12.1" HMI w/Atom D2550, 2GB RAM, Fanless, DC 12V R-TS $978.31
