VersaTainer


  • Versatile Design: Protects PC/104 or EBX systems
  • Shock Isolation: Dual mount system provides protection from shock and vibration
  • Rugged Protection: Thick aluminum walls
  • Custom Solution: Custom endcaps provide a perfect fit to your application

Receive consultation or quotes about this product from our sales staff.

Request a quote

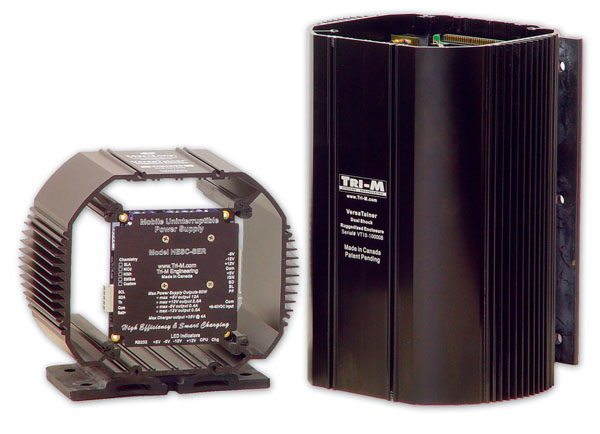

VersaTainer PC104 Enclosure

The VersaTainer (VT104) is a rugged EBX and PC/104 enclosure system constructed of .125" aluminum and designed for hostile and mobile environments. It features a dual system of shock and vibration isolation which comprises of internal rubber corner rails absorb high-frequency vibrations, while the entire enclosure is mounted on the host platform with a thick rubber pad which absorbs low-frequency G-forces. The rubber pad may be removed for optional mounting solutions such as hard mounting, flange endcap, or fluidic mount assembly.

Features


  • Versatile Design: Protects PC/104 or EBX systems
  • Anti-Shock: Dual rubber isolation system protects your system from shock and vibration
  • Rugged Enclosure: 0.125” thick aluminum protects your system from damage, dust, and extreme environments
  • Versatile Mounting: Optional plates allow mounting of PC/104 and EBX systems as well as accessories and cables.
  • Custom Sizes: Available in standard lengths of 4” to 12”, or custom cut up to 48”
  • Custom Solution: Custom endcaps provide a perfect fit to your application

Overview


VersaTainer PC104 Enclosure

The VersaTainer (VT104) is a rugged EBX and PC/104 enclosure system constructed of .125" aluminum and designed for hostile and mobile environments. It features a dual system of shock and vibration isolation which comprises of internal rubber corner rails absorb high-frequency vibrations, while the entire enclosure is mounted on the host platform with a thick rubber pad which absorbs low-frequency G-forces. The rubber pad may be removed for optional mounting solutions such as hard mounting, flange endcap, or fluidic mount assembly.

The VersaTainer is capable of housing PC/104 and EBX payloads. For PC/104, the stack mounts axially along the entire length of the enclosure body. For EBX, An optional EBX mounting plate (VT-EBX) is available to mount the SBC to be horizontally with ample room for several PC/104 accessory cards to be installed. Accessory modules such as hard drives larger than 3.550" x 3.775" can be mounted to an optional septum plate that installs vertically into rails that run the length of the enclosure. For smaller items, an optional PC/104-size aluminum plate allows for direct mounting in the PC/104 stack.

The VersaTainer enclosure cross section measures 7.10" wide by 5.70" high (not including mounting pad) and is available in standard lengths from 4" to 12" and custom lengths up to 48". Each VersaTainer is available as a kit with  mounting accessories.  Blank and pre-designed endcaps are available from stock, or the customer may design their own cutouts using one of our VersaTainer endcap templates.  These rugged enclosures have been protecting PC104 systems all over the world in the harshest environments the mining, transportation, military, and aerospace industries have to offer. The VersaTainer and its standard accessories are RoHS compliant.

Advantages

  • The VT104 VersaTainer is a rugged aluminum enclosure that can be used as either a PC/104, PC/104+ or EBX enclosure.
  • The solid one-piece extruded body provides dual internal shock and vibration protection.
  • Generous internal space is provided for connector and cabling requirements.
  • For sizes VT8 and larger, an optional EBX mount can be added.
  • Includes two end caps, the VT-EC00 and the VT-EC02
  • Enclosure kits come with corner guides, rubber stops, glue, end cap screws
  • Protects / enhances the reliability of internal compounds


Specifications


Secondary IO

Mechanical and Environmental


Dimensions
Size
12" ×7.1" ×5.7" (304mm × 180mm × 144mm)

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PER-ENC-00017 MTG-BRK01-KIT, Quick mounting Bracket CanTainer/VersaTainer/FlexTainer enclosures Call
PER-ENC-00500 VT4-NC, VersaTainer Kit, Extrusion length 4", rubber shock mount pad, corner guide rails, parts kit, no endcaps Call
PER-ENC-00501 VT6-NC, VersaTainer Kit, Extrusion length 6", rubber shock mount pad, corner guide rails, parts kit, no endcaps Call
PER-ENC-00502 VT8-NC, VersaTainer Kit, Extrusion length 8", rubber shock mount pad, corner guide rails, parts kit, no endcaps Call
PER-ENC-00503 VT10-NC, VersaTainer Kit, Extrusion length 10, rubber shock mount pad, corner guide rails, parts kit, no endcaps Call
PER-ENC-00504 VT12-NC, VersaTainer Kit, Extrusion length 12", rubber shock mount pad, corner guide rails, parts kit, no endcaps Call
PER-ENC-00510 VT-EBX, optional EBX adaptor for VT8 and larger Call
PER-ENC-00511 VT-EC00, VT Endcap - solid Call
PER-ENC-00512 VT-EC02 ,Endcap - 4xDB9, 2xDB25 Call
PER-ENC-00513 VT-KIT-GSKT, Set of two VersaTainer rubber gaskets Call
PER-ENC-00514 VT-PARTS-KIT-4B, 4x 5/16 flange nut, 4x 5/16 flange bolt, 8 x rubber corner stops, 16 x endcap screws, 1 x superglue Call
PER-ENC-00515 VT-PARTS-KIT-6B, 6x 5/16 flange nut, 4x 5/16 flange bolt, 8 x rubber corner stops, 16 x endcap screws, 1 x superglue Call
