Designed and manufactured in the USA the SoM-9G45 is a System-on-Module (SOM) based on the Atmel ARM9 AT91SAM9G45 processor. This Fanless ARM9, 400 MHz SoM has an Ethernet PHY included along with 4 serial ports. It utilizes up to 256MB of external DDR2 / SDRAM, 1GB of NAND Flash and includes an MMU which allows it to run Linux Operating System. A SoM is a small embedded module that contains the core of a microprocessor system.
The SoM-250ES is a compact, low-power SoM Carrier/Socket board with a 7” WVGA (800 x 480) or the optional 10" WSVGA (1024 X 600) color LCD and resistive touch screen. This versatile SoM Carrier/Socket board is ideal for evaluation and early development work. This Carrier is designed to work with all EMAC 200-pin SODIMM type SoMs. Note: The SoM-250ES is specifically designed for SoMs with Video & USB capability.
UCOM-BT
22Upi71117 Featuring the SMARC (Smart Mobility Architecture) form factor, the small size of the μCOM-BT, which measures 82 x 50mm, is most ideal for applications that demands compactness and mobility. The board’s exhaustive functionalities, such as wireless connectivity, expandable I/Os, HD audio, and FHD displays, further facilitate such applications.
Features
- Intel® Atom™ E3800 and N2807 Product Family Processor SoC
- Onboard DDR3L up to 4 GB Memory
- Gigabit Ethernet x 1
- 18/24-bit Single Channel LVDS, HDMI
- High Definition Audio Interface
- SATA x 2
- USB2.0 x 2, GPIO up to 12-bit, USB3.0 x 1
- PCI-Express [x1] x 3
- SMARC Spec v1.1, 82mm x 50mm
System
- Form Factor SMARC, 82 x 50 mm
- Processor Intel® Atom™ E3800 Series or Celeron® N2807 Processor SoC
- System Memory Onboard DDR3L 2 GB (optional 4 GB)
- Chipset Intel® Atom™ SoC
- I/O Chipset Intel® Atom™ SoC
- Ethernet Intel® I211AT, I210IT
- BIOS AMI BIOS, Legacy free BIOS
- Wake On LAN Yes
- Watchdog Timer ITE IT8528VG
- H/W Status Monitoring Supports CPU temperature monitoring
- Expansion Interface PCIe x 3 I2C x 2, SMBus x 1 SPI x 1
- UART x 1 for TX/RX/RTS#/CTS#
- UART x 1 for TX/RX only
- Power Requirement Standard: DC 3.3 ~ 5V
- Board Size (L x W) 82 x 50mm (3.23 x 1.97”)
- Gross Weight 0.2 kg (0.44 lb)
- Operating Temperature Standard: 0 ~ 60°C (32 ~ 140°F)
- Storage SATA 3.0 GB/s x 2
- USB USB 3.0 x 1, USB 2.0 x 2
- Serial Port UART x 2 (one 4-wire TX/RX/RTS#/CTS#, one 2-wire TX/RX)
- Audio High Definition Audio x 1
- GPI/O 12 bit, 1.8V (1 share with HDA)
Overview

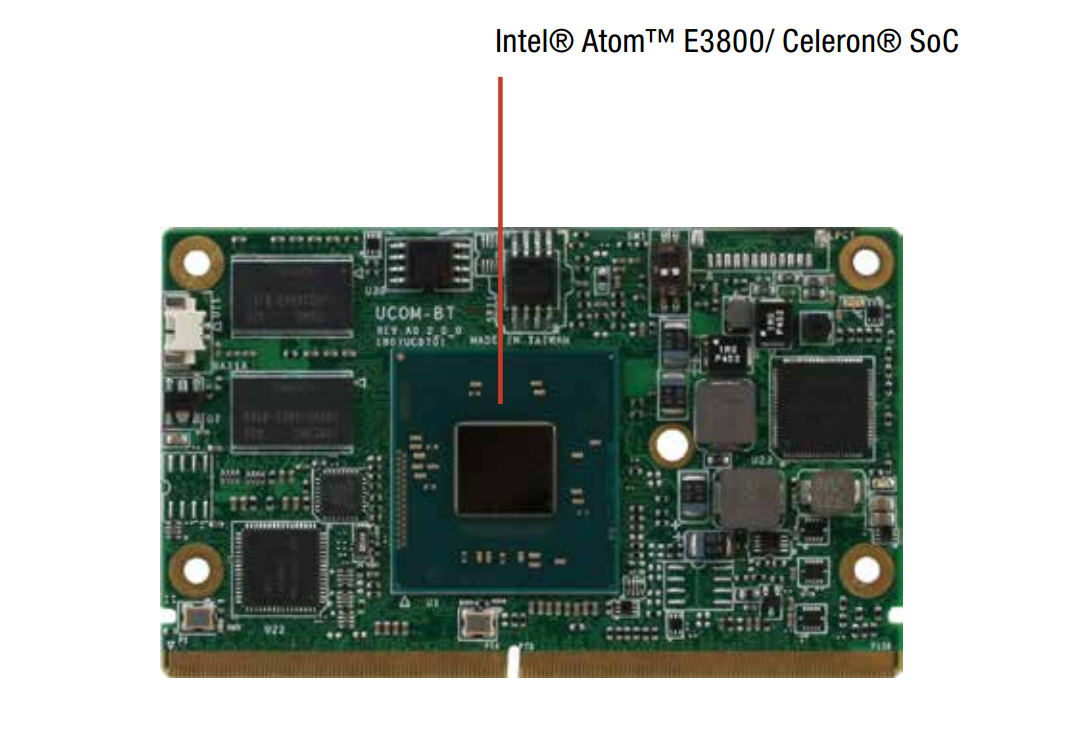

Featuring the SMARC (Smart Mobility Architecture) form factor, the small size of the μCOM-BT, which measures 82 x 50mm, is most ideal for applications that demands compactness and mobility. The board’s exhaustive functionalities, such as wireless connectivity, expandable I/Os, HD audio, and FHD displays, further facilitate such applications.
| Manuals | |
|---|---|
| uCOM-BT Rev A manual 4th Ed.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| uCOM-BT.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ E3800 Processor SoC |
| Clock Speed | 1.91 GHz |
| Processor Misc. | Intel® Atom™ E3800 Product Family SoC Processor
|
| Memory | |
|---|---|
| RAM | Up to 4GB DDR3L Onboard |
| Primary Flash | up to 16GB onboard eMMC Flash |
| BIOS/ Bootloader | AMI BIOS |
| Primary IO | |
|---|---|
| GPIO | 9x GPIO |
| Disk Interface | 2x SATA II |
| Audio | Intel HD Audio |
| Video Out | LVDS, eDB, HDMI |
| Ethernet | Intel® i211AT Gigabit Ethernet |
| USB | 1x USB 3.0 & 2x USB 2.0 |
| Serial Ports | 2x COM (2-Wire) |
| Secondary IO | |
|---|---|
| Expansion | |
|---|---|
| Bus Expansion | SMARC Spec v1.1 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 |
| SOM Type | Microcontroller SODIMM Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.23" ×1.96" (82mm × 49mm) |
| Dimensions Misc. | Dimension 3.23" x 1.96" (82 x 50 mm) |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Typical Current | 500 mA |
| Max Boot Current | 900 mA |
| Constant Busy Loop Current | 700 mA |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Standard Operating Temperature: 32 °F ~ 140 °F (0 °C ~ 60 °C)
Optional Operating Temperature range: -40 °F ~ 185 °F (-40 °C ~ 80 °C) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| COM-BTA10-S01-R | UCOM-BT-A10-0001, SMARC, N2807 2x 1.58 GHz, 2GB, 2xSATA, 2xCOM, 1xUSB3, 2xUSB2, 1xGbE, HDMI | Call |
| COM-BTA10-S02-R | UCOM-BT-A10-0002, SMARC, E3825 2x 1.33 GHz, 2GB, 8GB eMMC, 2xSATA, 2xCOM, 1xUSB3, 2xUSB2, 1xGbE, HDMI | Call |
| COM-BTA10-S03-R | UCOM-BT-A10-0003, SMARC, E3845 4x1.91GHz, 4GB, 16GB eMMC, 2xSATA, 2xCOM, 1xUSB3, 2xUSB2, 1xGbE, HDMI | Call |
