SoM-DB4400

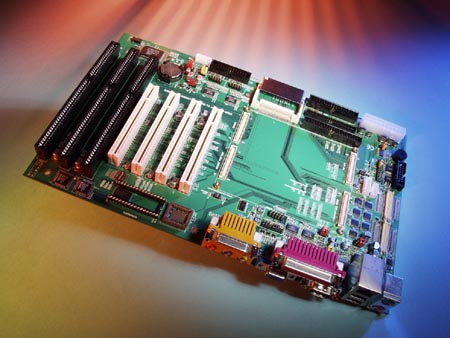

15spi411SS43 The SoM-DB4400 is versatile SoM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all ETX type SOMs. The SoM-DB4400 provides access to all the SoM's I/O through on-board connectors.
Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the SoM-DB4400 when coupled with a ETX SoM makes for a nice ATX compatible embedded PC.
Features
- Standard ATX form factor (7.5" x 12.0")
- 10/100 BaseT Ethernet with on-board Magnetics and RJ45
- 1 serial RS232 port and 1 RS232/485 port
- Keyboard/Mouse connectors
- 2 channels of USB
- 4 PCI Slots
- 3 ISA Slots
- DB15 Video connector and LCD connector
- DB25 Parallel Port connector
- Audio Jacks
- Compact Flash socket
- Floppy and IDE connectors
- On-board Standard PC speaker
- ATX power connector
Overview
The SoM-DB4400 is versatile SoM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all ETX type SOMs. The SoM-DB4400 provides access to all the SoM's I/O through on-board connectors.
Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the SoM-DB4400 when coupled with a ETX SoM makes for a nice ATX compatible embedded PC.
When a unique Custom Carrier Board is required, the amount of design work required is greatly minimized by the SoM approach. The custom Carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O and dimensional aspects required for the application.
In situations where a custom Carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized. Using COS, the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.
| Manuals | |
|---|---|
| SOM-DB4400_Manual.PDF | Download (PDF) |
| Data Sheets | |
|---|---|
| SOM-DB4400ds.pdf | Download (PDF) |
Specifications
| Primary IO | |
|---|---|
| Ethernet | 10/100 BaseT Ethernet with on-board Magnetics and RJ45 |
| Serial Ports | 2x Serial Ports (1x RS232/485, 1x RS232) |
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Misc | |
|---|---|
| SOM Type | ETX Carrier Boards |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 7.5" ×12" (190mm × 304mm) |
| Power Requirements | |
|---|---|
| Power Misc. |
|
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 70 C (158 F) |
| Upper Operating Humidity | 90% |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SoM-DB4400-0 | ETX development carrier board | Call |
